❏ 2
APP.
CKD
DRW
REV:
DISK:
DWG#
PRT:
PCB#
GENERALMUSIC S.p.A. ITALY
ALL RIGHTS ARE RESERVED, NO COPIES
WRITTEN CONSENT BY GENERALMUSIC.
OR REPRODUCE THIS DOCUMENT WITHOUT
BOCCATO
VITRI
MORBIDI
500932
1/1
21/12/00
PRP6
OPENING INSTRUCTIONS
pRP6 Opening Instructions

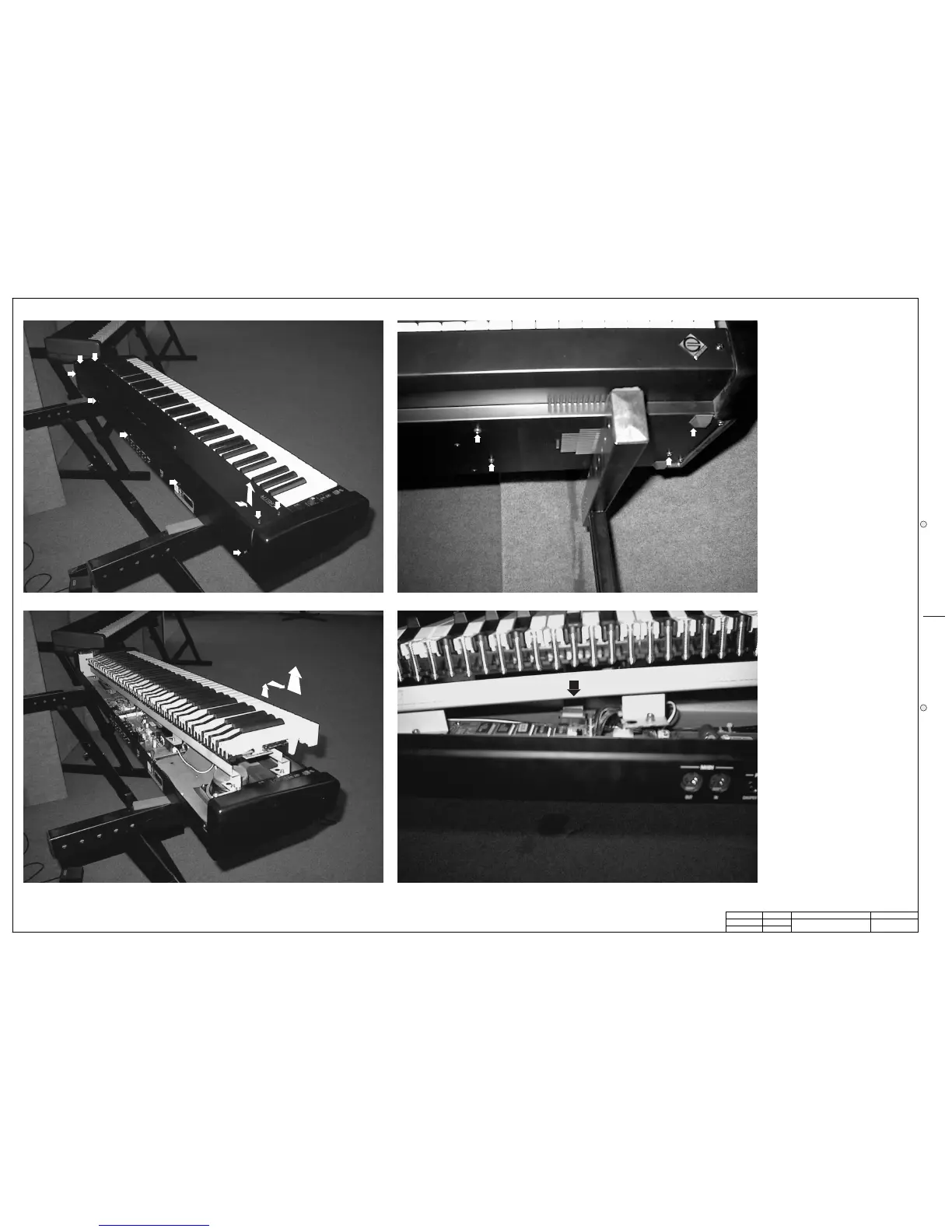

Fig.1 Unscrew the 9 fixing screws (A) and move the front panel towards you and lift it up . Fig.2 To remove the keyboard unscrew the 10 fixing screws (B) underneath it.
Fig.3 To remove the keyboard lift it up some centimeters from the left end only, shift it to the left how it is suf-
ficient to free the right side and extract it entirely. Note: The attraction of the speaker magnetic core can cause
some difficulty.
Fig.4 BE CAREFUL: disconnect the keyboard cable (C) without forcing it when you remove the keyboard, to
connect the keyboard out of the chassis is needed a longest cable (GM ordering code 840532).
A
A
A
A
A
A
A
A
A
B
B
B
B
C
