Accessing the EHS6T-LAN http web interface
After powering-up the device, connect an Ethernet cable between the EHS6T-LAN & PC.
The EHS6T-LAN Ethernet interface functions as a DHCP server.
The PC Ethernet LAN port should be configured as a DHCP client.
Browse to the address http://192.168.1.1 using any web-browser
When prompted, enter the password: admin (‘User’ should automatically be set as: root )

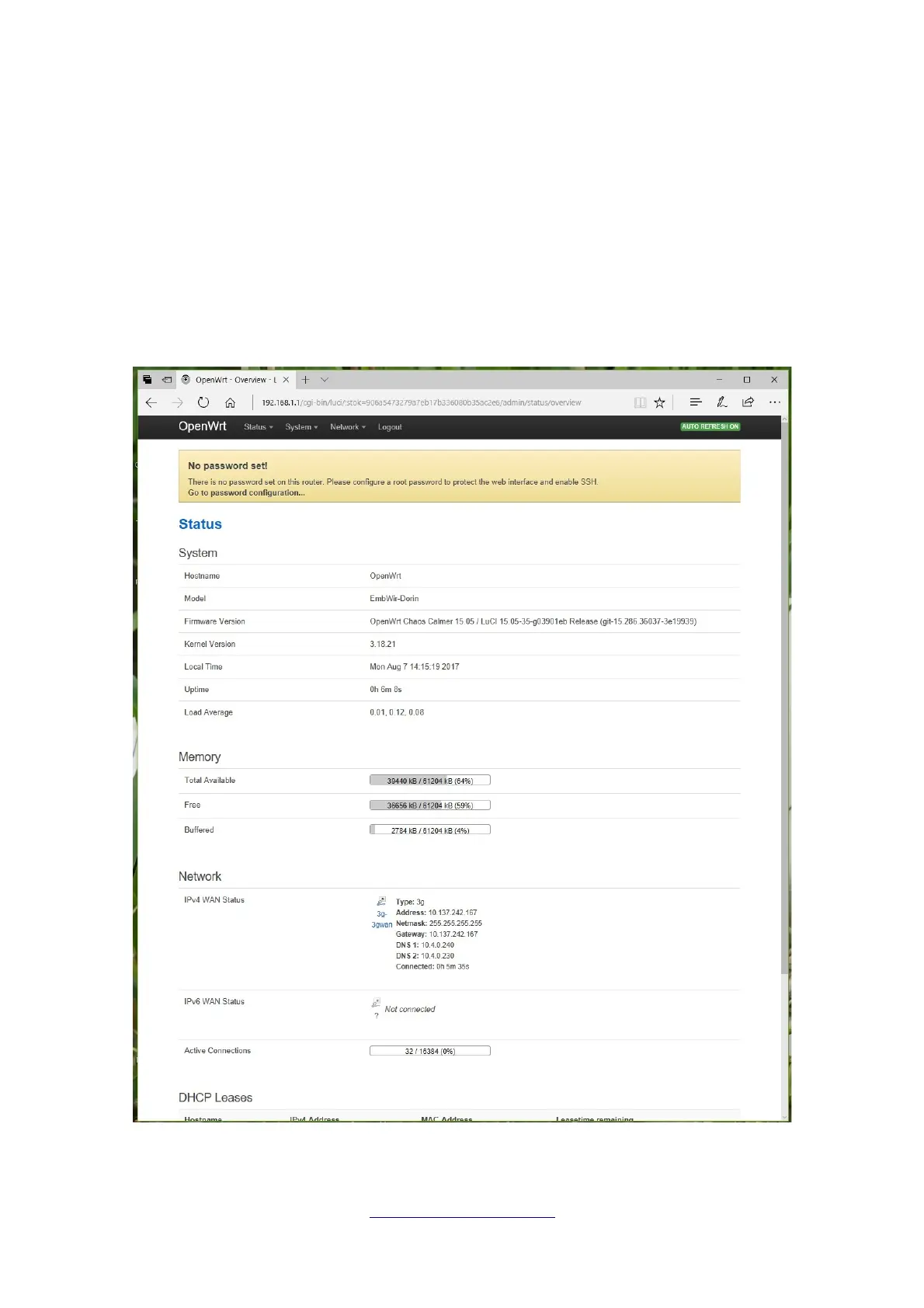

The next page displayed will be the Initial Status Page, as below
Along the top of the page, after the title ‘Open-Wrt’ are the main menu headings.
Page: 2 www.m2mconnect.co.uk M2M Connect Ltd
