3 – COMMISSIONING - USE
• Review the electrical and water installation. Be sure to follow the assembly instructions written above
correctly. If there is no deficiency or error, you can start the commissioning process.
• Open the water inlet and water outlet valves, turn off the bypass valve. Make sure there are no water
leaks in the valves and the chamber.
• Make sure that phase, neutral and ground wires are properly connected. Remember, the device will
work with the pump and shut down with the pump. Open the residual current relay/fuse. Check the
supply terminals with the control pen or gauge.
• Turn on the device using the on / off switch at the bottom of the device. The control screen on the
front of the device will be energized. There will be a closed mode screen on the control screen.
• The generator will work at the factory settings. If you want to change these settings, you can make
the necessary changes with the help of the user guide.
3.1. Control Panel and Settings

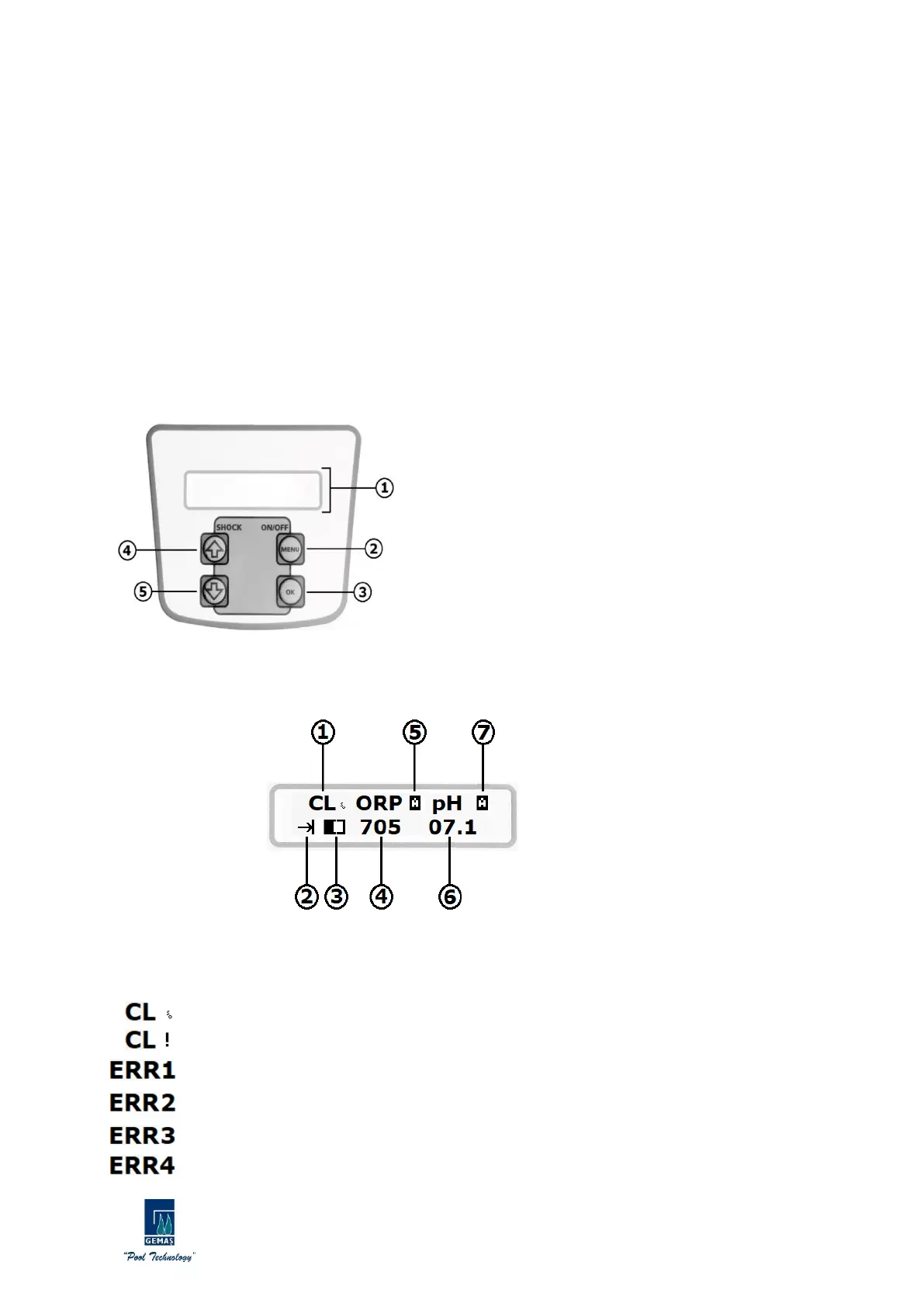

1 - 2x16 LCD screen; information and warnings about the
device are displayed.
2 - The device performs the functions of ON / OFF (switching on
/ off), entering the setting menu (the device is turned off,
pressed for 3 seconds when it is OFF), and exit the pages and
parameters in the setting menu.
3 - Selection of the pages and parameters in the setting menu,
performs the functions of confirming and saving the set
parameters.
4 - In the settings menu, it performs the functions of passing to
the next page or parameter and increasing the parameter
values.
5 - In the settings menu, it performs the functions of switching to a sub-page or parameter and decreasing
parameter values.
3.1.1. Control Panel Operation Screen Icons and Values
1 - Failure and Warning Part Related to Cl Production: This section shows errors and warnings affecting Cl
production. By pressing the OK button once, the instantaneous current value drawn during production is
displayed. Detailed information about faults is described in Fault Codes and Suggested Solutions.
It states that Cl is produced and the salt level is ideal.
It indicates that Cl is produced, but the level of salt is incomplete.
Indicates a malfunction with the electrode cable.
Indicates lime between the electrode plates.
Indicates a short circuit between the electrode cable or electrode plates.
This means that there is a problem with the electronic circuit board, the seller/manufacturer must
be contacted.
