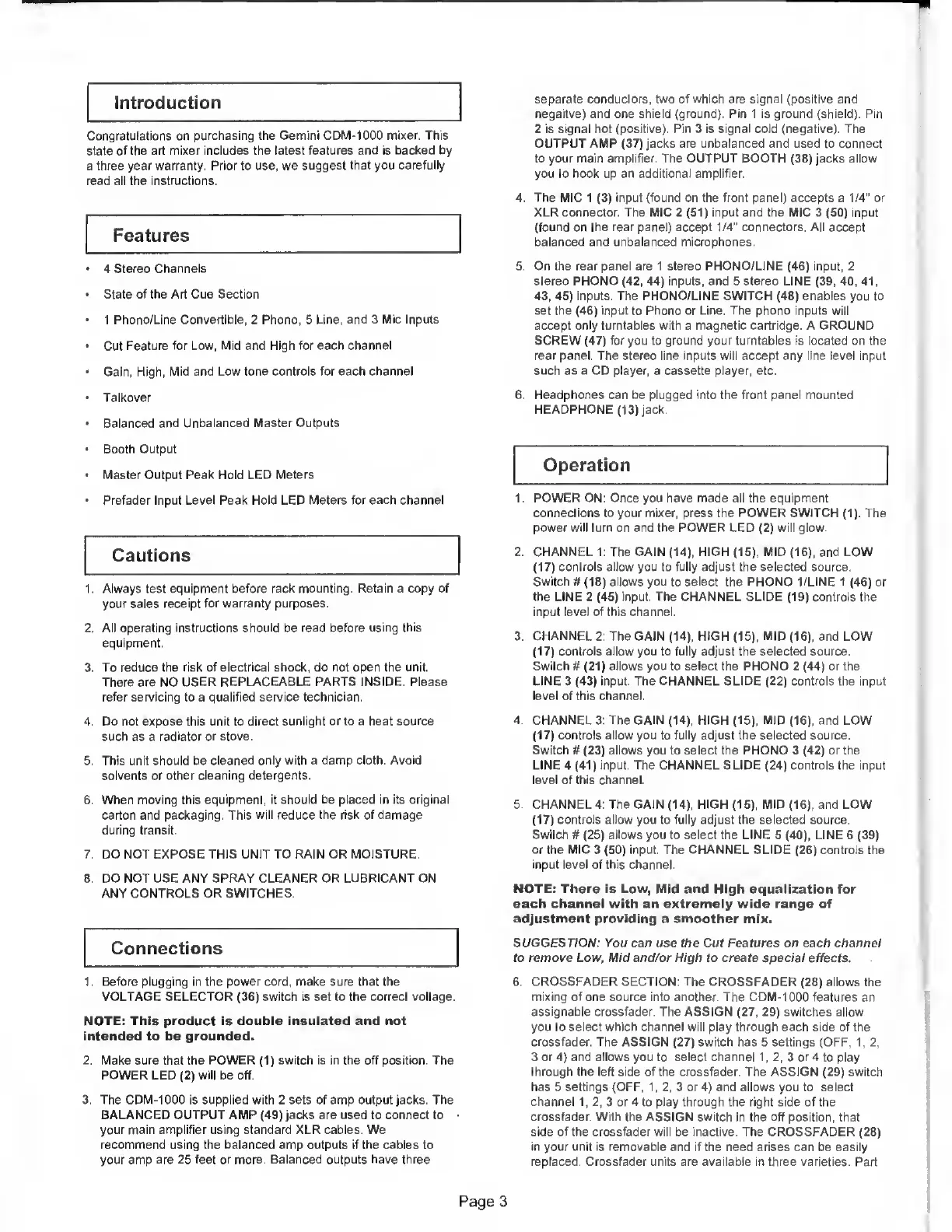

Introduction
Congratulations
on
purchasing
the
Gemini
CDM-1000
mixer.
This
state
of
the
art
mixer
includes
the
latest
features
and
is
backed
by
a
three
year
warranty.
Prior
to
use,
we
suggest
that
you
carefully
read
all
the
instructions.
Features
•
4
Stereo
Channels
•
State
of
the
Art
Cue
Section
•
1
Phono/Line
Convertible,
2
Phono,
5
Line,
and
3
Mic
Inputs
•
Cut
Feature
for
Low,
Mid
and
High
for
each
channel
•
Gain,
High,
Mid
and
Low
tone
controls
for
each
channel
•
Talkover
•
Balanced
and
Unbalanced
Master
Outputs
•
Booth
Output
•
Master
Output
Peak
Hold
LED
Meters
•
Prefader
Input
Level
Peak
Hold
LED
Meters
for
each
channel
Cautions
1.
Always
test
equipment
before
rack
mounting.
Retain
a
copy
of
your
sales
receipt
for
warranty
purposes.
2.
All
operating
instructions
should
be
read
before
using
this
equipment.
3.
To
reduce
the
risk
of
electrical
shock,
do
not
open
the
unit.
There
are
NO
USER
REPLACEABLE
PARTS
INSIDE.
Please
refer
servicing
to
a
qualified
service
technician.
4.
Do
not
expose
this
unit
to
direct
sunlight
or
to
a
heat
source
such
as
a
radiator
or
stove.
5.
This
unit
should
be
cleaned
only
with
a
damp
cloth.
Avoid
solvents
or
other
cleaning
detergents.
6.
When
moving
this
equipment,
it
should
be
placed
in
its
original
carton
and
packaging.
This
will
reduce
the
risk
of
damage
during
transit.
7.
DO
NOT
EXPOSE
THIS
UNIT
TO
RAIN
OR
MOISTURE.
8.
DO
NOT
USE
ANY
SPRAY
CLEANER
OR
LUBRICANT
ON
ANY
CONTROLS
OR
SWITCHES.
Connections
1.
Before
plugging
in
the
power
cord,
make
sure
that
the
VOLTAGE
SELECTOR
(36)
switch
is
set
to
the
correct
voltage.
NOTE:
This
product
is
double
insulated
and
not
intended
to
be
grounded.
2.
Make
sure
that
the
POWER
(1)
switch
is
in
the
off
position.
The
POWER
LED
(2)
will
be
off.
3.
The
CDM-1000
is
supplied
with
2
sets
of
amp
output
jacks.
The
BALANCED
OUTPUT
AMP
(49)
jacks
are
used
to
connect
to
your
main
amplifier
using
standard
XLR
cables.
We
recommend
using
the
balanced
amp
outputs
if
the
cables
to
your
amp
are
25
feet
or
more.
Balanced
outputs
have
three
separate
conductors,
two
of
which
are
signal
(positive
and
negaitve)
and
one
shield
(ground).
Pin
1
is
ground
(shield).
Pin
2
is
signal
hot
(positive).
Pin
3
is
signal
cold
(negative).
The
OUTPUT
AMP
(37)
jacks
are
unbalanced
and
used
to
connect
to
your
main
amplifier.
The
OUTPUT
BOOTH
(38)
jacks
allow
you
to
hook
up
an
additional
amplifier.
4.
The
MIC
1
(3)
input
(found
on
the
front
panel)
accepts
a
1/4"
or
XLR
connector.
The
MIC
2
(51)
input
and
the
MIC
3
(50)
input
(found
on
the
rear
panel)
accept
1/4"
connectors.
All
accept
balanced
and
unbalanced
microphones.
5.
On
the
rear
panel
are
1
stereo
PHONO/LINE
(46)
input,
2
stereo
PHONO
(42,
44)
inputs,
and
5
stereo
LINE
(39,
40,
41,
43,
45)
inputs.
The
PHONO/LINE
SWITCH
(48)
enables
you
to
set
the
(46)
input
to
Phono
or
Line.
The
phono
inputs
will
accept
only
turntables
with
a
magnetic
cartridge.
A
GROUND
SCREW
(47)
for
you
to
ground
your
turntables
is
located
on
the
rear
panel.
The
stereo
line
inputs
will
accept
any
line
level
input
such
as
a
CD
player,
a
cassette
player,
etc.
6.
Headphones
can
be
plugged
into
the
front
panel
mounted
HEADPHONE
(13)
jack.
Operation
1.
POWER
ON:
Once
you
have
made
all
the
equipment
connections
to
your
mixer,
press
the
POWER
SWITCH
(1).
The
power
will
turn
on
and
the
POWER
LED
(2)
will
glow.
2.
CHANNEL
1:
The
GAIN
(14),
HIGH
(15),
MID
(16),
and
LOW
(17)
controls
allow
you
to
fully
adjust
the
selected
source.
Switch
#
(18)
allows
you
to
select
the
PHONO
1/LINE
1
(46)
or
the
LINE
2
(45)
input
The
CHANNEL
SLIDE
(19)
controls
the
input
level
of
this
channel.
3.
CHANNEL
2:
The
GAIN
(14),
HIGH
(15),
MID
(16),
and
LOW
(17)
controls
allow
you
to
fully
adjust
the
selected
source.
Switch
#
(21)
allows
you
to
select
the
PHONO
2
(44)
or
the
LINE
3
(43)
input.
The
CHANNEL
SLIDE
(22)
controls
the
input
level
of
this
channel.
4.
CHANNEL
3:
The
GAIN
(14),
HIGH
(15),
MID
(16),
and
LOW
(17)
controls
allow
you
to
fully
adjust
the
selected
source.
Switch
#
(23)
allows
you
to
select
the
PHONO
3
(42)
or
the
LINE
4
(41)
input.
The
CHANNEL
SLIDE
(24)
controls
the
input
level
of
this
channel.
5.
CHANNEL
4:
The
GAIN
(14),
HIGH
(15),
MID
(16),
and
LOW
(17)
controls
allow
you
to
fully
adjust
the
selected
source.
Switch
#
(25)
allows
you
to
select
the
LINE
5
(40),
LINE
6
(39)
or
the
MIC
3
(50)
input.
The
CHANNEL
SLIDE
(26)
controls
the
input
level
of
this
channel.
NOTE:
There
is
Low,
Mid
and
High
equalization
for
each
channel
with
an
extremely
wide
range
of
adjustment
providing
a
smoother
mix.
SUGGESTION:
You
can
use
the
Cut
Features
on
each
channel
to
remove
Low,
Mid
and/or
High
to
create
special
effects.
6.
CROSSFADER
SECTION:
The
CROSSFADER
(28)
allows
the
mixing
of
one
source
into
another.
The
CDM-1000
features
an
assignable
crossfader.
The
ASSIGN
(27,
29)
switches
allow
you
to
select
which
channel
will
play
through
each
side
of
the
crossfader.
The
ASSIGN
(27)
switch
has
5
settings
(OFF,
1,
2,
3
or
4)
and
allows
you
to
select
channel
1,
2,
3
or
4
to
play
through
the
left
side
of
the
crossfader.
The
ASSIGN
(29)
switch
has
5
settings
(OFF,
1,
2,
3
or
4)
and
allows
you
to
select
channel
1,
2,
3
or
4
to
play
through
the
right
side
of
the
crossfader.
With
the
ASSIGN
switch
in
the
off
position,
that
side
of
the
crossfader
will
be
inactive.
The
CROSSFADER
(28)
in
your
unit
is
removable
and
if
the
need
arises
can
be
easily
replaced.
Crossfader
units
are
available
in
three
varieties.
Part
Page
3
