Gemini UHF-01 Series User Manual

Single
Channel
Dual
Channel
Front
Front
Rear
Rear
1. Connect one end of supplied 6.35 mm audio cable into the AF OUT jack on
rear panel of the receiver. Connect the other end of the audio cable into “MIC
IN” or “AUX IN” of amplifier or mixer.
2. Connect DC plug of supplied AC/DC adapter to DC INPUT jack on rear panel
of the receiver. Connect AC plug of AC/DC adapter to mains power socket.
3. Press ON/OFF button on front panel to turn on the receiver.
4. Turn on the transmitter. RF indicator on receiver will light.
5. Adjust receiver volume and your amplifier or mixer volume to suitable level.

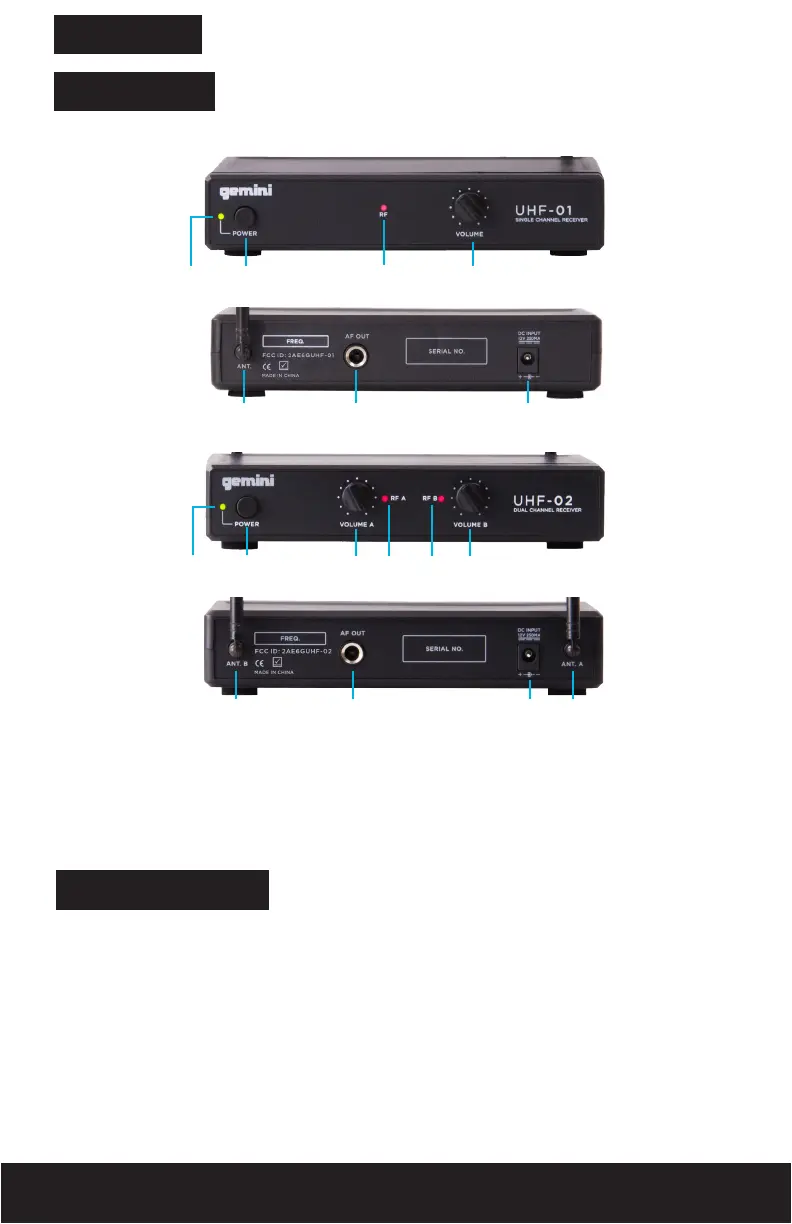

1. Power Indicator
2. ON/OFF Switch
3. RF Indicator(s)
4. Volume Control(s)
Antenna
1/4” Unbalanced Output Jack
DC Input Jack
5.
6.
7.
1
1
2
2
3
3 3
4
4 4
5
5 5
6
6
7
7
RECEIVER
ENGLISH
OPERATION
PARTS DESCRIPTION
UHF-01/02 manual • geminisound.com
6

Gemini UHF-01 Series Specifications

General

Brand	Gemini
Model	UHF-01 Series
Category	Microphone
Language	English
