We reserve the right to modify the characteristics of the equipment supplied without notice or as part of the continued development of our products.
7
HYDRAULIC CONNECTIONS FOR CYLINDERS
When the system installed is “Unvented” it is necessary to fit the “unvented kit” on the cold
water supply. The “Unvented kit” contains pressure reducing valve, non-return valve, pressure
relief valve and optional use balanced cold water connector. It is good practice to fit the
“unvented kit” above the top level of the EBS tank. In this way if it is required to replace the
“unvented kit” it is not necessary to drain all tank. Please find below how to install the
“unvented kit”

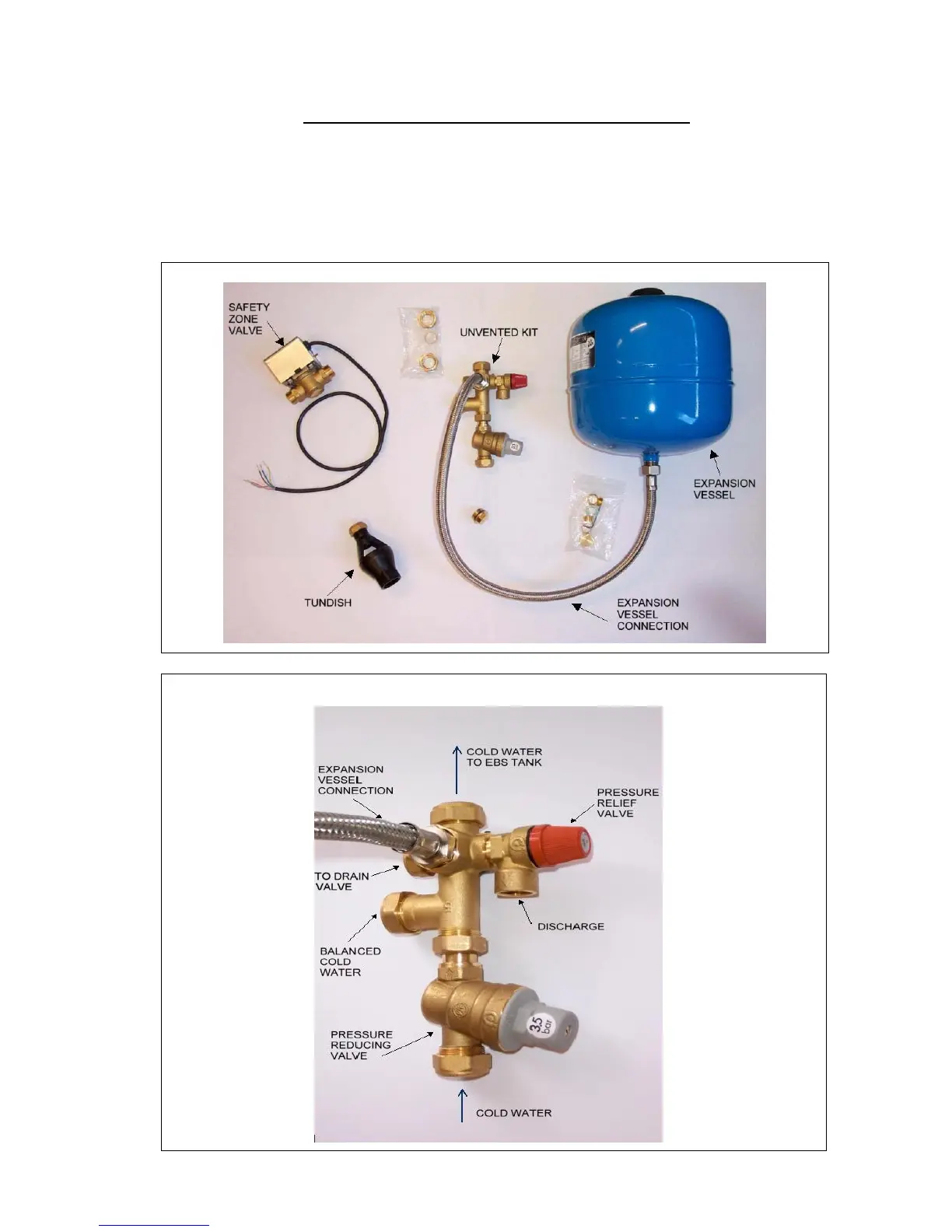

Fig. 1 ¾” Unvented kit for EBS cylinders
Fig. 2 ¾” Unvented kit for EBS cylinders
