We reserve the right to modify the characteristics of the equipment supplied without notice or as part of the continued development of our products.
18

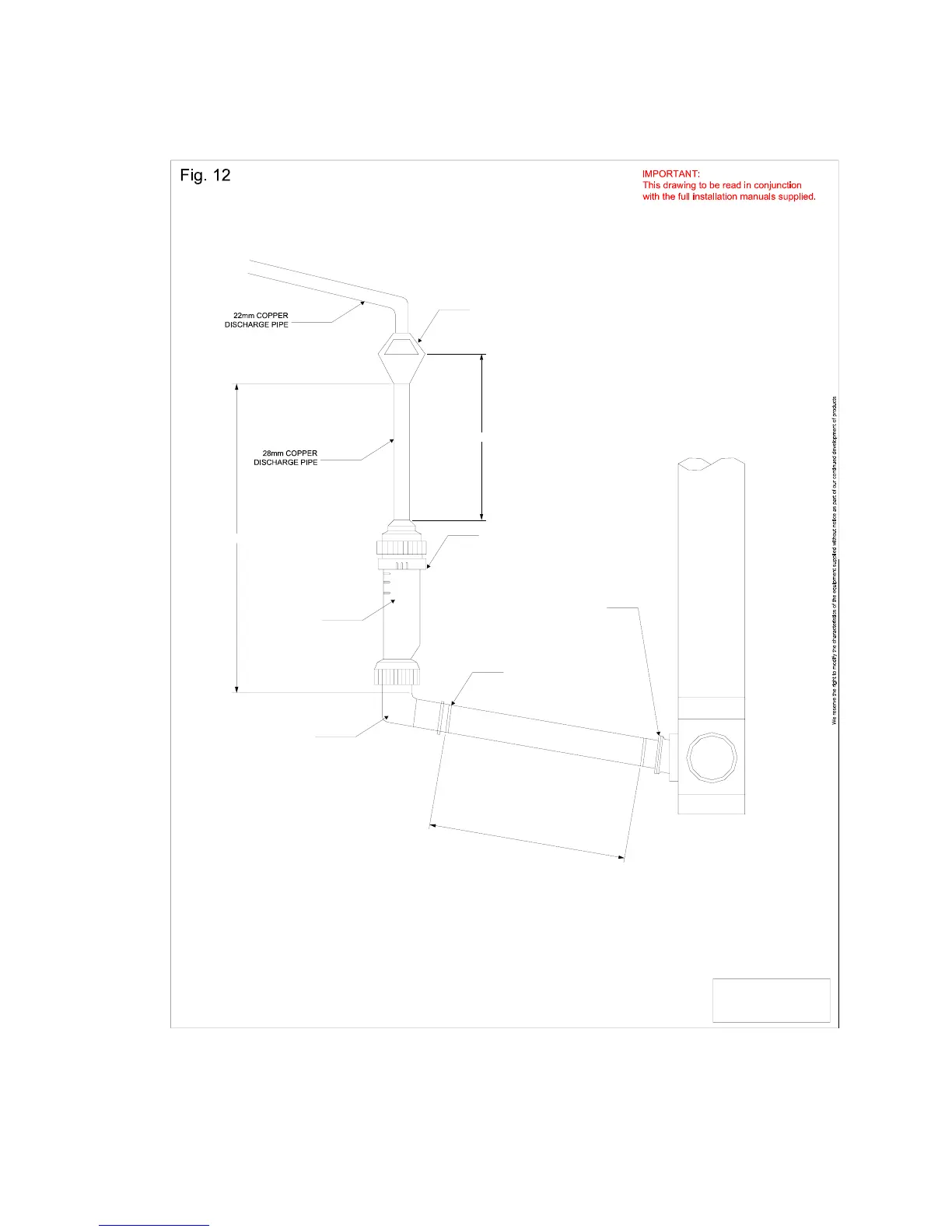

NOTE:
THIS DETAIL IS ONLY TO BE USED WHERE THERE
IS NO OTHER ALTERNATIVE. IT IS STRICTLY
SUBJECT TO LOCAL DISPENSATION AND
APPROVAL MUST BE SOUGHT FROM NHBC AND
BUILDING CONTROL INSPECTOR PRIOR TO
INSTALLATION
300 mm minimum from Tundish to Bend (Building Regulations requirements)
200 mm minimum height above HepvO Valve
300 mm between pipe cli
ps
PIPE CLIP TO BE POSITIONED
CLOSE TO VALVE TO PROVIDE
ADDITIONAL SUPPORT
WASTE TYPICALLY DISCHARGED
TO SOIL STACK THROUGH BOSS
ADAPTER
HepvO VALVE MUST BE VERTICAL
AND ADJACENT TO THE WATER
UNIT, TO BE VISIBLE & EASILY
ACCESSIBLE
TUNDISH - VISIBLE POINT OF
DISCHARGE
32mm
POLYPROPYLENE
WASTE PIPE
32mm HepvO
VALVE
SOIL STACK
