6 RS5500 / RS7000E PowerDial Series Portable Generators

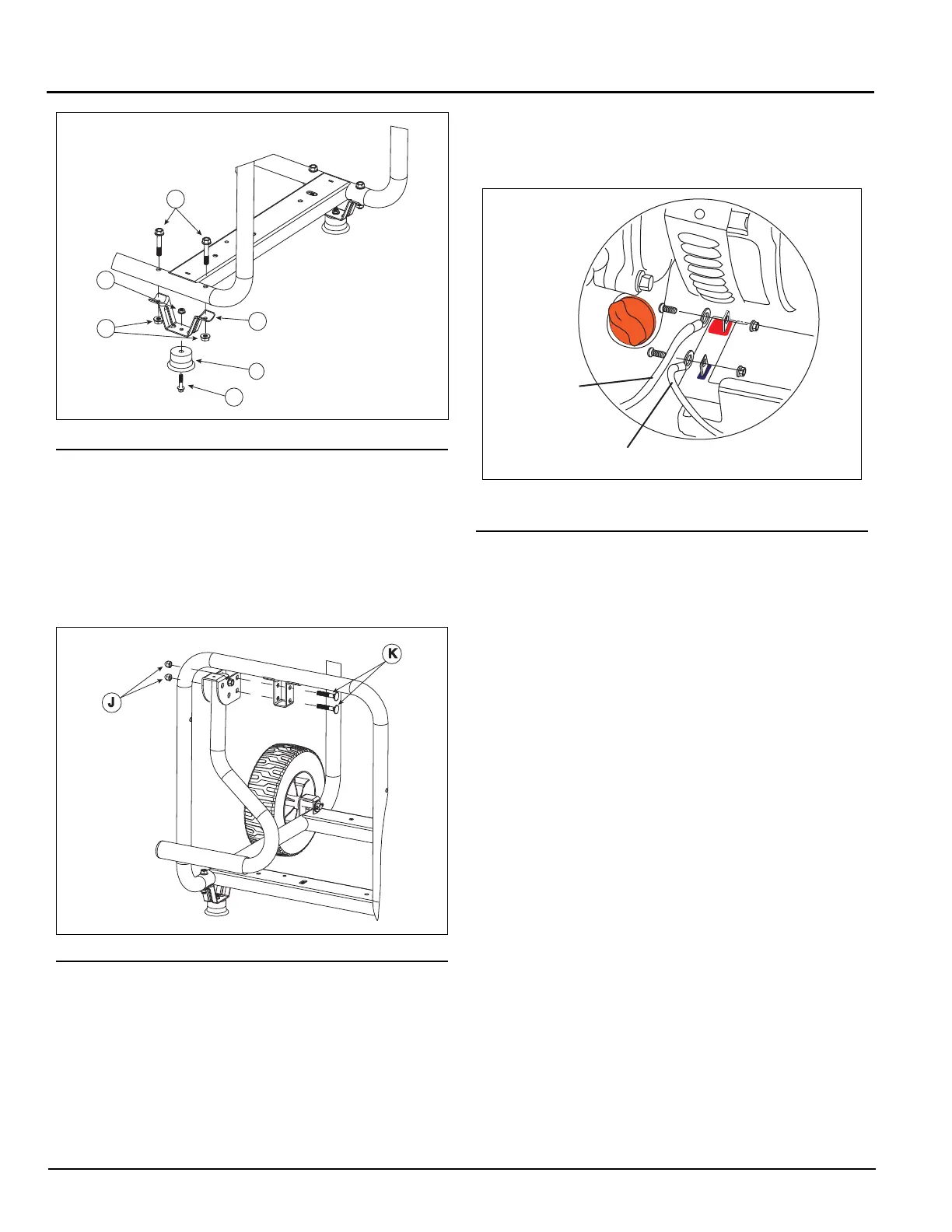

Figure 2-2. Frame Foot Assemblies
2.2.4 — Installing Handle
1. Place the handle over the frame tabs as shown. (Fig-
ure 2-3).
2. Slide Carriage Bolts M8 (K) through the handle
brackets and tabs.
3. Place a nut (J) on each Carriage Bolt (K) and tighten
securely using a ratchet and a 13 mm socket.
Figure 2-3. Handle
2.2.5 — Battery Cables (7.0kW only)
NOTE:
The battery shipped with the generator has been fully
charged. The positive and negative cables are NOT
connected and must be attached prior to operation.
The NEGATIVE (black) (-) battery cable should:
1. Always be DISCONNECTED FIRST.
2. Always be CONNECTED LAST.
Use two 8 mm wrenches to tighten battery hardware.
Figure 2-4. Battery Connections
(7.0 kW only)
NOTE:
A battery may lose some of its charge when not in
use for prolonged periods of time. If the battery is
unable to crank the engine, plug in the 12V charger
included in the accessory box (see the Charging a
Battery - Section 4: Maintenance). RUNNING THE
GENERATOR DOES NOT CHARGE THE BATTERY.
2.3 — EMISSIONS INFORMATION
Locate the emissions compliance decal on the engine to
determine what standards the generator meets, and to
determine which warranty applies. This generator is certi-
fied to operate on gasoline. The emission control system
includes the following components (if equipped):
• Air Induction System
— Intake Pipe / Manifold
— Air Cleaner
•Fuel System
— Carburetor/Mixer Assembly
— Fuel Regulator
• Ignition System
— Spark Plug
— Ignition Module
• Exhaust System
— Exhaust Manifold
— Muffler
— Pulsed Air Valve
— Catalyst
