High Pressure Washer
KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
Generac 1500PSI High Pressure Washer
Pump Develops high pressure.
Recoil Starter Used for starting the engine man-
ually.
Spray Gun Controls the application of water onto
cleaning surface with trigger device. Includes safety
latch.
Adjustable Nozzle Extension You must attach
this to the spray gun to provide high pressure
stream. Adjustable nozzle allows you to adjust spray
pattern.
Air Cleaner Dry type filter element limits the
amount of dirt and dust that gets in the engine.
High Pressure Outlet Connection for high pres-
sure hose.
Water Inlet Connection for garden hose.
High Pressure Hose Connect one end to water
pump and the other end to spray wand.
Goggles Always use the enclosed goggles or
other eye protection when running your pressure
washer.
Foamer Used to apply detergent. Attaches to the
spray gun.
Primer Bulb Prepares a cold engine for starting.
Automatic Cool Down System Cycles water
through pump when water reaches 140°-145°F.
Warm water will discharge from pump onto
ground. This system prevents internal pump
damage.

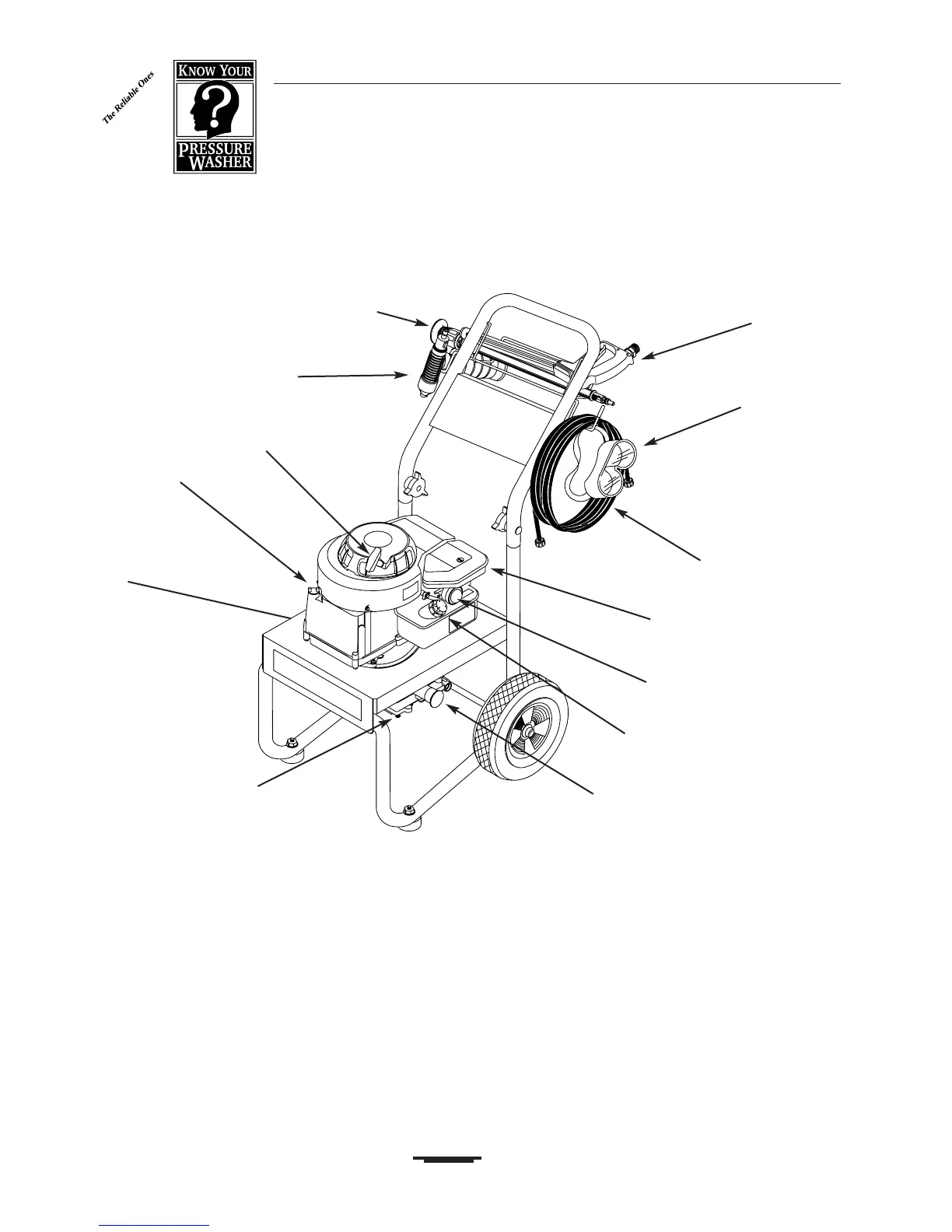

Spray Gun
Adjustable Nozzle Extension
High Pressure Hose
Goggles
Air Cleaner
Primer Bulb
Gas Cap
High Pressure Outlet
Recoil Starter
Foamer
Water Inlet
Oil Fill Cap
Pump equipped with
Automatic Cool Down System
To Next Page
