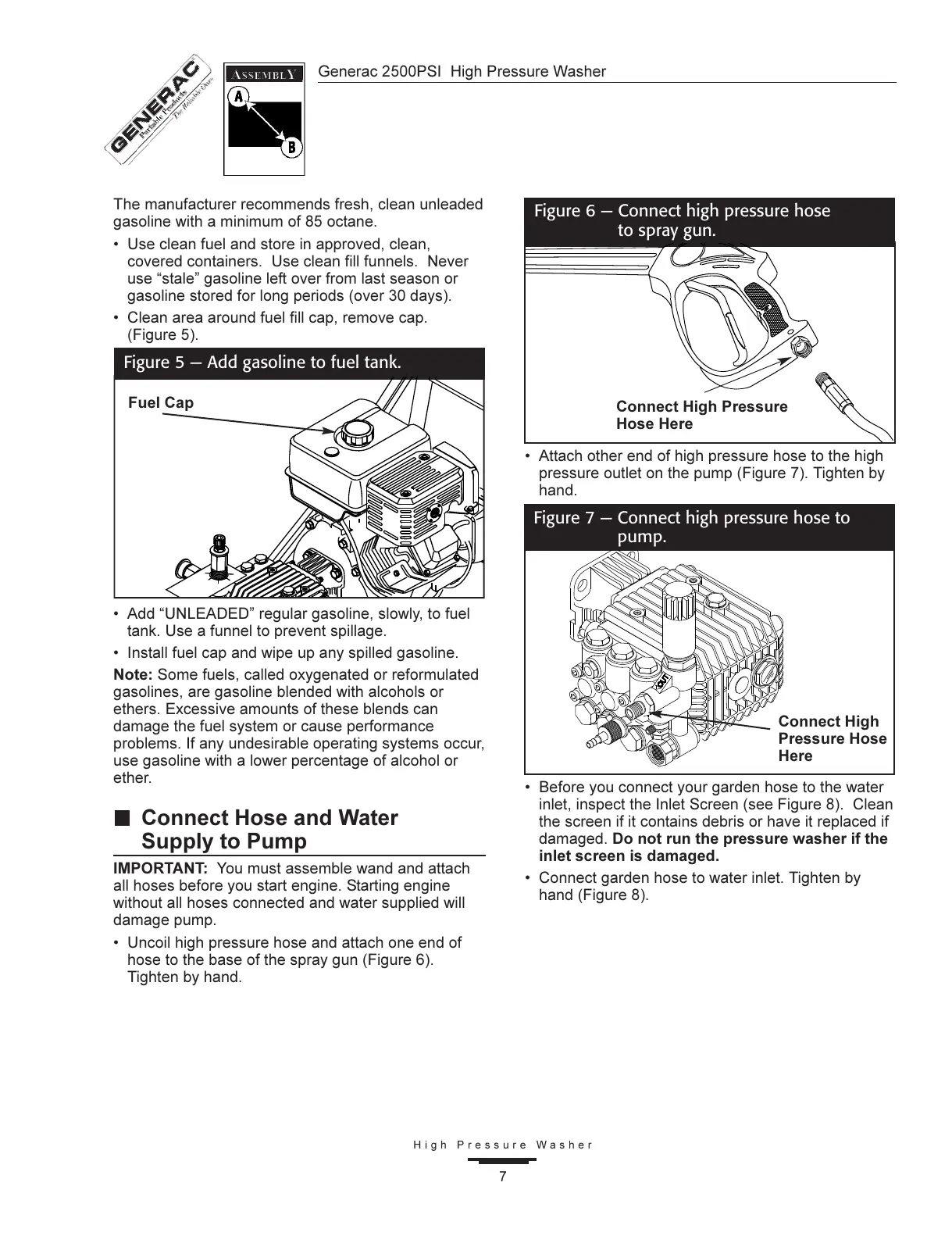

Generac 2500PSI High Pressure Washer
AA
SSSSEEMMBBLL
YY
7
High Pressure Washer
The manufacturer recommends fresh, clean unleaded
gasoline with a minimum of 85 octane.
Use clean fuel and store in approved, clean,
covered containers. Use clean fill funnels. Never
use stale gasoline left over from last season or
gasoline stored for long periods (over 30 days).
Clean area around fuel fill cap, remove cap.
(Figure 5).
Add UNLEADED regular gasoline, slowly, to fuel
tank. Use a funnel to prevent spillage.
Install fuel cap and wipe up any spilled gasoline.
Note: Some fuels, called oxygenated or reformulated
gasolines, are gasoline blended with alcohols or
ethers. Excessive amounts of these blends can
damage the fuel system or cause performance
problems. If any undesirable operating systems occur,
use gasoline with a lower percentage of alcohol or
ether.
Connect Hose and Water
Supply to Pump
IMPORTANT: You must assemble wand and attach
all hoses before you start engine. Starting engine
without all hoses connected and water supplied will
damage pump.
Uncoil high pressure hose and attach one end of
hose to the base of the spray gun (Figure 6).
Tighten by hand.
Attach other end of high pressure hose to the high
pressure outlet on the pump (Figure 7). Tighten by
hand.
Before you connect your garden hose to the water
inlet, inspect the Inlet Screen (see Figure 8). Clean
the screen if it contains debris or have it replaced if
damaged. Do not run the pressure washer if the
inlet screen is damaged.
Connect garden hose to water inlet. Tighten by
hand (Figure 8).
Figure 7 — Connect high pressure hose to
pump.
Figure 6 — Connect high pressure hose
to spray gun.
Figure 5 — Add gasoline to fuel tank.
Fuel Cap
Connect High Pressure
Hose Here
Connect High
Pressure Hose
Here
