Automatic Standby Generator Owner’s Manual 5
Section 2 General Information
2.1 — The Generator

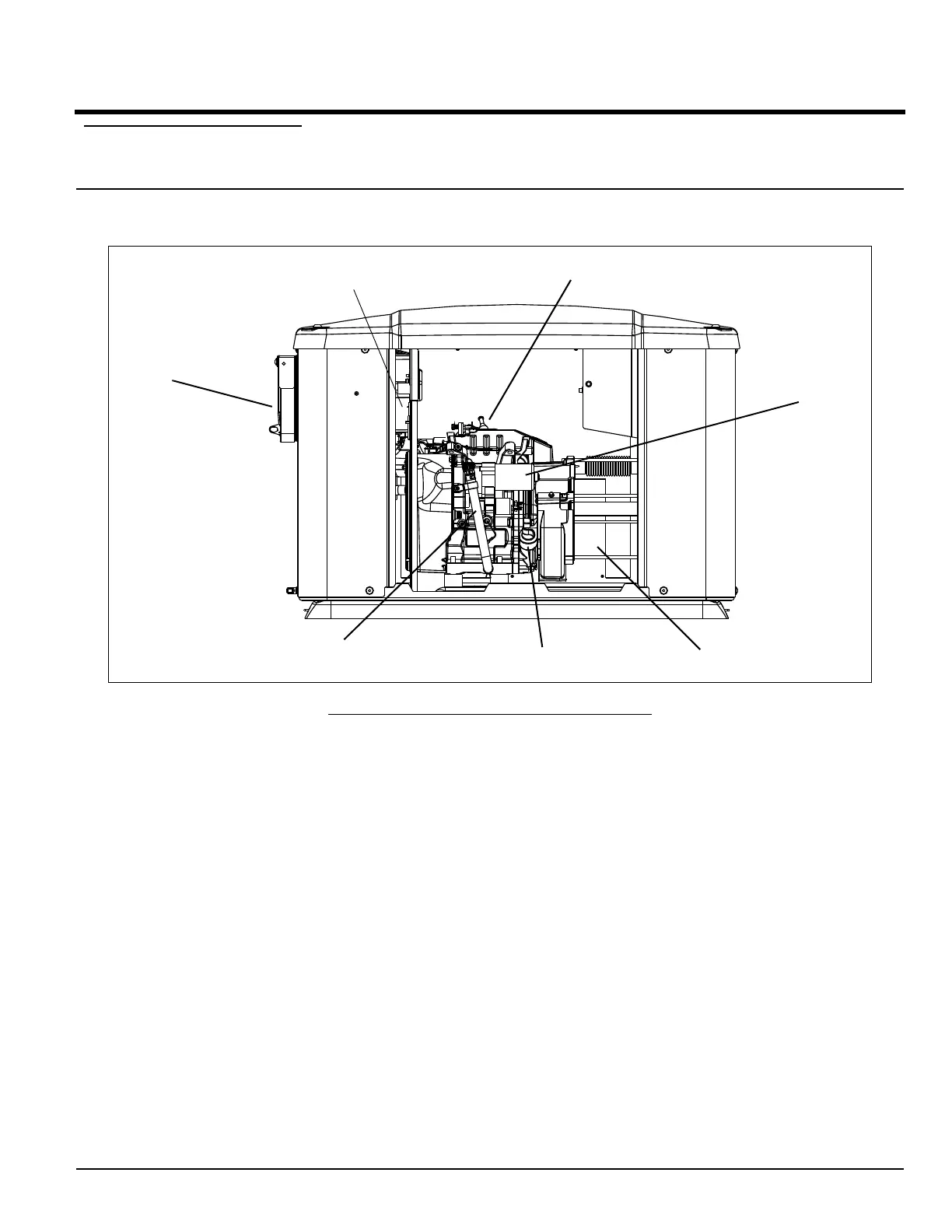

Figure 2-1: GA-420 Engine 7 kW Unit
2.2 — Protection Systems
The generator may have to run for long periods of time with no operator present to monitor the engine/generator conditions. Therefore, the gen-
erator is equipped with a number of systems to automatically shut down the unit to protect it against potentially damaging conditions. Some of
these systems are as follows:
The control panel contains LEDs which alert the operator when a fault condition occurs. For more information about alarms and control panel
operation, see Section 3 Operation.
• Low Oil Level Sensor
• High Temperature Sensor
• Overcrank Detection
• Overspeed Detection
• RPM Sensor
• Underspeed Detection
• Charger Problem Detection
• Battery Problem Detection
• Fuse Problem Detection (missing or failed)
• Wiring Error Detection
Oil Fill/Dipstick
Control Panel/
Circuit Breaker
Spark Plug
Starter Motor
Alternator
Oil Drain Hose
Airbox
