General Information and Setup
Owner’s Manual for Power Washer 5
4. Slowly add recommended fuel. Do not
overfill.
.

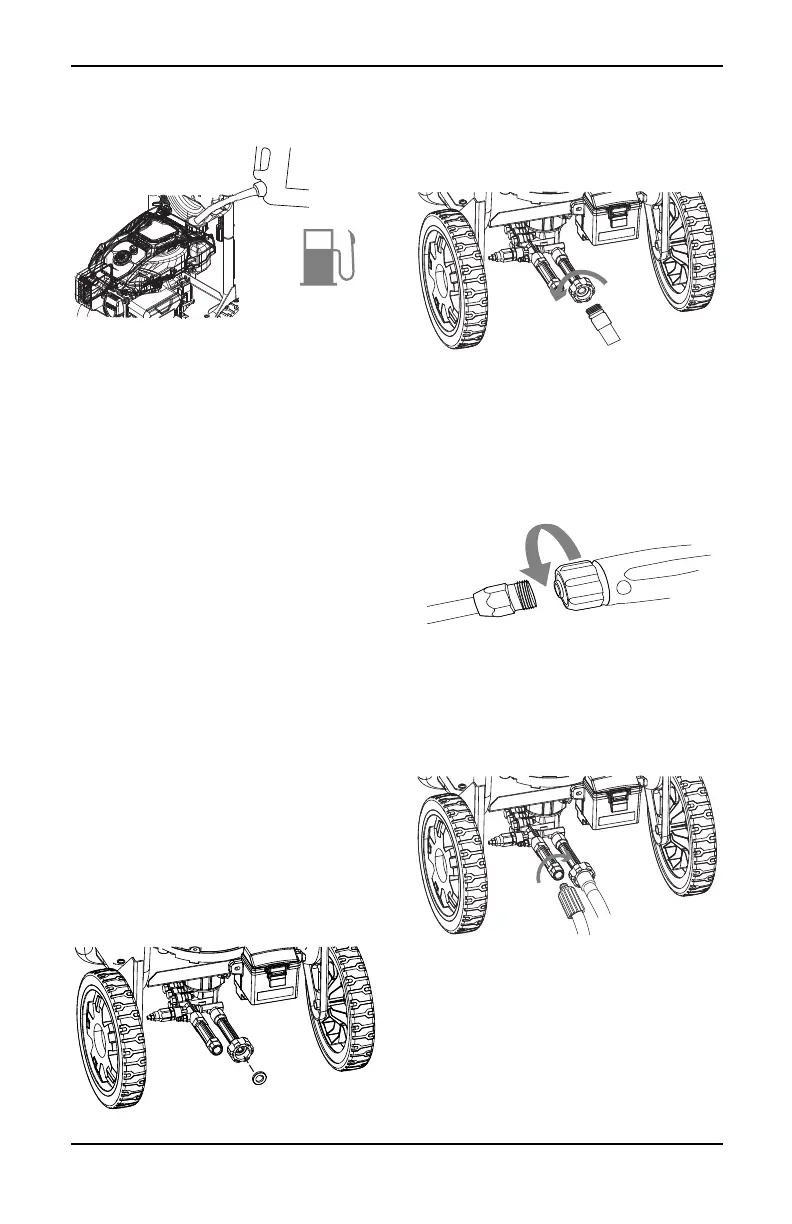

Figure 2-8. Add Recommended Fuel
5. Install fuel cap.
NOTE: Allow spilled fuel to evaporate before
starting unit.
Water Supply
NOTE: DO NOT run unit without sufficient
water supply. Failure to follow water supply
requirements will void unit warranty.
Water supply must meet the following
requirements:
• DO NOT siphon standing water for the
water supply.
• Water temperature must be less than
100°F (38ºC).
• Water supply hose length must not exceed
50 ft (15.2 m).
• Water must be greater than 3.8 gallons per
minute (17.3 liters per minute) and no less
than 30 psi (206.8 kPa).
• DO NOT use a one-way valve, vacuum
breaker, or check valve in any part of the
water supply.
Connect Water Supply
1. Remove and discard shipping cap from
the pump water inlet.
2. Run water supply for 30 seconds prior to
connection to eliminate debris.
3. See Figure 2-9. Inspect inlet screen for
debris. Clean screen or replace as
necessary. DO NOT run power washer if
inlet screen is damaged or missing.
Figure 2-9. Inspect Inlet Screen
4. See Figure 2-10. Connect water supply
hose to pump water inlet and hand-
tighten.
.
Figure 2-10. Connect Water Supply Hose
Connect High-Pressure Hose
and Lance
1. See Figure 2-11. Connect lance to spray
gun and hand-tighten.
Figure 2-11. Connect Lance
2. Place spray gun and nozzle extension into
spray gun holder.
3. See Figure 2-12. Connect high-pressure
hose to pump and hand-tighten.
Figure 2-12. Connect High-Pressure Hose
to Pump
4. See Figure 2-13. Connect high-pressure
hose to base of spray gun and hand-
tighten.
