Generac Power Systems Centurion 004692-0

ITEM PART NO. QTY. DESCRIPTION
1 0D3086 1 BOX GTS LOAD CENTER
2 0D3092 1 COVER, 12 POSITION GTS LOAD CENTER
3 0C2237 1 TRANSFER SWITCH HOME STANDBY
100A2P250V
4 074908 6 SCREW TAPTITE M5-0.8 X 10 BP
5 024912 1 SCREW TAPTITE 1/4-20 X 5/8 BP
6 0A1658 1 LOCK WASHER, SPECIAL-1/4"
7 063617 1 RELAY PANEL 12VDC DPDT 10A@240VAC
8 0D3030 1 BASE, MOUNTING 6 POLE 125A/240V
9 0A1495 4 SCREW TAPTITE M4-0.7X10 BP
10 0A1661 2 RIVET POP .156 X .160-.164/#20
11 022473 1 WASHER FLAT 1/4 ZINC
12 055450 1 PLUG HEYMAN DP1375
(10KW / 12KW / 13KW)
025034 1 PLUG STEEL 1.0625 STMPSN 3811
(14KW / 15KW / 16KW)
13 0D4684 1 HARNESS ADAPTER PLATE
14 0D3319 1 PANEL-SUB BREAKER BASE
15 056326 1 FT TRIM VINYL BLACK 1/8GP
16 022152 6 WASHER LOCK #10
17 087680 1 NUT WING M6-1.0
18 077441 1 HANDLE, TRANSFER SWITCH HOME
STANDBY
19 063378 4 HOLDER CABLE TIE
21 074138 2 LUG DIS QK NI-S 10X45 DEG BR/T
ITEM PART NO. QTY. DESCRIPTION
22 036933 6 SCREW PPHM #10-32 X 3/8"
23 077033 6 LUG SLDLSS 1/0-#14X9/16 AL/CU
24 048850 1 BLOCK TERMINAL 20A 5 X 6 X 1100V
25 028739 4 TIE WRAP 3.9" X .10" NAT'L UL
26 038150 2 WASHER FLAT #8 ZINC
27 0D3191 1 COVER, RELAY & TERM BLOCK
28 0D3088 1 WIRE HARNESS,GTS LOAD CENTER
(NOT SHOWN FOR CLARITY)
29 073591 2 FUSE HOLDER
30 073590A 2 ASSEMBLY FUSE 5A X BUSS HLDR73591
31 040213B 4 PCB SUPPORT SNAP-IN 1-3/8"
32 0C8037 3 CIRCT BRK 20 X 1 HOM120
33 0D3190 1 CIRCT BRK 20 X 2 HOM220
34 0C8036 5 CIRCT BRK 15 X 1 HOM115
35 0C8035 1 CIRCT BRK 30 X 2 HOM230
36 0D3320 1 COVER - HARNESS ENTRY
37 0D3093 1 HARNESS, GTS TO EXT CONN BOX
(10KW / 12KW / 13KW)
0D3926 1 HARNESS, GTS TO EXT CONN BOX
(14KW / 15KW / 16KW)
38 022264 2 WASHER LOCK M4
39 0A7215 4 SCREW SW 1/4-20X5/8 N WA JS500
40 0A2110 4 SCREW SWAGE 1/4-20 X 1/2 ZINC
41 075475 2 SCREW PPHM M4-0.7 X 10
42 0D3094 1 HARNESS,GTS TO MAIN PANEL
30
1
29
23
16
27
9
22
22
21
16
23
24
10
31
7
9
17
18
4
6
11
5
3
2
39
40
4
36
19
25
15
26
38
41
33
32
34
34
35
42
37
12
14
8
13
38 Generac
®
Power Systems, Inc.
Section 8 — Exploded Views and Parts Lists
Air-cooled 8.5 kW Generator

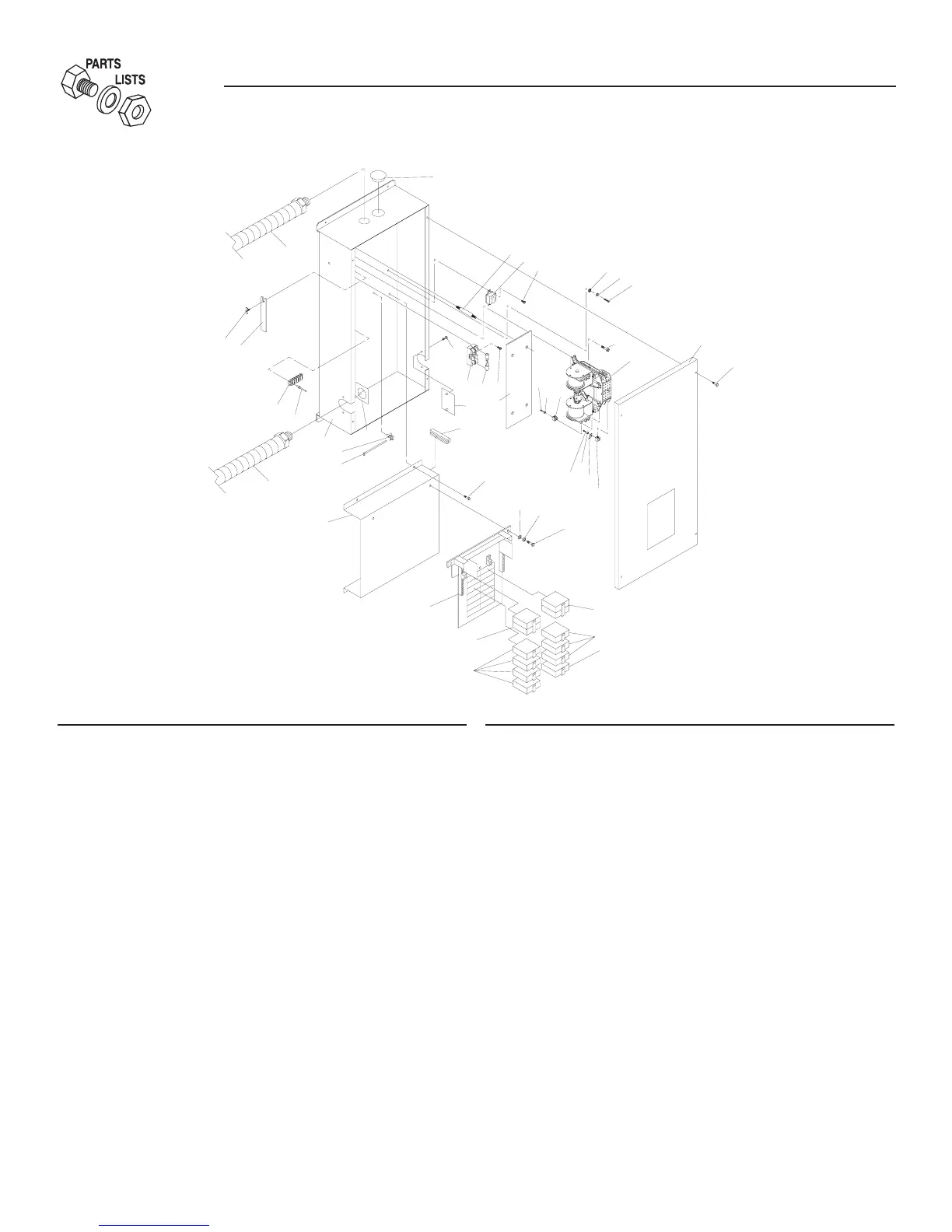

GTS Load Center – Drawing No. 0D3996-C
