2.2.3 120 VAC, 30 AMP RECEPTACLE
Use a NEMA L5-30 plug with this receptacle. Connect a 3-wire
cord set rated for 125 Volts AC at 30 Amps (or greater) to the plug
(Figure 9).
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase
loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps.
The outlet is protected by a 30 Amp push-to-reset circuit breaker.

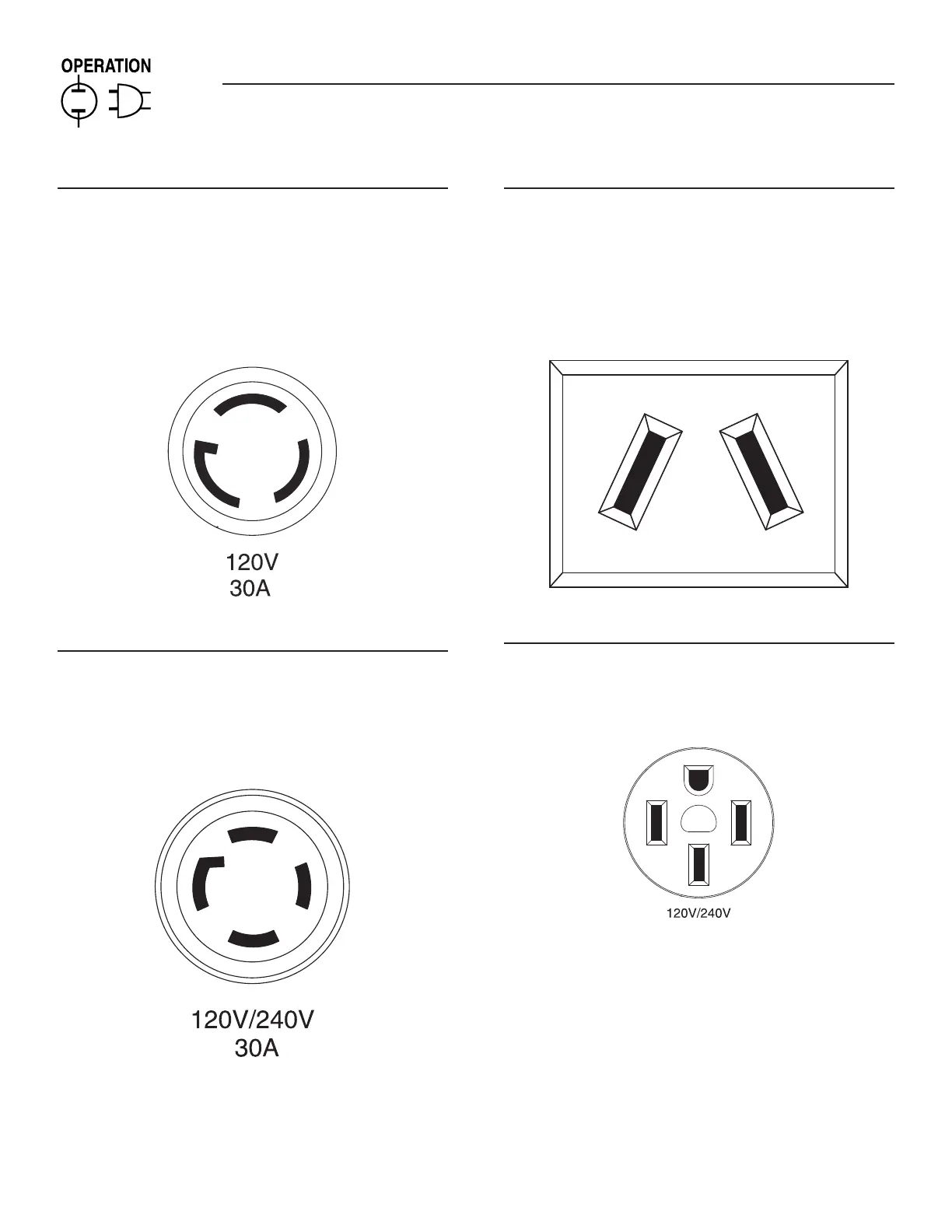

Figure 9 - 120 VAC, 30 Amp Receptacle
2.2.4 120/240 VAC, 30 AMP RECEPTACLE
Use a NEMA L14-30 plug with this receptacle (Figure 10). Connect
a suitable 4-wire grounded cord set to the plug and to the desired
load. The cord set should be rated for 250 Volts AC at 30 Amps
(or greater).
Figure 10 - 120/240 VAC, 30 Amp Receptacle
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase
loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps or
240 Volt AC, 60 Hz, single phase loads requiring up to 7200 watts
(7.2 kW) of power at 30 Amps. The outlet is protected by two 30
Amp push-to-reset circuit breakers.
2.2.5 12 VOLT DC, 10 AMP RECEPTACLE
This receptacle allows you to recharge a 12 Volt automotive or
utility style storage battery with the battery charge cables provided.
This receptacle can not recharge 6 Volt batteries and can not
be used to crank an engine having a discharged battery. See
the section "Charging a Battery" before attempting to recharge a
battery.
Figure 11 - 12 Volt DC, 10 Amp Receptacle
2.2.6 120/240 VOLT AC, 50 AMP RECEPTACLE
Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire
cord set rated for 250 Volts AC at 50 Amps to the plug.
Figure 12 - 120/240 VAC, 50 Amp Receptacle
50 A
Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical
loads requiring up to 12,000 watts (12.0 kW) of power. This
receptacle is protected by a 50 Amp 2-pole circuit breaker.
8
Section 2 – Operation
Portable Generator System
