6.1 USING THE PORTABLE GENERATOR
AND TRANSFER SWITCH
The generator along with the manual transfer switch gives you the
ability to provide power safely and conveniently to vital items in your
home including hard wired items. Included in the kit is a power Inlet
box with built-in 50 Amp twistlock male receptacle and a 15 foot
electrical power cord. The power cord is made up of 4 wires, power
(black & red), neutral (white) and ground (green). At one end is the
50 Amp female receptacle which is inserted and twist-locked into the
power inlet box.
At the other end is the male connector (NEMA 14-50) which plugs into
the portable generator’s control panel and is locked in place by the
supplied spring retainer.
NOTE:
The power inlet box must be locked to ensure safety and to
discourage tampering.
GENERAC
®
POWER SYSTEMS, INC.
POWERFUL: Superior motor-starting
capabilities starts a 5-ton air conditioner
LONG LIFE ENGINE: Full pressure
lubrication and spin-on oil filter
SAFE POWER: Electronic governor, automatic
voltage regulation and automatic idle control
LONG RUN-TIME: 16 gallon fuel tank features
10 hour run-time at half load

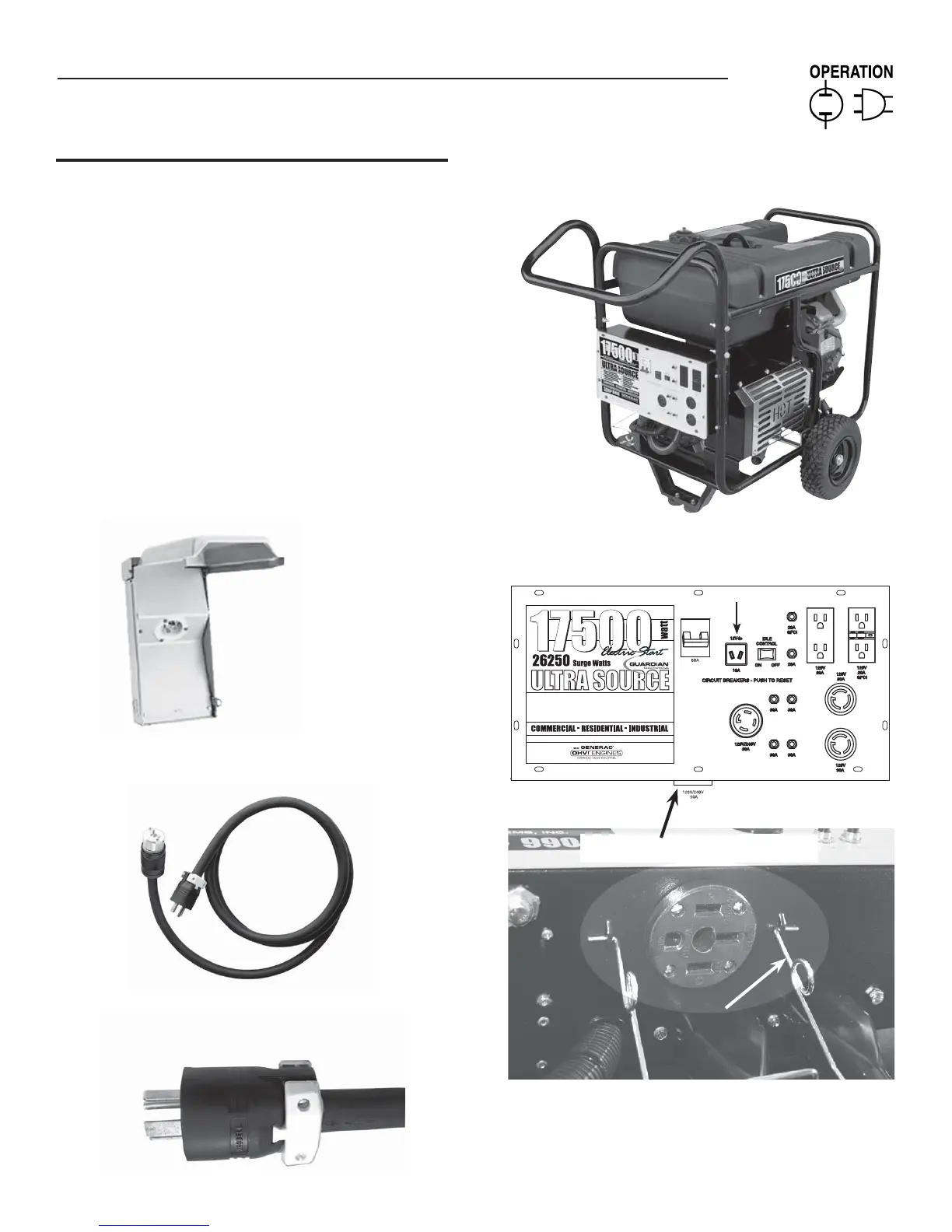

Power Inlet Box
with 50 Amp Male
Receptacle
15 Foot Power Cord with 50 Amp Plug and Receptacle
17,500 Watt Ultra Source Portable Generator
NEMA 14-50, 50 Amp Receptacle
Retaining
Clip
Generator Control Panel
12 Volt DC Receptacle
NEMA 14-50, 50 Amp Plug
Section 6 — Operation of Generator with Manual Transfer Switch
Portable Generator System
23
To Next Page
