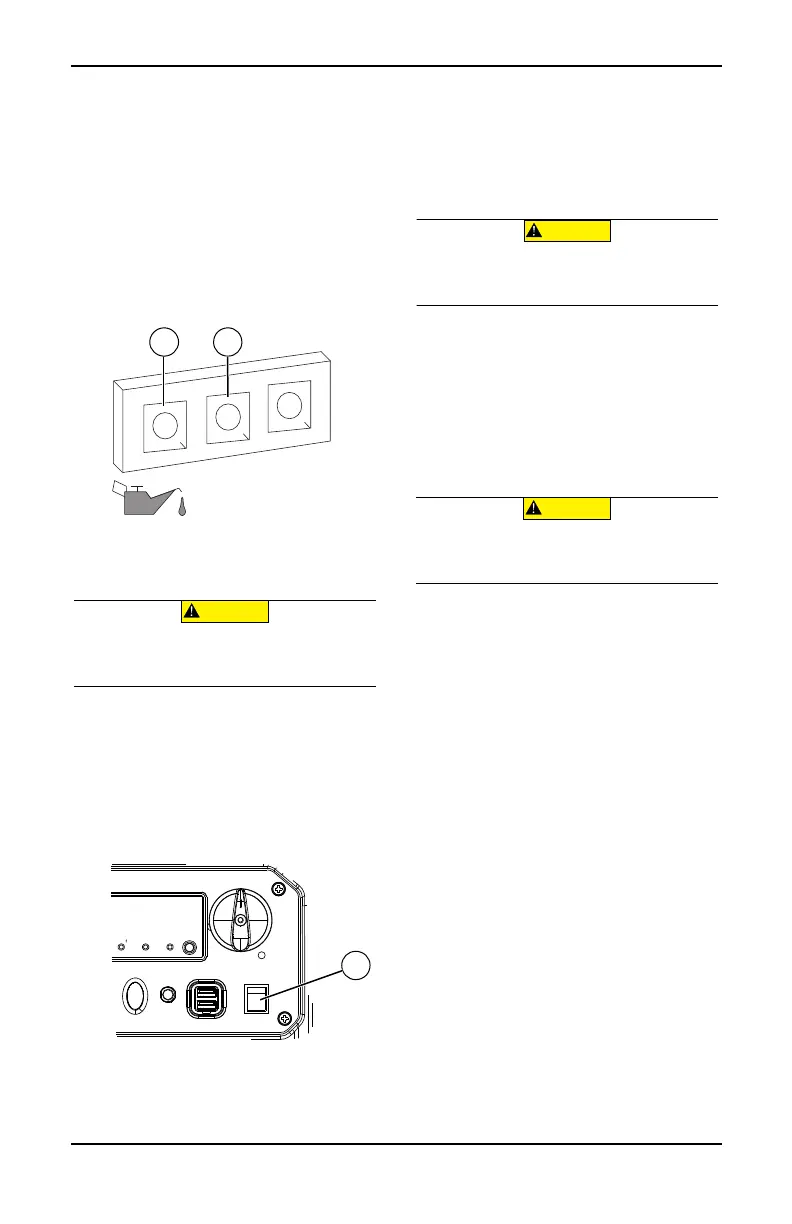

4. See Figure 3-2. When engine starts, rotate
OFF/ON/CHOKE Dial to ON (2). Choke
operation is reduced as OFF/ON/CHOKE
Dial is rotated towards ON.
NOTE: If engine fires, but does not continue to
run, rotate the OFF/ON/CHOKE Dial to OFF
and repeat starting instructions.
IMPORTANT NOTE: Do not overload gener-
ator or individual panel receptacles. See
Figure 3-3. If an overload occurs, the over-
load LED (A) will illuminate and AC output
ceases. To correct, see Generator Status
Lights. Read Know Generator Limits care-
fully.
.
Figure 3-3.Shutdown Fault
Starting Electric Start Engines
1. Unplug all electrical loads from the unit’s
receptacles before starting the engine.
2. Place generator on a level surface.
3. See Figure 3-2. Rotate the OFF/ON/
CHOKE Dial to CHOKE (1).
4. Switch Economy switch to OFF.
5. Push and hold OFF/ON electric start
switch in the ON position. See Figure 3-4
(A). Release switch when engine starts.
Figure 3-4.Push and Hold Off/On Switch
6. See Figure 3-2. When engine starts, rotate
OFF/ON/CHOKE Dial to ON (2). Choke
operation is reduced as OFF/ON/CHOKE
Dial is rotated towards ON.
NOTE: If engine fires, but does not continue to
run, rotate the OFF/ON/CHOKE Dial to OFF
and repeat starting instructions.
Generator Shut Down
1. Shut off all loads and unplug electrical
loads from generator panel receptacles.
2. Let engine run at no-load for several min-
utes to stabilize internal temperatures of
engine and generator.
3. See Figure 3-2 Rotate OFF/ON/CHOKE
Dial to OFF (3).
4. Turn fuel cap OFF.
Starting Hot Engines
1. See Figure 3-2. Turn OFF/ON/CHOKE Dial
from STOP to ON. This will open the fuel
valve and permit starting.
2. Firmly grasp recoil handle and pull slowly
until increased resistance is felt. Pull rap-
idly up and away.
Low Oil Level Shutdown System
The engine is equipped with a low oil level
sensor that shuts down the engine automati-
cally when the oil level drops below a speci-
fied level to prevent engine damage. See
Figure 3-3 (B). The engine will not run until the
oil has been filled to the proper level.
If the engine shuts down and there is sufficient
fuel, check engine oil level.
Parallel Operation
See the Parallel Kit Operator’s Manual or con-
tact an IASD.
NOTE: All connections to the parallel kit
should be made while both inverters are
turned off and all loads disconnected.
1. Make sure the Engine Economy Switch is
in the same position on both generators.
2. Make appropriate parallel connections to
the outlets on each Generac inverter as
outlined in the owner’s manual supplied
with the kit.
NOTE: Do not disconnect any parallel kit con-
nections once the units are running.
OVERLOAD OUTPUT
AB
005483
(000136)
CAUTION
Equipment and property damage. Disconnect
electrical loads prior to starting or stopping unit.
Failure to do so could result in equipment and
property damage.
A
014563
(000136)
CAUTION
Equipment and property damage. Disconnect
electrical loads prior to starting or stopping unit.
Failure to do so could result in equipment and
property damage.
(000136)
CAUTION
Equipment and property damage. Disconnect
electrical loads prior to starting or stopping unit.
Failure to do so could result in equipment and
property damage.

Generac Power Systems iQ3500 Specifications

General

Brand	Generac Power Systems
Model	iQ3500
Category	Portable Generator
Language	English
