General Information
Section 2 General Information
Component Locations

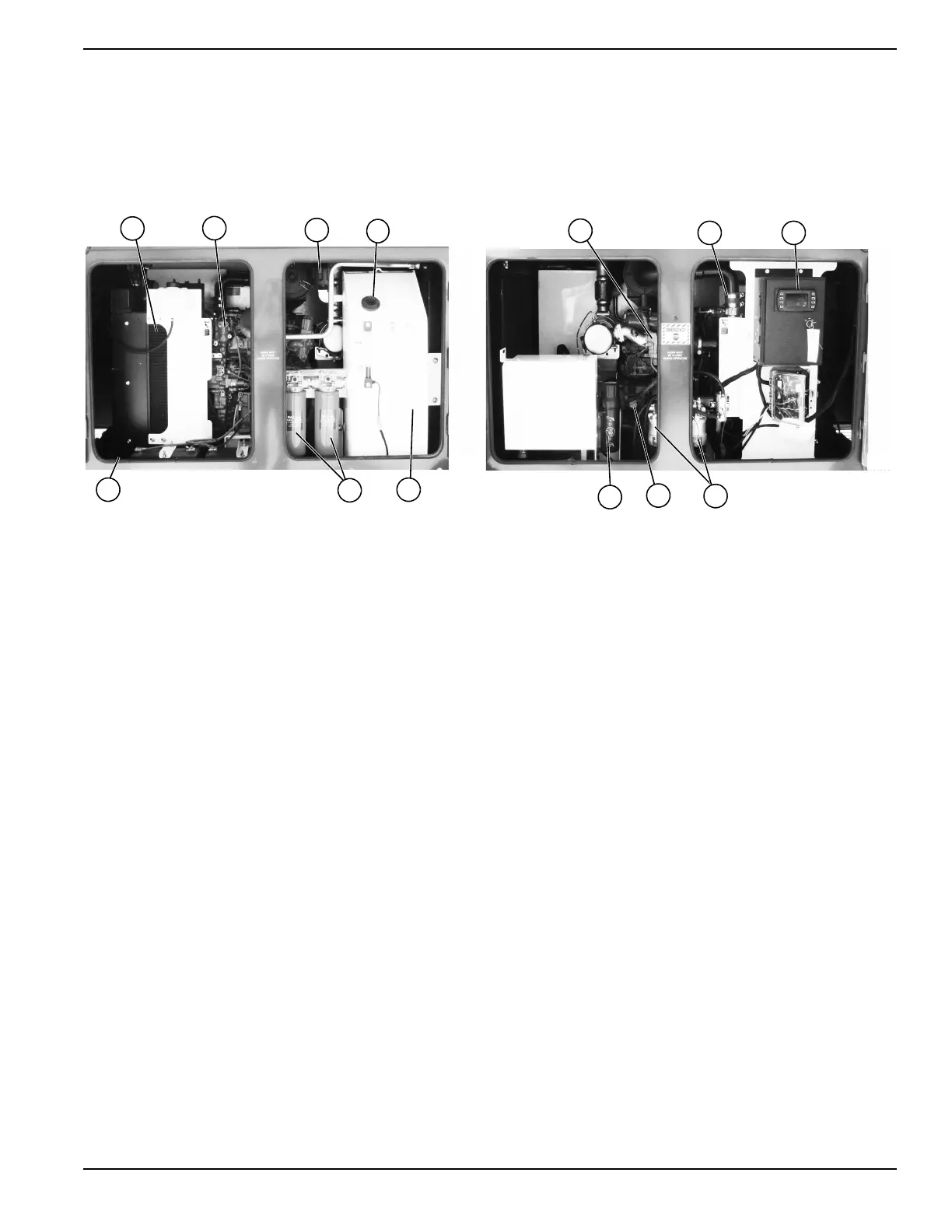

Figure 2-1. Features and Controls
Table 1 - Heater Components
A Engine radiator H Controller
B Breakaway battery for trailer brakes I Manual compartment
C Diesel engine J Diesel engine turbo charger
D Hydraulic fluid filters K Diesel engine oil dipstick
E Hydraulic fluid fill L Engine fuel filters
F Hydraulic fluid reservoir tank M Automatic positive air shutdown
G Hydraulic fluid breather/separator
F
E
K
C
J
B
A
H
G
L
D
I
001574
Left Side
Right Side
001575
M
