PowerBoss 5,500 Watt Storm-Plus Generator
19

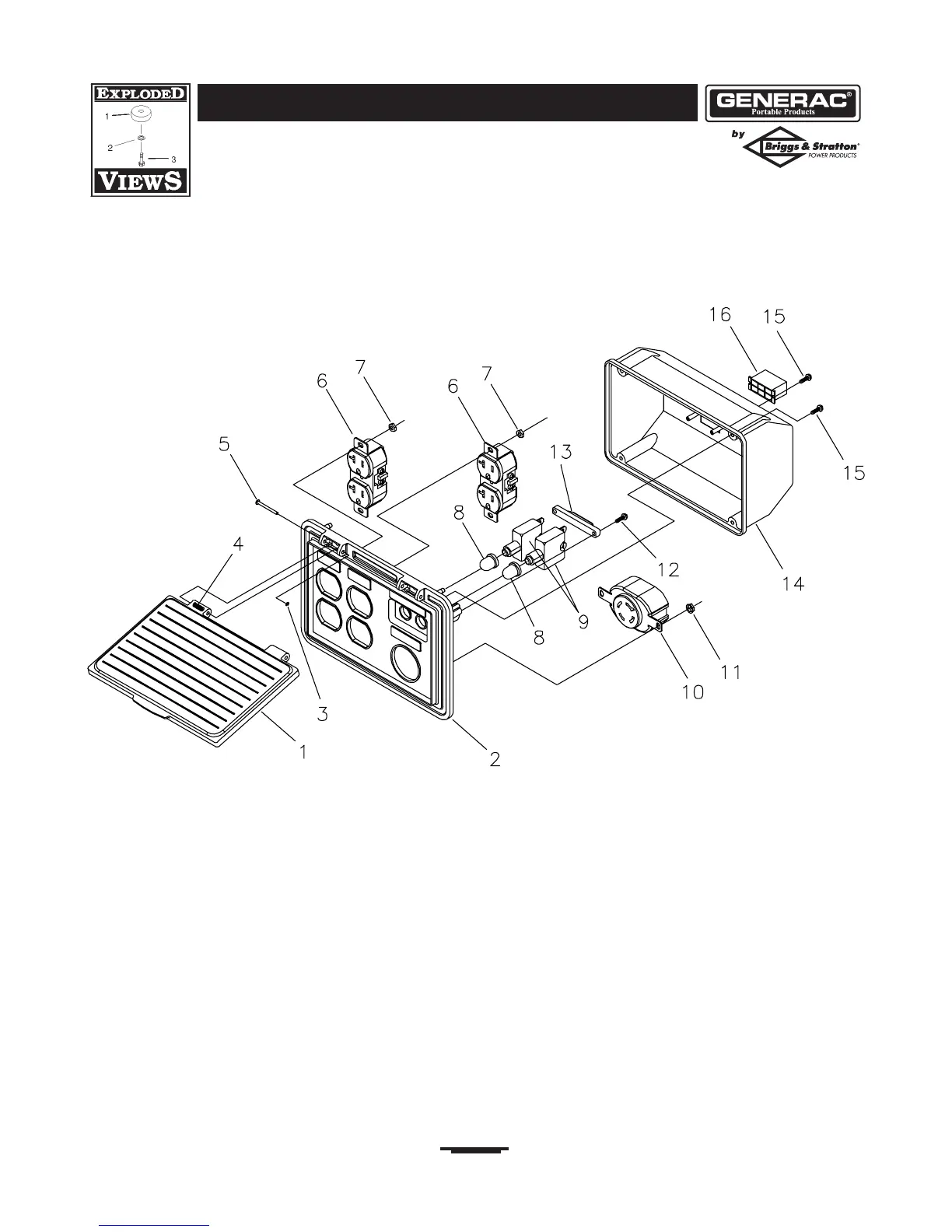

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Qty Description
1 188914GS 1 COVER, Lid, Control Panel
2 188889GS 1 CONTROL PANEL, Compact
3 189167GS 2 CLIP, Pin Retainer
4 189182GS 2 SPRING, Hinge
5 189166GS 2 PIN, Hinge
6 68759GS 2 OUTLET, 120 V, 20 A
7 189165GS 4 NUT, Push
8 84198GS 2 CAP, Circuit Breaker
9 75207GS 2 BREAKER, Circuit
10 43437GS 1 OUTLET, 120/240 V Locking, 30A
11 189164GS 2 NUT, Push
12 84543CGS 2 SCREW
13 93857GS 1 BAR, Retaining
14 188890GS 1 COVER, Back
15 82308GS 6 SCREW
16 22694GS 1 HSNG, Receptacle
