PowerBoss 5,500 Watt Storm-Plus Generator

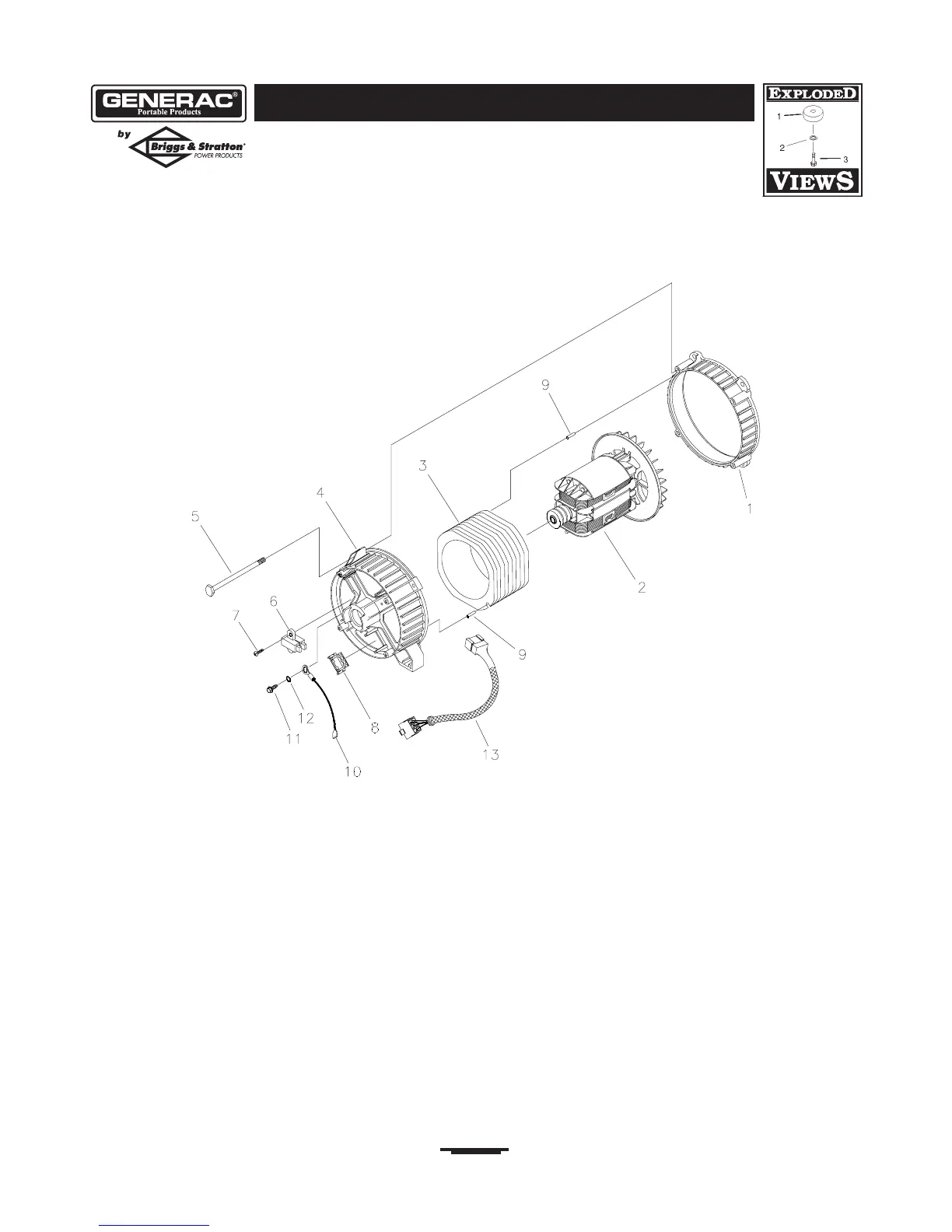

EXPLODED VIEW AND PARTS LIST – ALTERNATOR
Item Part # Qty Description
1 186059GS 1 ADAPTER, Mount
2 190032GS 1 ASSY, ROTOR
3 190079AGS 1 ASSY, STATOR
4 186060GS 1 RBC, with O-Ring (p/n 189197GS)
5 86308HGS 4 SCREW
6 91825GS 1 ASSY, Holder, Rectifier/Brush
7 66849GS 2 SCREW
8 22694GS 1 RECEPTACLE, 6 pin
9 81917GS 2 PIN, Roll
10 191051AGS 1 ASSY,WIRE
11 74908GS 1 SCREW
12 23762GS 1 WASHER, Shakeproof
13 190356GS 1 HARNESS,Wire
