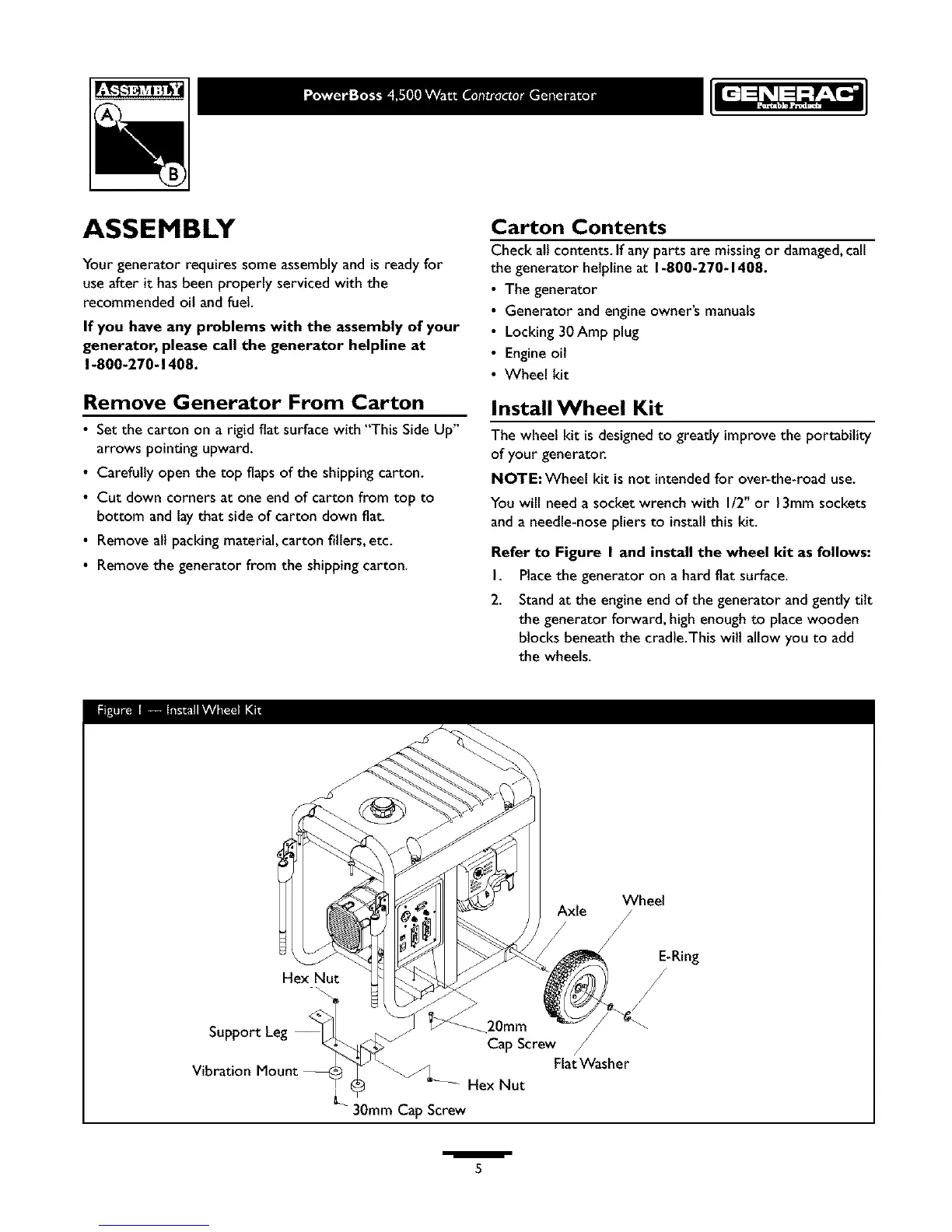

ASSEMBLY
Your generator requires some assembly and is ready for
use after it hasbeen properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-800-270-1408.
Remove Generator From Carton
• Set the carton on a rigid fiat surface with "This Side Up"
arrows pointing upward.
• Carefully open the top flaps of the shippingcarton.
• Cut down corners at one end of carton from top to
bottom and laythat side of carton down fiat
• Removeall packing material, carton fillers, etc.
• Removethe generator from the shipping carton.
Carton Contents
Check all contents. If any parts are missing or damaged,call
the generator helpline at 1-800-270-1408.
• The generator
• Generator and engine owner's manuals
• Locking 30Amp plug
• Engineoil
• Wheel kit
Install Wheel Kit
The wheel kit isdesignedto greatly improvethe portability
of your generator.
NOTE: Wheel kit is not intendedfor over-the-road use.
You will need a socket wrench with I/2" or 13mm sockets
and a needle-nose pliers to install this kit.
Refer to Figure I and install the wheel kit as follows:
I. Placethe generator on a hard fiat surface.
2. Stand at the engine end of the generator and gently tilt
the generator forward, high enough to place wooden
blocks beneath the cradle.This will allow you to add
the wheels.
Wheel
Axle /
Hex Nut
Support Leg
Vibration
_20mm
Cap Screw /
FlatWasher
Hex Nut
30mm Cap Screw
E-Ring
/
5
