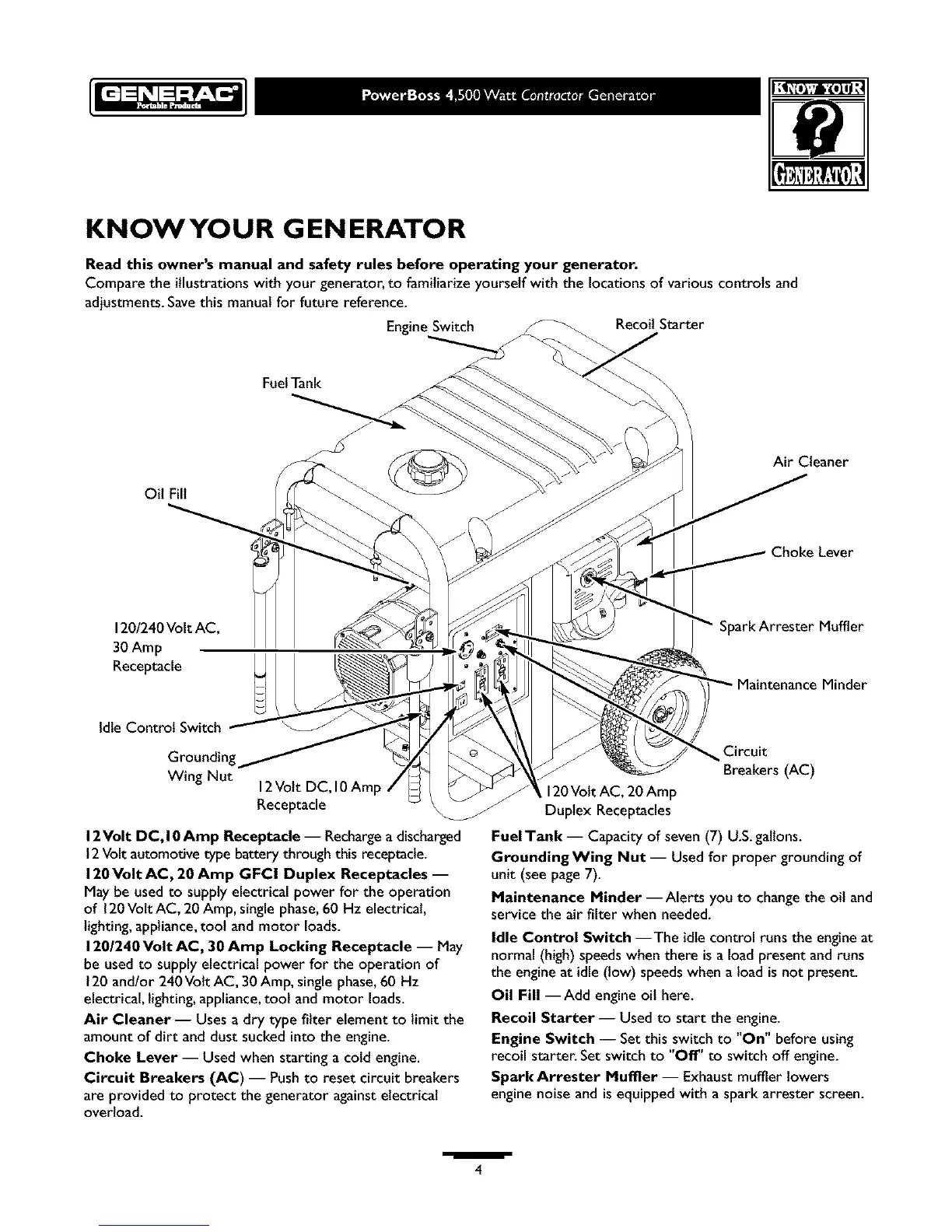

KNOWYOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare the illustrationswith your generator, to familiarize yourself with the locationsof variouscontrols and
adjustments.Savethis manualfor future reference.
EngineSwitch Recoil Starter
FuelTank
Oil Fill
Air Cleaner
Choke Lever
120/240VoltAC,
30 Amp
Receptacle
Idle Control Switch
Spark Attester Muffler
Minder
Wing Nut
12Volt DC, 10Amp
Receptacle
120Volt AC, 20 Amp
Duplex Receptacles
Circuit
Breakers (AC)
12Volt DC, I0 Amp Receptacle -- Rechargea discharged
12Volt automotive type battery through this receptacle.
120Volt AC, 20 Amp GFCI Duplex Receptacles --
May be usedto supply electrical power for the operation
of 120Volt AC, 20 Amp, single phase,60 Hz electrical,
lighting,appliance,tool and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle -- May
be usedto supply electrical power for the operation of
120and/or 240Volt AC, 30Amp, single phase,60 Hz
electrical, lighting, appliance,tool and motor loads.
Air Cleaner -- Uses a dry type filter element to limit the
amount of dirt and dust suckedinto the engine.
Choke Lever -- Used when starting a cold engine.
Circuit Breakers (AC) -- Pushto reset circuit breakers
are provided to protect the generator againstelectrical
overload.
FuelTank -- Capacity of seven (7) U.S.gallons.
GroundingWing Nut -- Used for proper grounding of
unit (see page 7).
Maintenance Minder --Alerts you to change the oil and
service the air filter when needed.
Idle Control Switch --The idle control runs the engineat
normal (high)speedswhen there is a loadpresent and runs
the engineat idle (low) speedswhen a load isnot present.
Oil Fill --Add engine oil here.
Recoil Starter-- Used to start the engine.
Engine Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
Spark Arrester Muffler -- Exhaust muffler lowers
engine noise and is equipped with a spark arrester screen.
/
4
