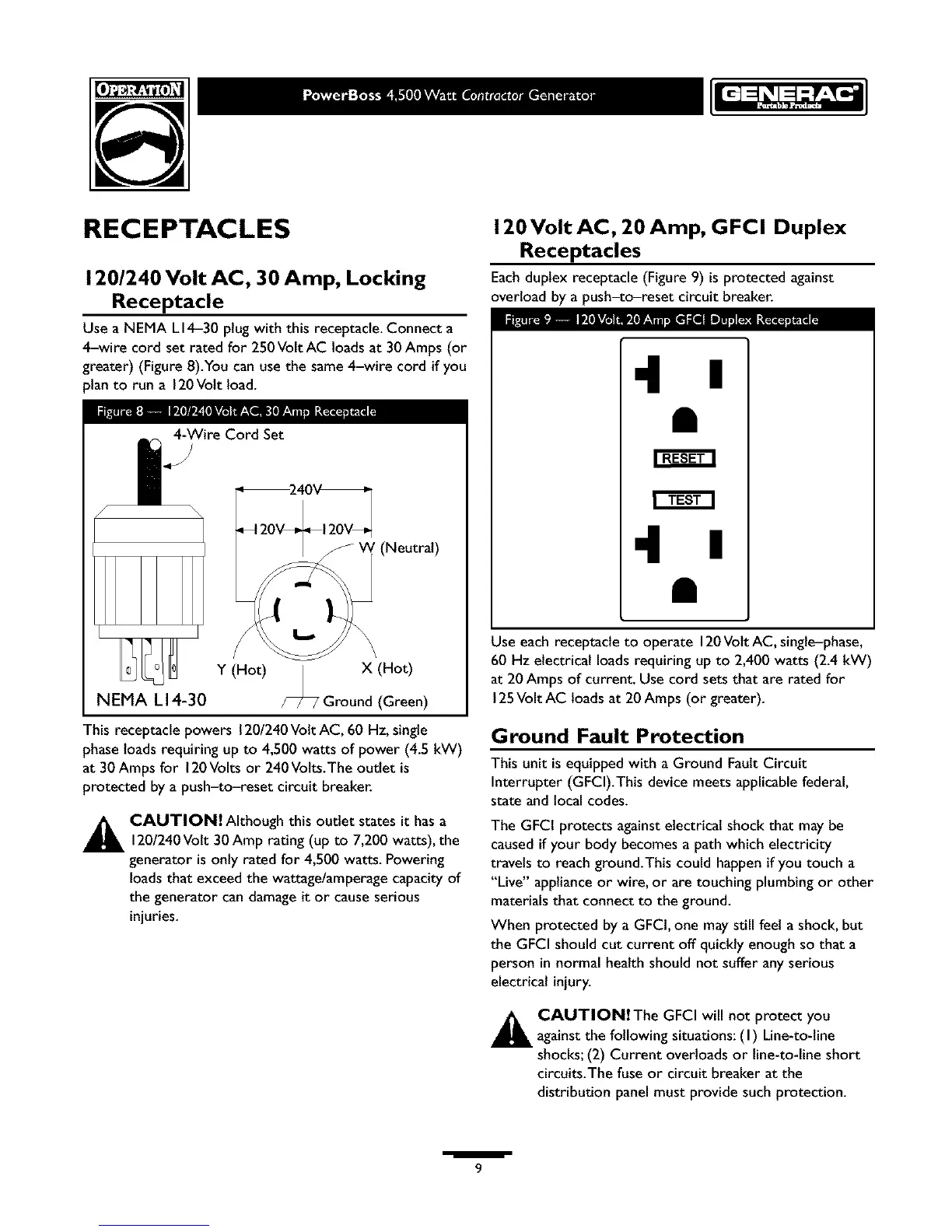

RECEPTACLES
120/240 Volt AC, 30 Amp, Locking
Receptacle
Use a N EMA LI4-30 plug with this receptacle.Connect a
4-wire cord set rated for 250Volt AC loads at 30 Amps (or
greater) (Figure 8).You can usethe same 4-wire cord if you
)lan to run a 120Volt load.
4-WireCord Set
f
(Neutral)
Y (Hot) | X (Hot)
NEMA L14-30 /--_ Ground (Green)
This receptacle powers 120/240Volt AC, 60 Hz,single
phaseloads requiring up to 4,500 watts of power (4.5 kW)
at 30 Amps for 120Volts or 240Volts.The outlet is
protected bya push-to-reset circuit breaker.
_ CAUTION! Although this outlet states it has a
120/240 Volt 30 Amp rating (up to 7,200 watts), the
generator is only rated for 4,500 watts. Powering
loads that exceed the wattage/amperage capacity of
the generator can damage it or cause serious
injuries.
120 Volt AC, 20 Amp, GFCI Duplex
Receptacles
Eachduplex receptacle (Figure 9) isprotected against
overload by a push-to-reset circuit breaker.
•11 I
•11 I
Use each receptacle to operate 120Volt AC, single-phase,
60 Hz electrical loadsrequiring up to 2,400 watts (2.4 kW)
at 20Amps of current. Use cord sets that are rated for
125Volt AC loads at 20Amps (or greater).
Ground Fault Protection
Thisunit isequipped with a Ground Fault Circuit
Interrupter (GFCI).This device meets applicable federal,
state and localcodes.
The GFCI protects againstelectrical shock that may be
caused ifyour body becomes a path which electricity
travels to reach ground.This could happenif you touch a
"Live" appliance or wire, or are touching plumbing or other
materials that connect to the ground.
When protected by a GFCI, one may still feel a shock, but
the GFCI should cut current off quickly enough so that a
person in normal health should not suffer anyserious
electrical injury.
_ CAUTION!The GFCI will not protect you
against the following situations: (I) Line-to-line
shocks;(2) Current overloads or line-to-lineshort
circuits.The fuse or circuit breaker at the
distribution panel must provide such protection.
/
9
