Water Pump 11
4.1 — ASSEMBLY
Read entire operator’s manual before you attempt to
assemble or if you have any problems with the assembly
of your water pump, please call Generac Customer Ser-
vice at 1-888-436-3722. When calling for assistance,
please have the model and serial number from the data
tag available.
If the water pump does not include a wheel kit, skip
to “Add Engine Oil”.
You will need the following tools to install the vibration
mounts and handle:
• Socket wrench with 12 mm socket (not included)

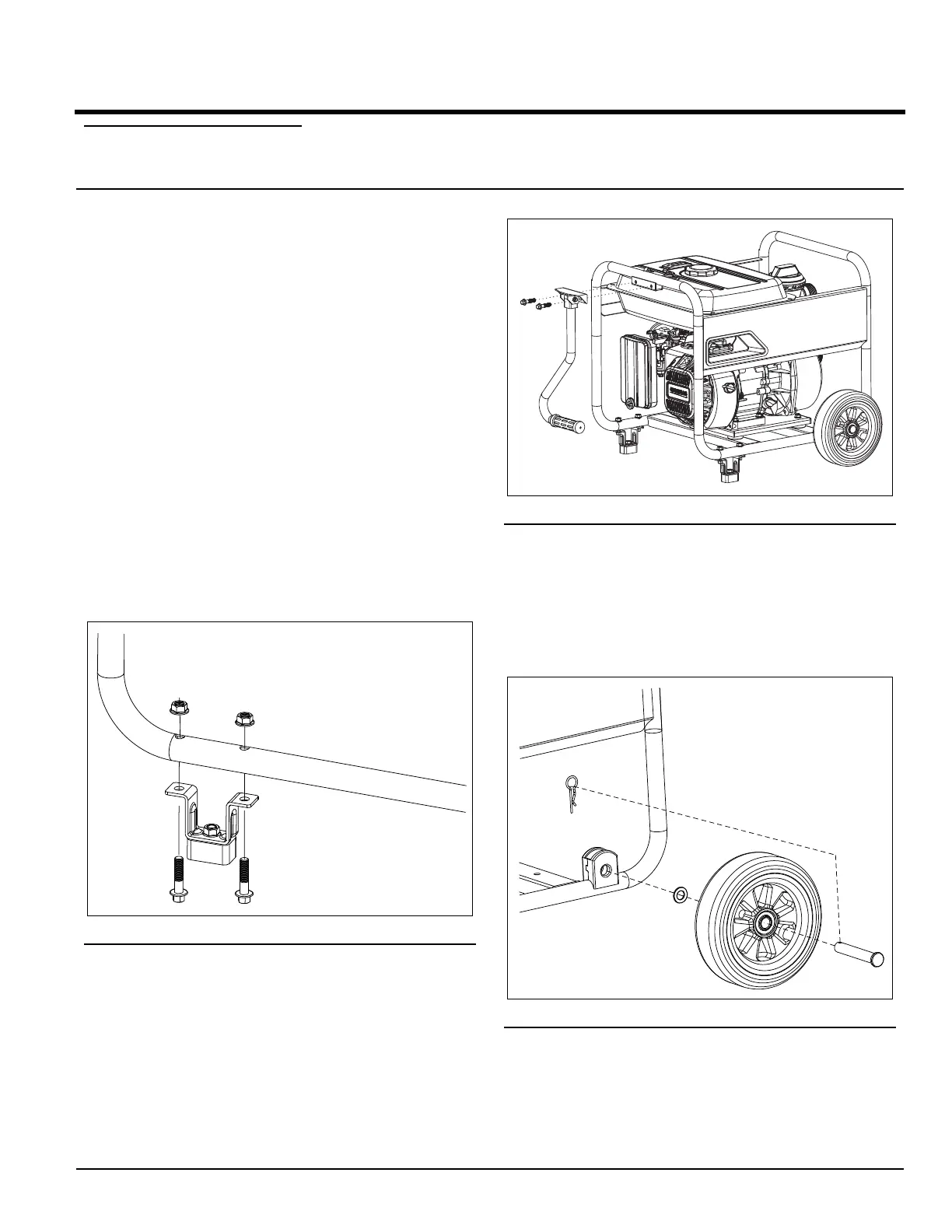

1. Attach Vibration Mounts (feet) (Figure 4-1).
A. Attach the vibration mount to the frame using 2
Flange Bolts (M8x40) and 2 Nuts (M8).
B. Slide the bolts through the vibration mount and
through the frame.
C. Secure with nuts. Tighten, but do not over tighten.
D. Repeat A-C for the second vibration mount.
Figure 4-1. Vibration Mounts
2. Attach Handle (Figure 4-2).
A. Place the handle over the mounting plate of the
frame.
B. Secure the handle to the frame using 2 Flange
Bolts (M8x40).
Figure 4-2. Attach Handle
3. Attach wheels (Figure 4-3).
A. Slide the axle through the wheel, washer, and
then the mount point on the frame.
B. Insert the cotter pin through the hole in the end of
the axle.
C. Repeat A-B for the second wheel.
Figure 4-3. Attach Wheels
Section 4 Set-up
