Water Pump 13
4.4 — CONNECT SUCTION AND
D
ISCHARGE HOSE
1. Attach and thread a gasket and hose barb to each of
the threaded flanges using a hose nut (Figure 4-6).

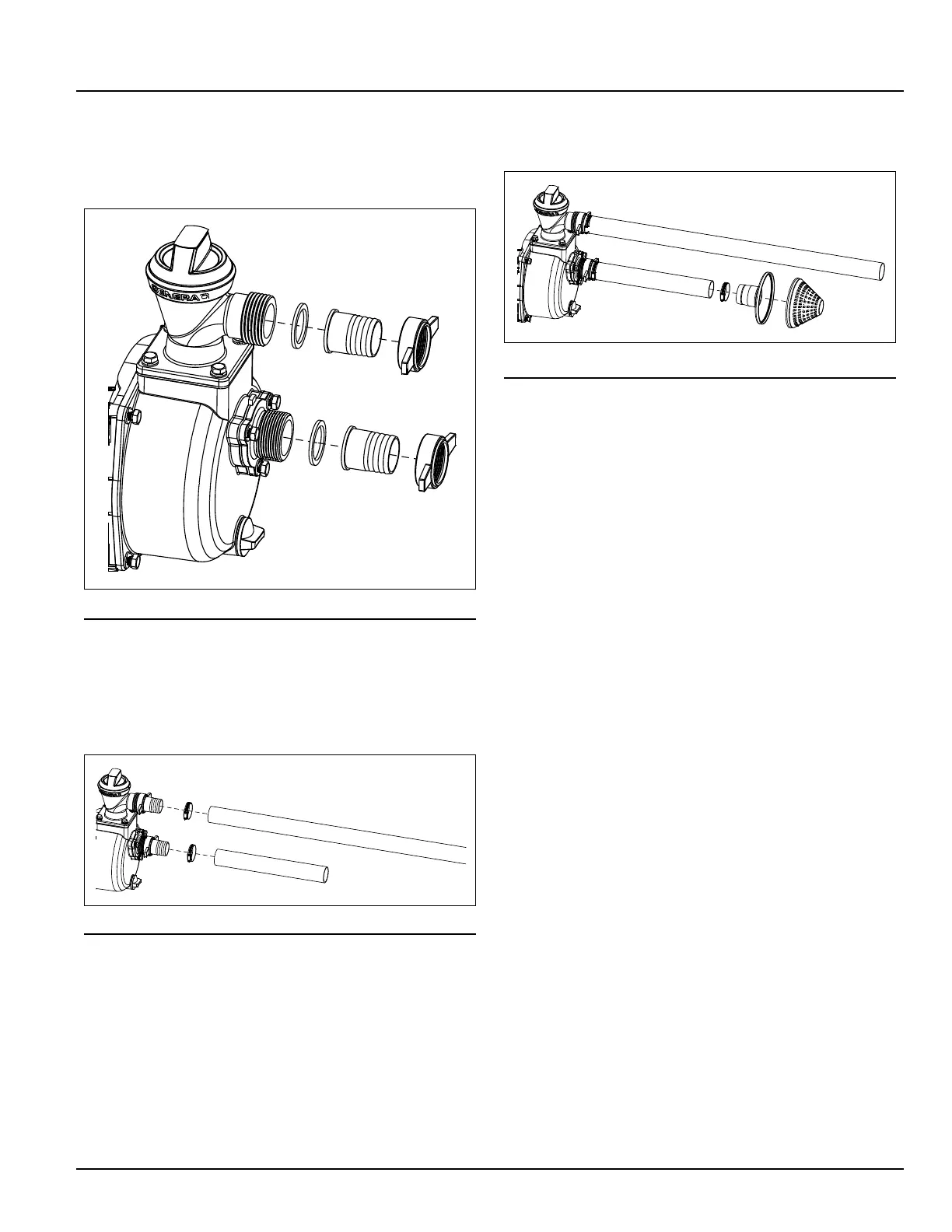

Figure 4-6. Attach Gasket and Hose Barb
2. Attach the flexible blue discharge hose to the blue
colored flange by sliding the hose over the barb and
securing with a hose clamp.
3. Attach the green suction hose to the green colored
flange by sliding the hose over the barb and securing
with a hose clamp (Figure 4-7).
Figure 4-7. Attach Hoses
4. Attach the filter to the suction hose by inserting the
barb end into the suction hose and securing with a
hose clamp. Then attach the filter end (Figure 4-8).
Figure 4-8. Attach Filter
4.5 — PRIME THE UNIT
Remove the Easy Prime cap from the pump and com-
pletely fill the pump chamber with clean water. Tighten
the cap. DO NOT over tighten.
