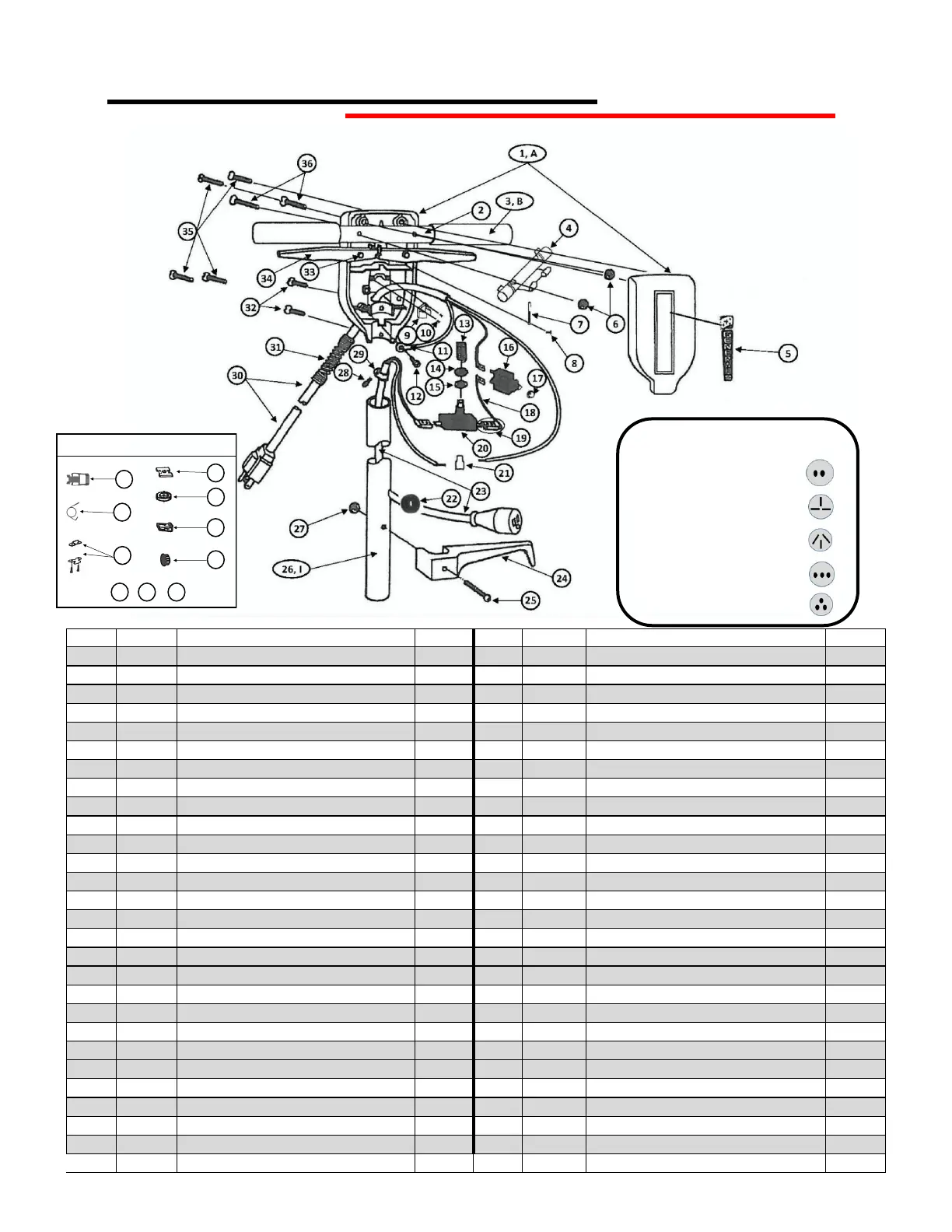

General 2000 DC-1 - Handle Assembly

Page 4
1500 DC-1
HANDLE ASSEMBLY - 500022 110 V
Ref. # Part # Description Required Ref. # Part # Description Required
1 501044 Switchbox, Front and Back Polished 1 27 501054 Nut, Lock with Nylon Insert 1
2 501028 Handle Bar 1 28 505804 Screw, Strain Relief 1
3 505188 Grip, Handle Red 2 29 505146 Cable Clamp 1
4 505185 Lever, Safety Red 1 30 605033 Cable, Heavy Duty 50' Red- Plug B 1
5 505128 Decal, Switchbox Nameplate 1 606033 Cable, Heavy Duty 50' Red- Plug M
6 501054 Nut, Lock with Nylon Insert 2 607033 Cable, Heavy Duty 50' Red- Plug G
7 505182 Spring, Safety Switch 1 607533 Cable, Heavy Duty 50' Red- Plug I
8 201600 Screw, Spring 1 608033 Cable, Heavy Duty 50' Red- Plug L
9 505189 Strain Relief, Cable 1 605033 Cable, Heavy Duty 50' Red- Plug B
10 505190 Screw, Strain Relief Cable 2 31 505110 Strain Relief, Cable Spring 1
11 505166 Terminal, Ring Type Insulated 1 32 505412 Screw, Switchbox Handle Tube 2
12 201600 Screw, Ground 1 33 501027 Pivot Pin, Lever 2
13 505162 Spring, Switch 1 34 501524 Lever, Switch Red 2
14 505172 Nut, Switch brass 1 35 505118 Screw, Switchbox 4
15 505173 Washer, Switch 1 36 142800 Screw, Handle Bar 2
16 505201 Circuit Breaker for 120 Volt 1 A 500044 Switchbox, Front and Back Polished 1
16 505210 Circuit Breaker for 220 Volt
17 505204 Boot, Clear Circuit Breaker 1 B 505004 Grip, Handle Red 2
18 505560 Wire, Harness Assembly Switchbox 1 C 505174 Lever, Safety Metal 1
19 505203 Terminal, Insul. Female Right Angle 2 D 505175 Spring, Safety Switch 1
20 505170 Switch, 120 Volt 1 E 505176 Clamp, Cable 1
20 505195 Switch, 220 Volt
21 505168 Crimp Connector, Insulated 1 F 505169 Bracket, Switch 1
22 201227 Grommet, Rubber Handle Tube 1 G 505178 Washer, Switch Lower 1
23 505160 Wire, Tube Assembly Black 1 H 505161 Insulator, Cover for Terminal 2
24 501071 Cable Hook 1 I 501067 Handle Tube, Chromed 1
25 114280 Screw, Cable Hook 1 J 505193 Plug, Switchbox 1
26 501080 Handle Tube, Chrome, Safety Switch Box 1 500022 Handle assembly carton
PLUG
606533 C
Cable, Heavy Duty 50' Red 220v
607033 G
607533 I
608033 L
606033 M
