1500 DC-1

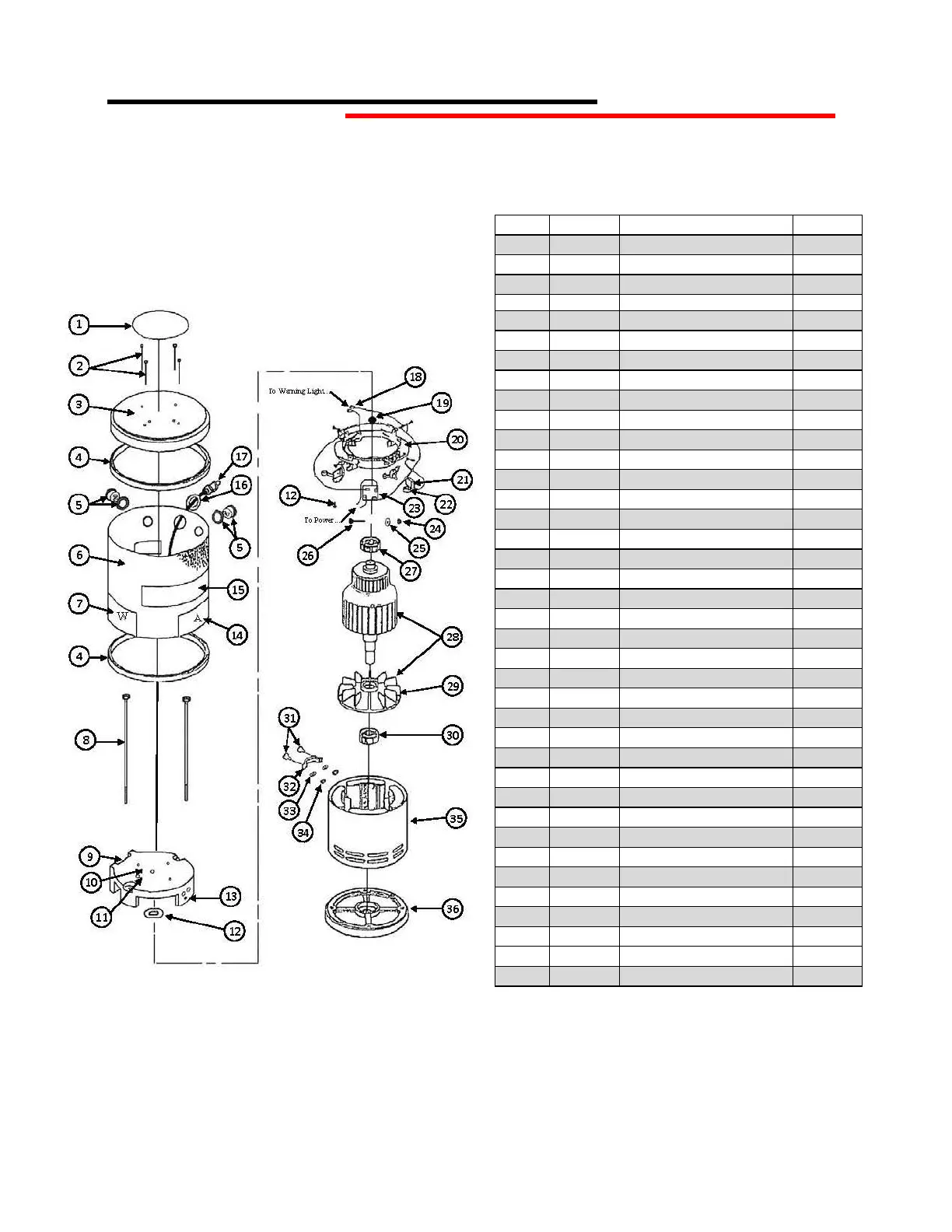

1 ½ HP MOTOR ASSEMBLY– 201114
INNOVATIVE CLEANING EQUIPMENT…..ENGINEERED TO LAST
110 V
IMPERIAL ELECTRIC MOTOR ONLY
Reference Part Number Description Required
1 201207 Decal, Canopy black plastic 1
2 211710 Screw, canopy Plastic 4
3 211204 Canopy, Motor black round 1
4 400685 Gasket, motor cover 2
5 201265 Light, w/speed nut 2
6 201306 Motor cover, perforated 1
7 145125 Decal, warning 1
8 301244 Bolt, thru 2
9 401245 Commutator bracket 1
10 401434 Screw, brush board /ground /clamp 6
11 401423 Strain relief 1
12 401246 Washer, helical 1
13 401400 Strain, relief 1
14 501076 Decal, adjustment instructions 1
15 145119 Decal, Motor Front General 1
16 201303 Grommet, rubber motor screen 1
17 201247 Motor lead 1
18 201215 Terminal, Insulated female 11
19 405200 Varistor assembly 1
20 401269 Brush, Board assembly 1
21 401251 Motor brush 4
22 401250 Spring, Motor brush 4
23 201328 Rectifier** 1
24 401463 Nut, Hex rectifier mounting 1
25 401456 Washer, rectifier mounting 1
26 401444 Screw, rectifier mounting 1
27 401485 Bearing, upper 1
28 401254 Armature assembly 1
29 401257 Fan 1
30 401255 Bearing, lower 1
31 201550 Bolt, bracket 2
32 201203 Bracket, latch lever 1
33 201430 Washer, locking 2
34 501054 Nut, lock with nylon insert 2
35 401253 Field assembly w/magnets 1
36 401256 Lower end bell 1
202014 Motor DC /1.5 HP 110V
202014 Motor DC /1.5 HP 220V
**When replacing rectifier (ref #25), heat sink compound must be spread be-
tween rectifier and Commutator Bracket
