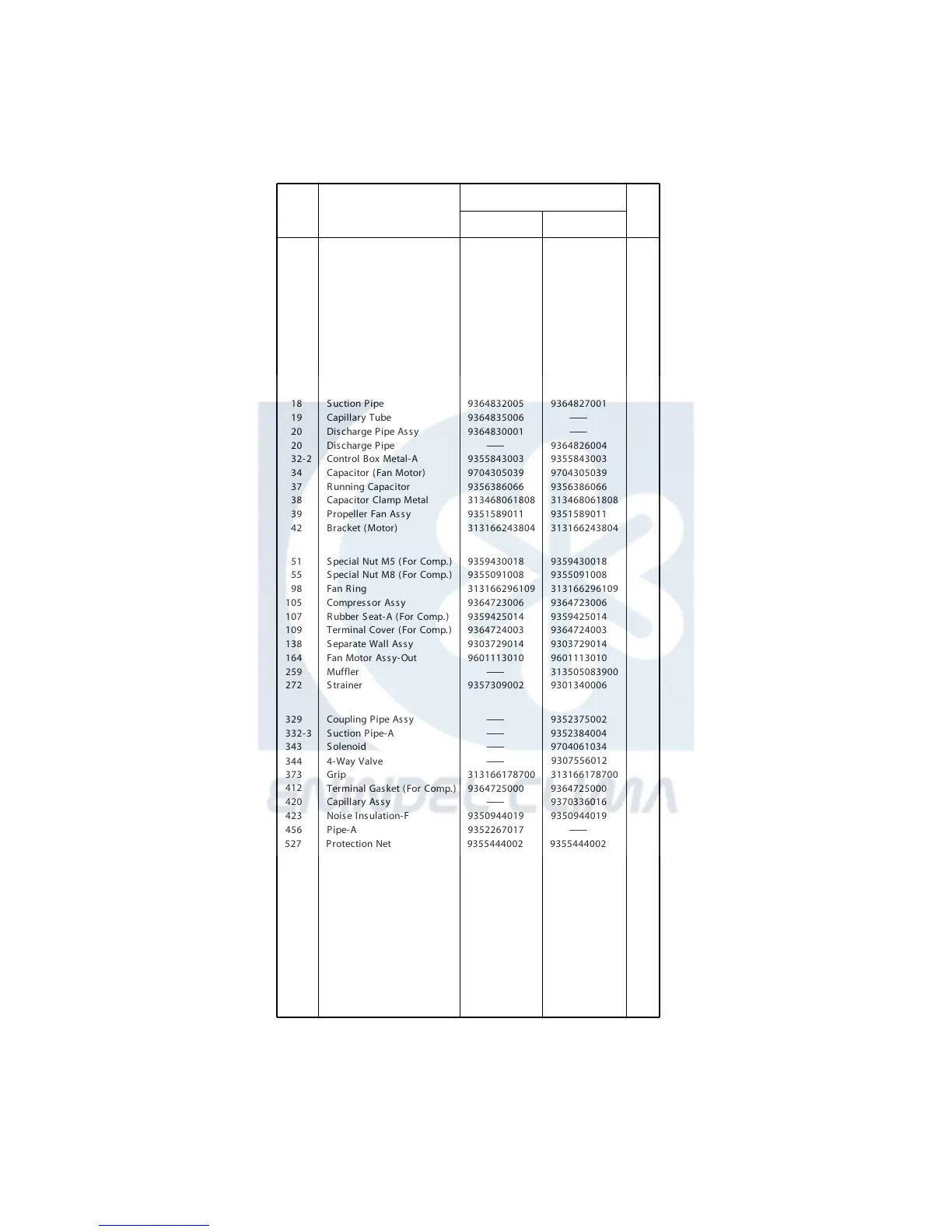

OUTDOOR UNIT
AOG14USDJL
2 Fan Cover 9304109006 9304109006
4 Emblem-Rear (AOY Model) 9351355005 9351355005
4 Emblem-Rear (AOG Model) 313698088313 313698088313
5 Cabinet, Painted 9302936017 9302936017
7 Connector Cover (Cabinet) 9357970004 9357970004
9 Cabinet Rear Panel 9303744017 9303744017
12 Base Assy, Painted 9310889077 9310889077
13 3-Way Valve 9372205105 9389312087
14 2-Way Valve 9372204030 9389311110
16 Condenser Assy 9373131045 9373131014
18 Suction Pipe 9364832005 9364827001
19 Capillary Tube 9364835006 ---------
20 Discharge Pipe Assy 9364830001 -- -- --- --
20 Discharge Pipe --------- 9364826004
32-2 Control Box Metal-A 9355843003 9355843003
34 Capacitor (Fan Motor) 9704305039 9704305039
37 Running Capacitor 9356386066 9356386066
38 Capacitor Clamp Metal 313468061808 313468061808
39 Propeller Fan Assy 9351589011 9351589011
42 Bracket (Motor) 313166243804
313166243804
51 Special Nut M5 (For Comp.) 9359430018 9359430018
55 Special Nut M8 (For Comp.) 9355091008 9355091008
98 Fan Ring 313166296109 313166296109
105 Compressor Assy 9364723006 9364723006
107 Rubber Seat-A (For Comp.) 9359425014 9359425014
109 Terminal Cover (For Comp.) 9364724003 9364724003
138
Separate Wall Assy 9303729014 9303729014
164 Fan Motor Assy-Out 9601113010 9601113010
259 Muffler -- -- --- -- 313505083900
272 Strainer 9357309002 9301340006
329 Coupling Pipe Assy -- -- -- --- 9352375002
Ref.
No.
Description
Ord.
Q'ty
Part No.
AOG14FSDJ
When you order parts, please make a photocopy of this page
and fill the number of the parts in the "Order" column.
332-3 Suction Pipe-A -- -- --- -- 9352384004
343 Solenoid --------- 9704061034
344 4-Way Valve -- -- --- --
9307556012
373 Grip 313166178700 313166178700
412
Terminal Gasket (For Comp.) 9364725000 9364725000
420 Capillary Assy -- --- -- -- 9370336016
423 Noise Insulation-F 9350944019 9350944019
456 Pipe-A 9352267017 -- -- --- --
527 Protection Net 9355444002 9355444002
582 Discharge Pipe-F 9301425017 ---------
734 Cabinet Top Plate 9302937014 9302937014
744 Clamp (Condenser) 313166374106 313166374106
745 Motor Support 313166036308 313166036308
815 Terminal 3P 9355901424 ---------
815 Terminal 4P --------- 9358660041
826 Condensing Pipe-B --------- 313299175852
982-1 Cord Clamp 9356857009 9356857009
982-2 Cord Clamp-B 9356858006 9356858006
987 Insulation Sheet 9358372005 9358372005
2004.01.16 PRELIMINARY 33
To Next Page
