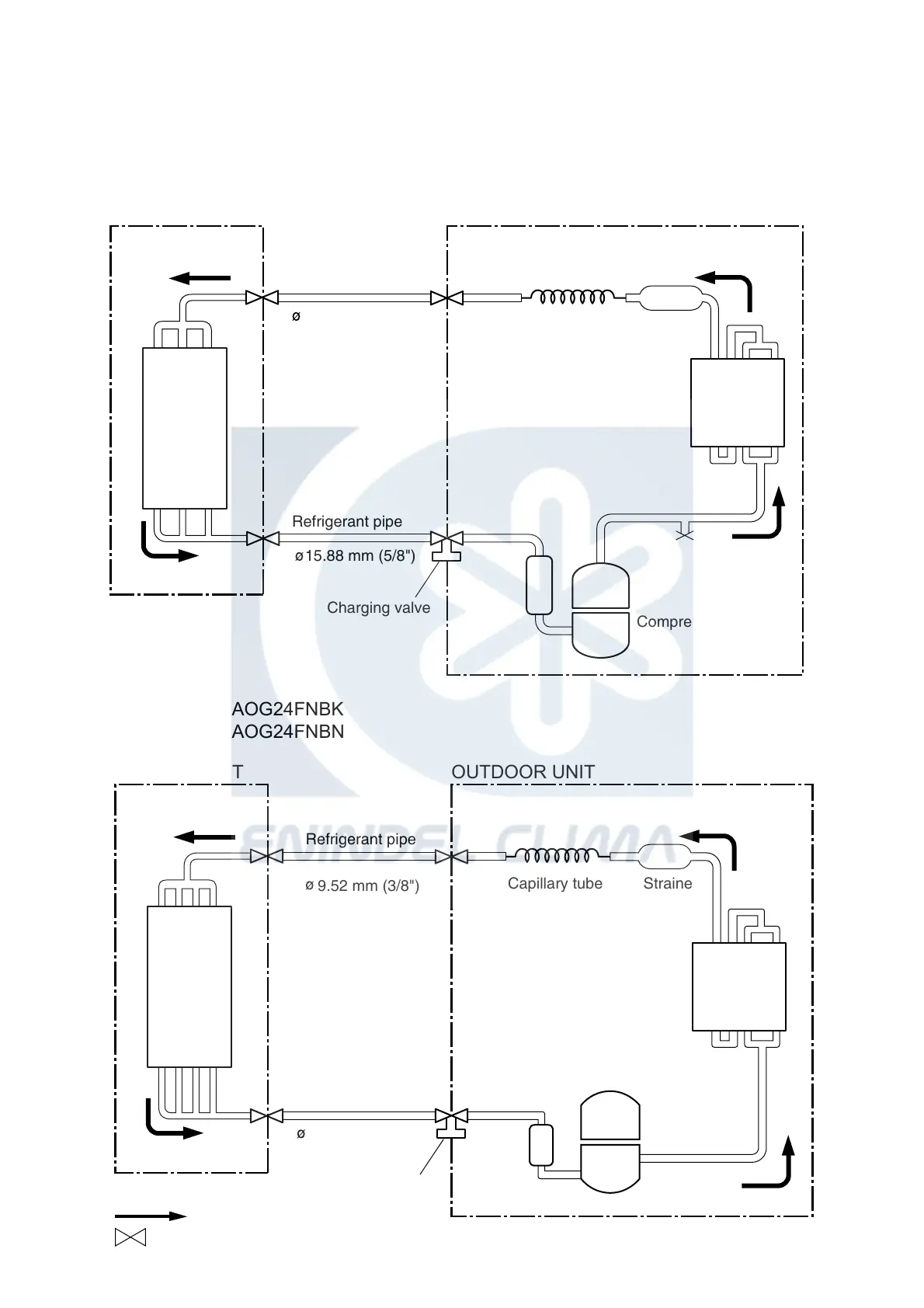

REFRIGERANT SYSTEM DIAGRAM
Models :
ABG18FBBJ / AOG18FNBK
ABG18FBBJ / AOG18FNBN
Models :
ABG24FBBJ / AOG24FNBK
ABG24FBBJ / AOG24FNBN
Cooling
: Flare coupling
Refrigerant pipe
Refrigerant pipe
Refrigerant pipe
Refrigerant pipe
Charging valve
Charging valve
INDOOR UNIT
Evaporator
Evaporator
Capillary tube
Capillary tube
Compressor
Strainer
Strainer
OUTDOOR UNIT
6.35 mm (1/4")
15.88 mm (5/8")
Condenser
Compressor
OUTDOOR UNITINDOOR UNIT
9.52 mm (3/8")
15.88 mm (5/8")
Condenser
52006.09.04
www.enindel.com
