Insulation
Insulation
Control Bo
x
Insulation

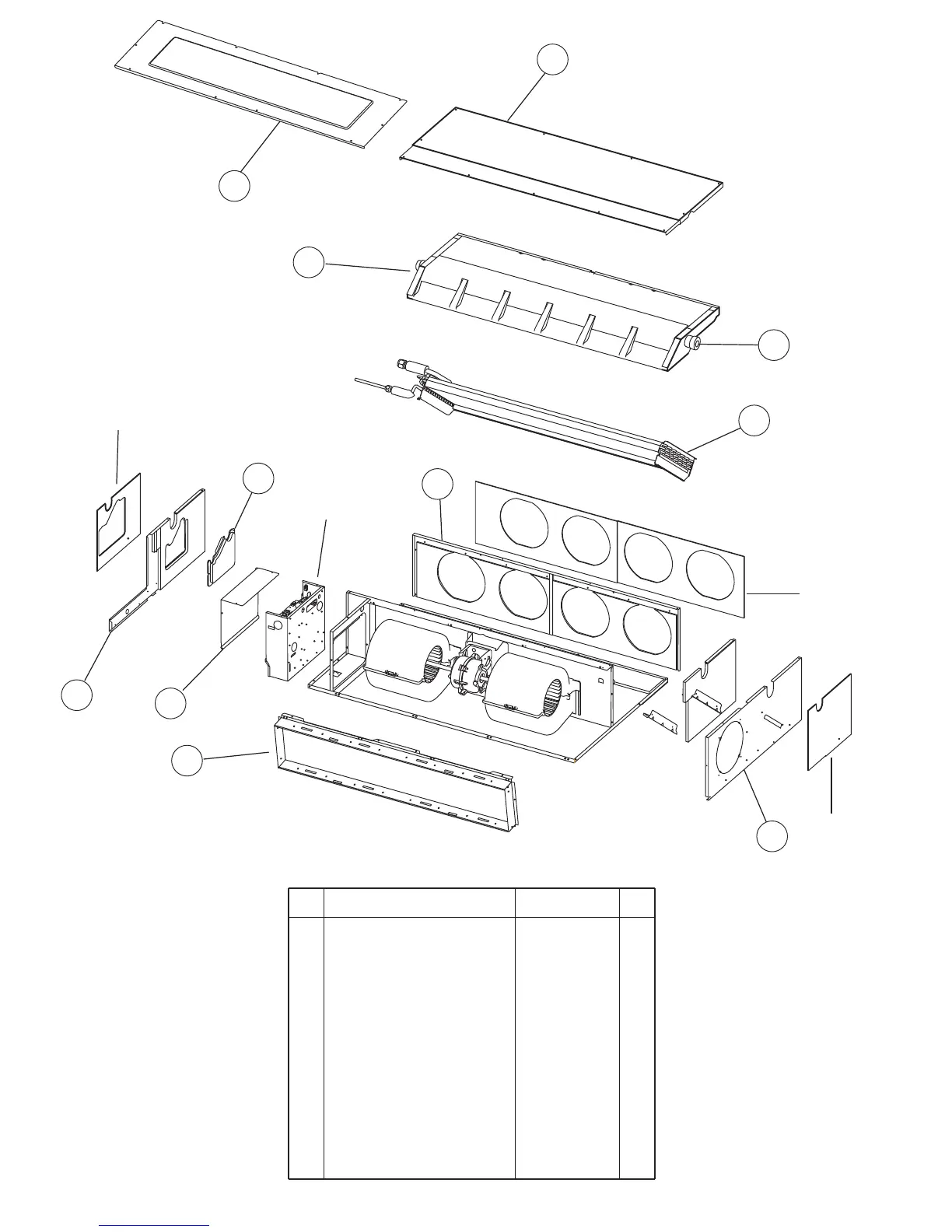

P A R T S
INDOOR UNIT
2007.10.29 18
1
2
3
4
5
10
11
7
9
8
6
7 Control Cover-A Sub Assy 9374516018
10 Cabinet L Sub Assy 9374509010
9 Cabinet R Sub Assy 9374508013
1 Intake Cover Sub Assy 9374512010
6 Outlet Panel Sub Assy 9374510016
5 Evaporator Assy 9374518012
3 Drain Pan Sub Assy 9374513017
2 Main Panel Sub Assy 9374511013
11 Intake Frame Assy 9374216017
4 Drain Cap 9356541007
8 Bracket (pipe) Sub Assy 9374514014
Ref. Description
Part number
To Next Page
