2008.07.29 21
1
2
9
7
5
6
3
4

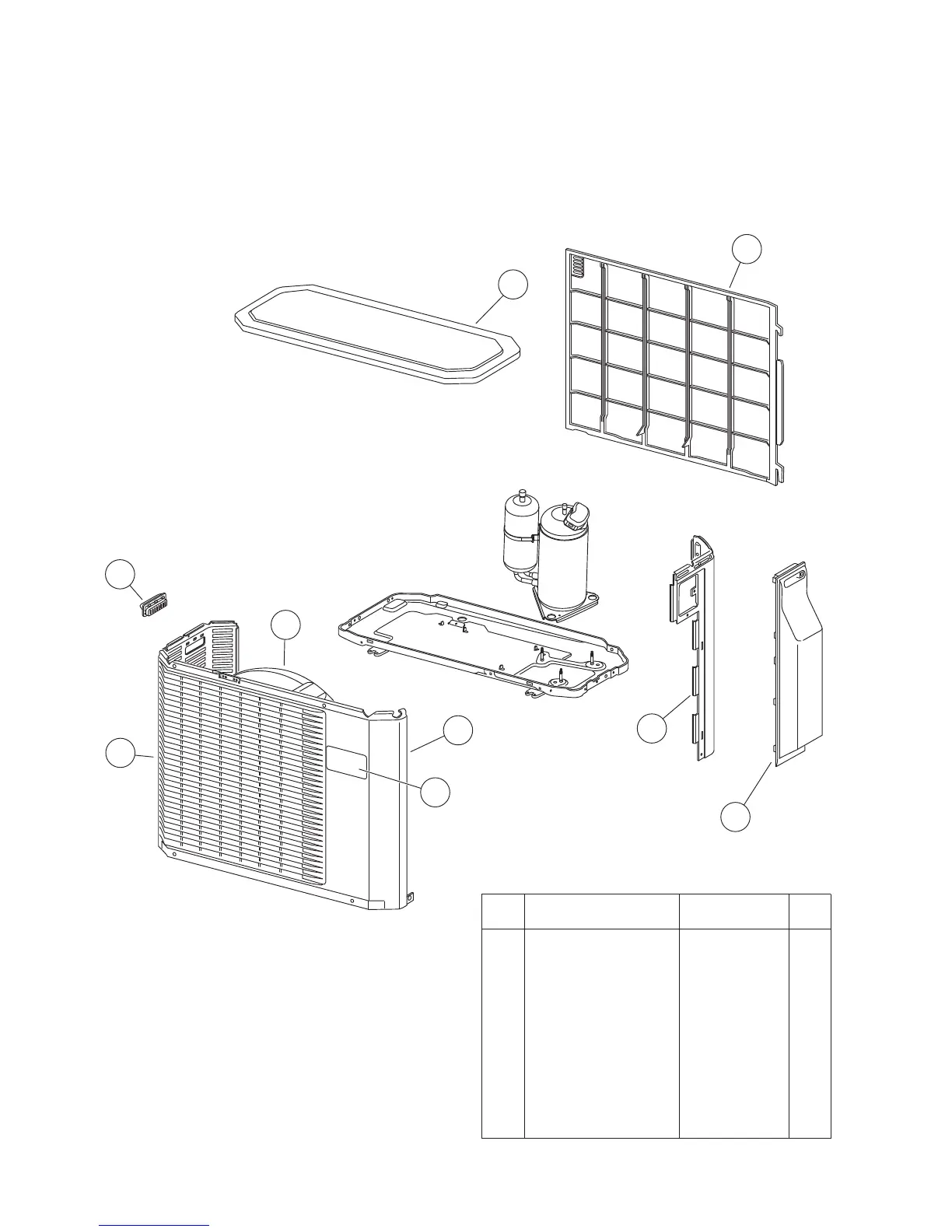

OUTDOOR UNIT
P A R T S
8
1 Top Panel Assy
3 Cabinet Assy
4 Blow Down Grille
5 Cabinet Right Assy
6 Fan Ring
7 Grip
9 Protective Net
8 Emblem
2 Cover (Switch) Assy
9309230057
9314809019
9309237032
9308884015
9309236028
9308885012
9308880017
9315033017
9315211019
Ref. Description Part number
