General AOHR12LGC

39
37
38
32
22
40
35
36

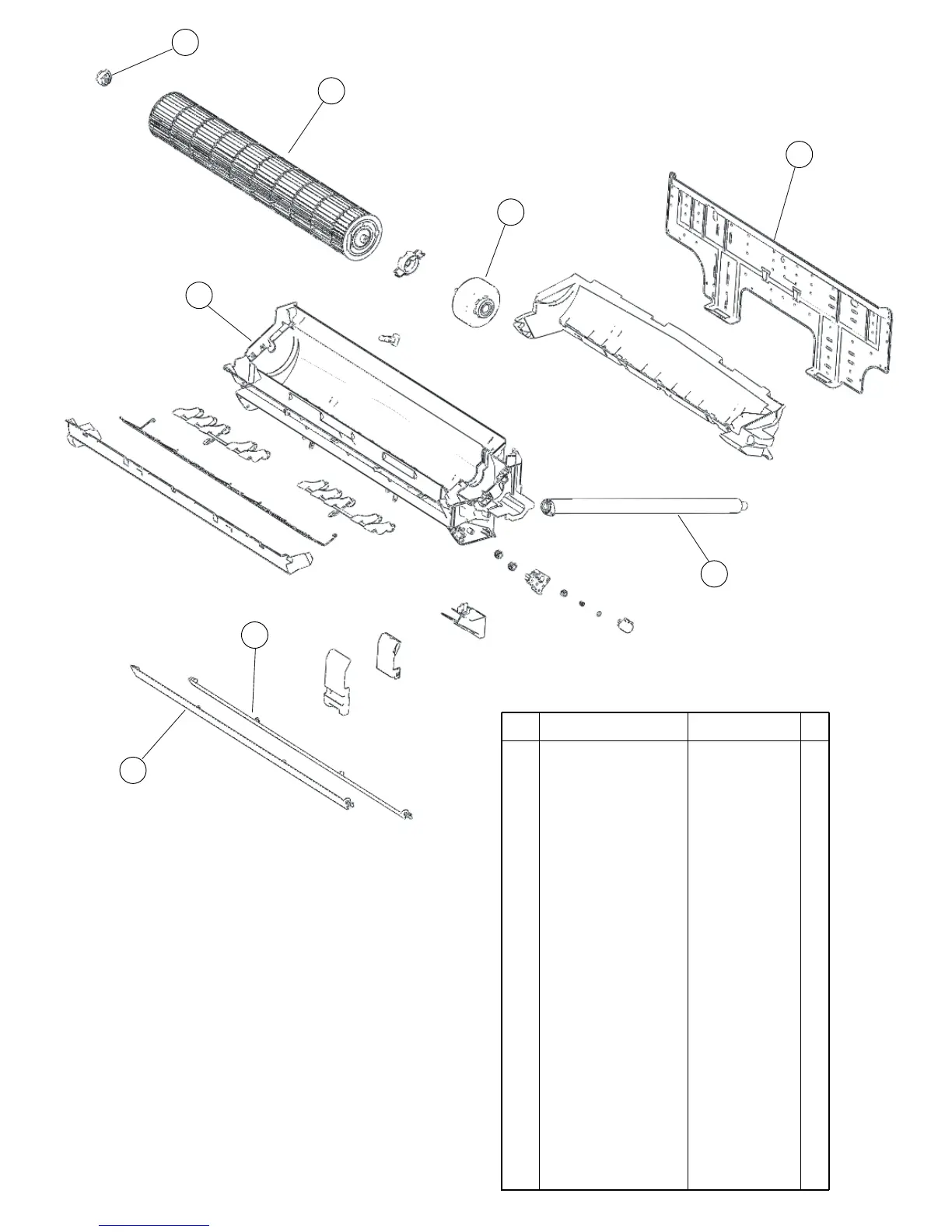

INDOOR UNIT
Casing assy
13
?? Cable Guide 9316567009
?? Casing Cover B 9316569003
?? Casing Cover F 9316570009
?? R and L Louver B 9316961005
?? Fan Guard 9317182003
35 Fan Motor 9602704002
36 Crossflow Fan Assy 9316830004
37 Shaft Holder C 9306628017
38 Louver U 9316572003
39 Louver Z 9316573000
40 Bracket Panel 9316590007
21 Casing Assy 9316892026
22 Casing 9316563001
?? Motor Cover 9316568006
?? Louver Gear Holder 9316575004
?? Louver Gear 9316574007
?? Gear A 9309994003
?? Motor Step 9900139117
32 Drain Hose Assy 9316904002
?? Drain Cap 9316177017
Ref. Description Part number
2008.01.31
