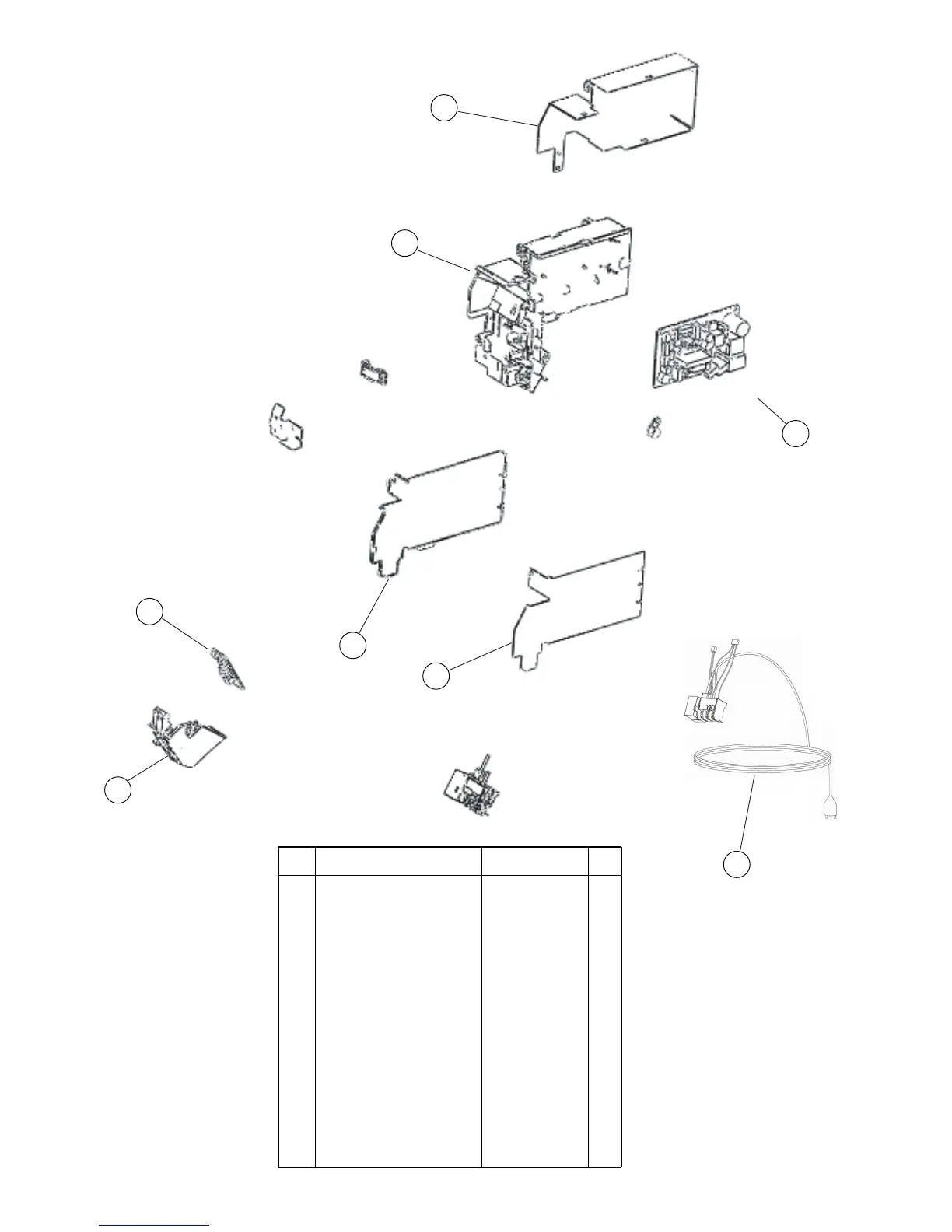

INDOOR UNIT
Control box
14
47 Display PCB Assy 9707649017
46 Display Case 9316587007
48 Power Cord Assy 9900456016
45
Controller PCB Assy (09)
9707645040
45
Controller PCB Assy (12)
9707645057
-- Thermistor Assy 9900459000
--
Room Thermistor Holder
9316895003
-- Earth Terminal 9316586000
41 Control Box 9316582002
42 Box Shield 9316580008
43 Control Cover 9316583009
44 Cover Shield 9316581005
Ref. Description Part number
2008.01.31
To Next Page
