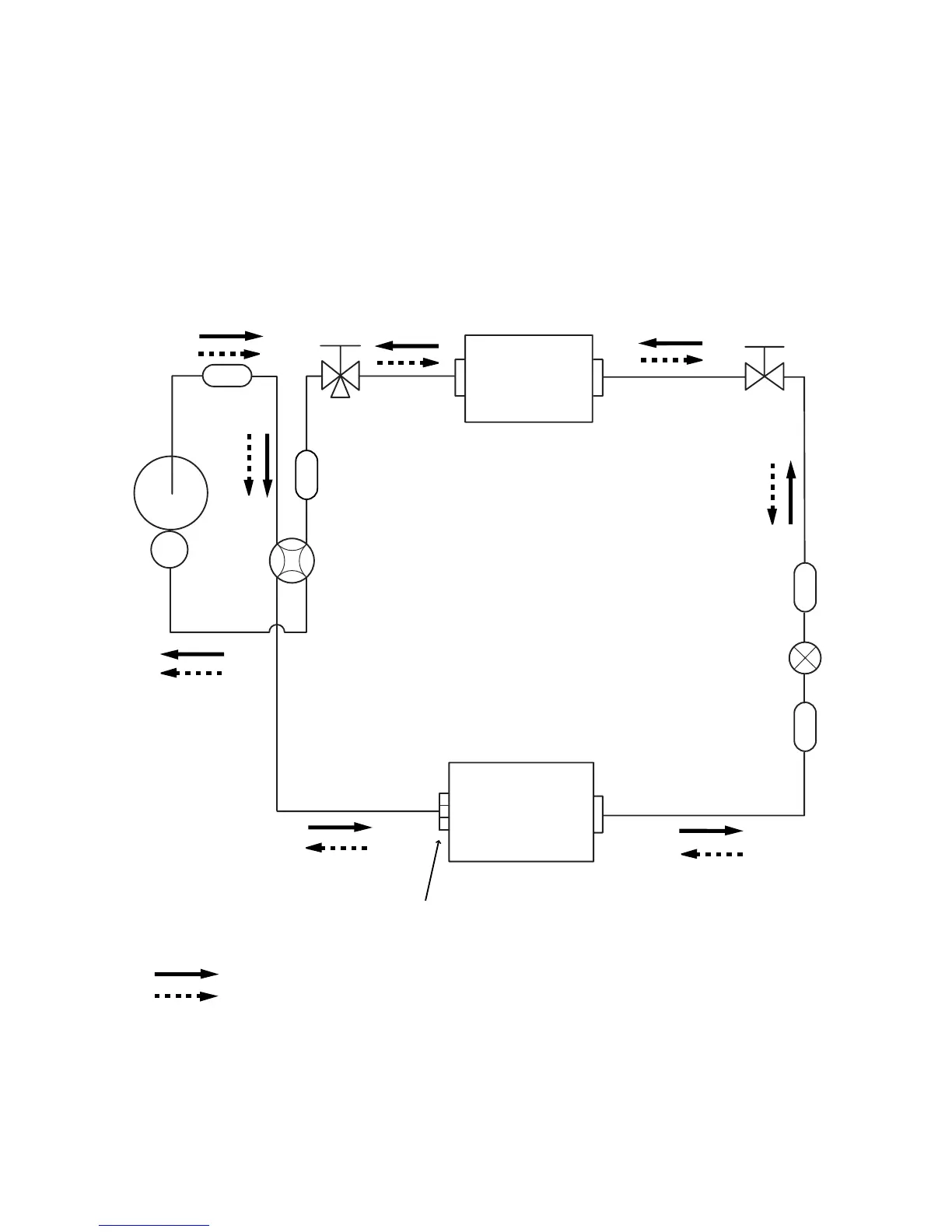

REFRIGERANT SYSTEM DIAGRAM
2-Way
valve
Strainer
Strainer
3-Way
valve
Muffler
Muffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
AOHS09LDC : 2 pass
AOHS12LDC : 4 pass
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2006.02.06 3
Models :
ASHB09LDC / AOHS09LDC
ASHB12LDC / AOHS12LDC
