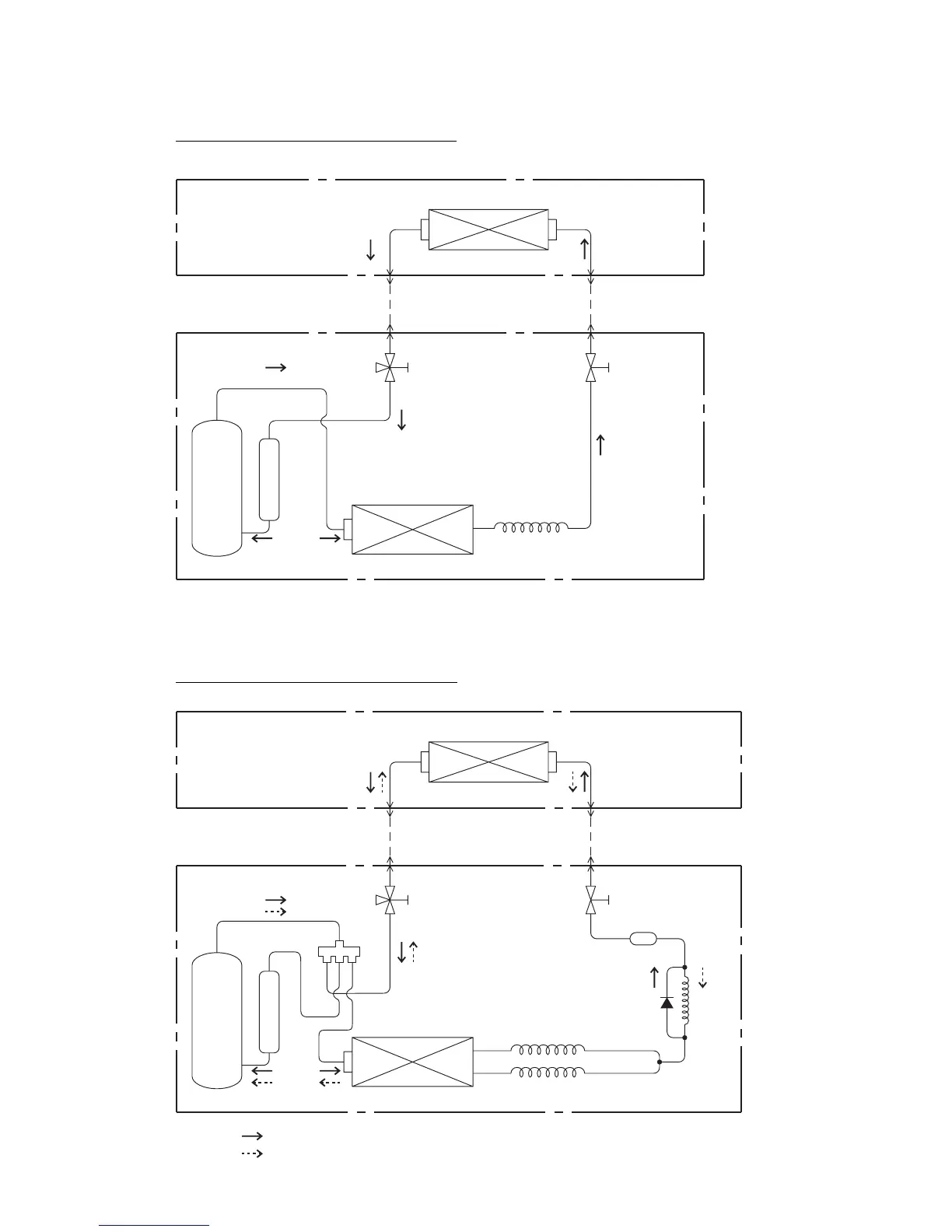

REFRIGERANT SYSTEM DIAGRAM
Models : ASH14FSBCW / AOH14FSBC
Models : ASH14USBCW / AOH14USBC
Heating
Cooling
(with Charging valve)
Condenser
Dryer
(Flare connection)
Gas pipe (12.7 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Com-
pressor
32004.10.13
3-Way valve
4-Way
valve
Capillary tube
or heating and cooling
2-Way valve
Check
valve
Capillary tube for heating
Evaporator
(with Charging valve)
Condenser
(Flare connection)
Gas pipe (12.7 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Com-
pressor
3-Way valve
Capillary tube
2-Way valve
Evaporator
