INDOOR UNIT
COMPACT CASSETTE
AUHG07LVLA
AUHG09L
VLA
AUHG12L
VLA
AUHG12L
VLB

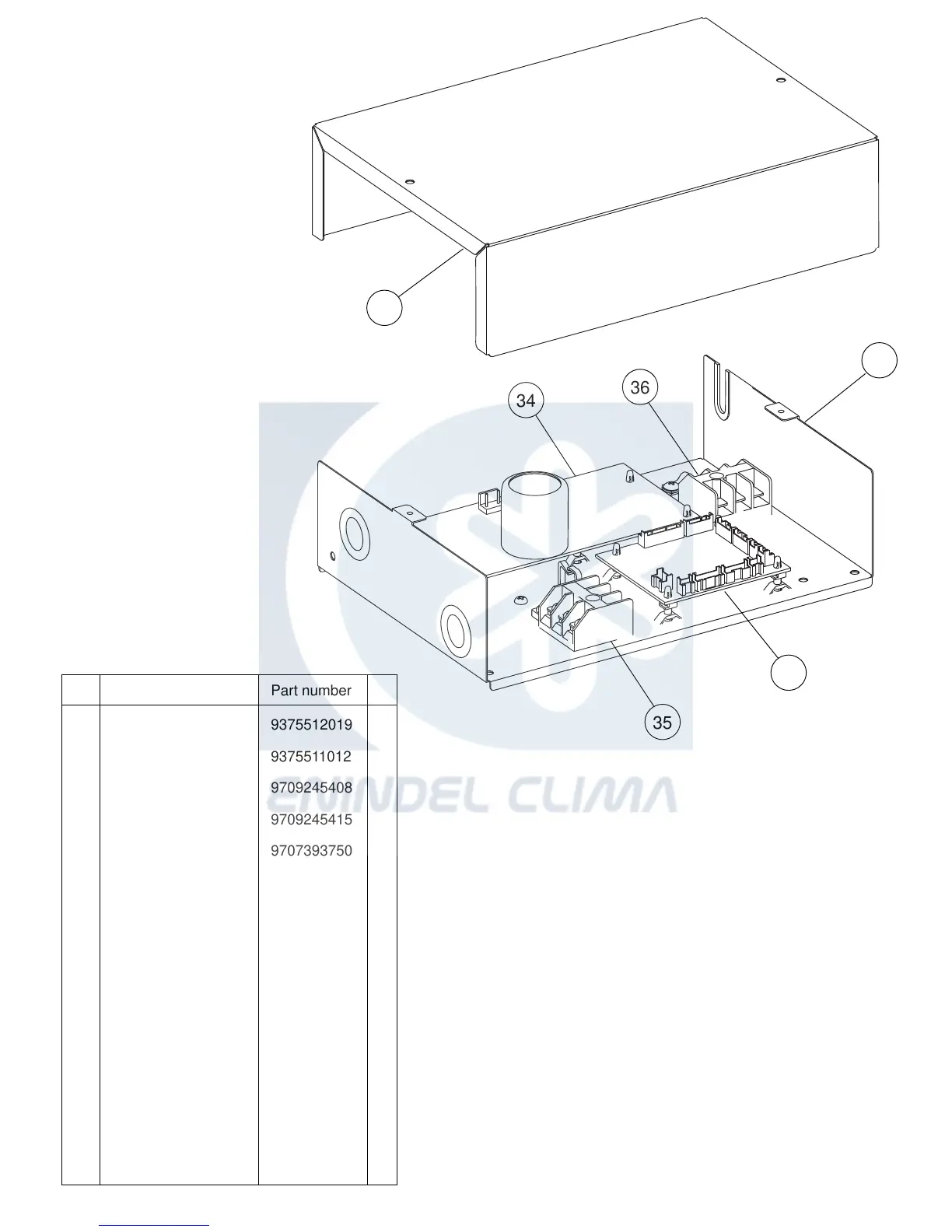

Control unit
31
32
33
34
35
36
31 Control Box Cover 9375512019
32 Control Box A 9375511012
33
33
Main PCB (09) 9709245415
33 Main PCB (07) 9709245408
Main PCB (12LVLA) 9707393750
33 Main PCB (12LVLB) 9709245422
Ref. Description Part number
34 Power Supply PCB
(AUHG12LVLA)
9707398250
34 Power Supply PCB
(07, 09LVLA, 12LVLB)
9707398380
35 Terminal 9306489045
36 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor 9900502003
-- Remote Control 9379219006
-- Remote Control Holder 9305642045
