80
68
66
67
71
62
69
64
73
70
61
72
78
63
74
79
77
65
76
75
52
76
Fan Guard 9318924008
77
Fan Motor 9602947003
78
Crossflow Fan Assy 9319361000
79
Bearing C Assy 9306628017
80
71
Gear A
9318904000
9309994003
72
Motor Step 9900384128
73
74
Drain Hose Assy 9316904002
75
Drain Cap 9316177017
Ref. Description Part number
64
65
Casing Cover B 9318920017
66
Casing Cover F 9318923001
67
R and L Louver 9318885002
61
Casing Assy 9319342009
62
Casing 9318873009
63
Motor Cover 9316601000
Motor Cover 9318888003
68
Pipe Bracket 9318889000
69
70
Panel Cover 9319296012
Louver Holder 9318886009
Louver Gear Holder
Louver Gear
9318905007
Ref. Description Part number
2013.06.20

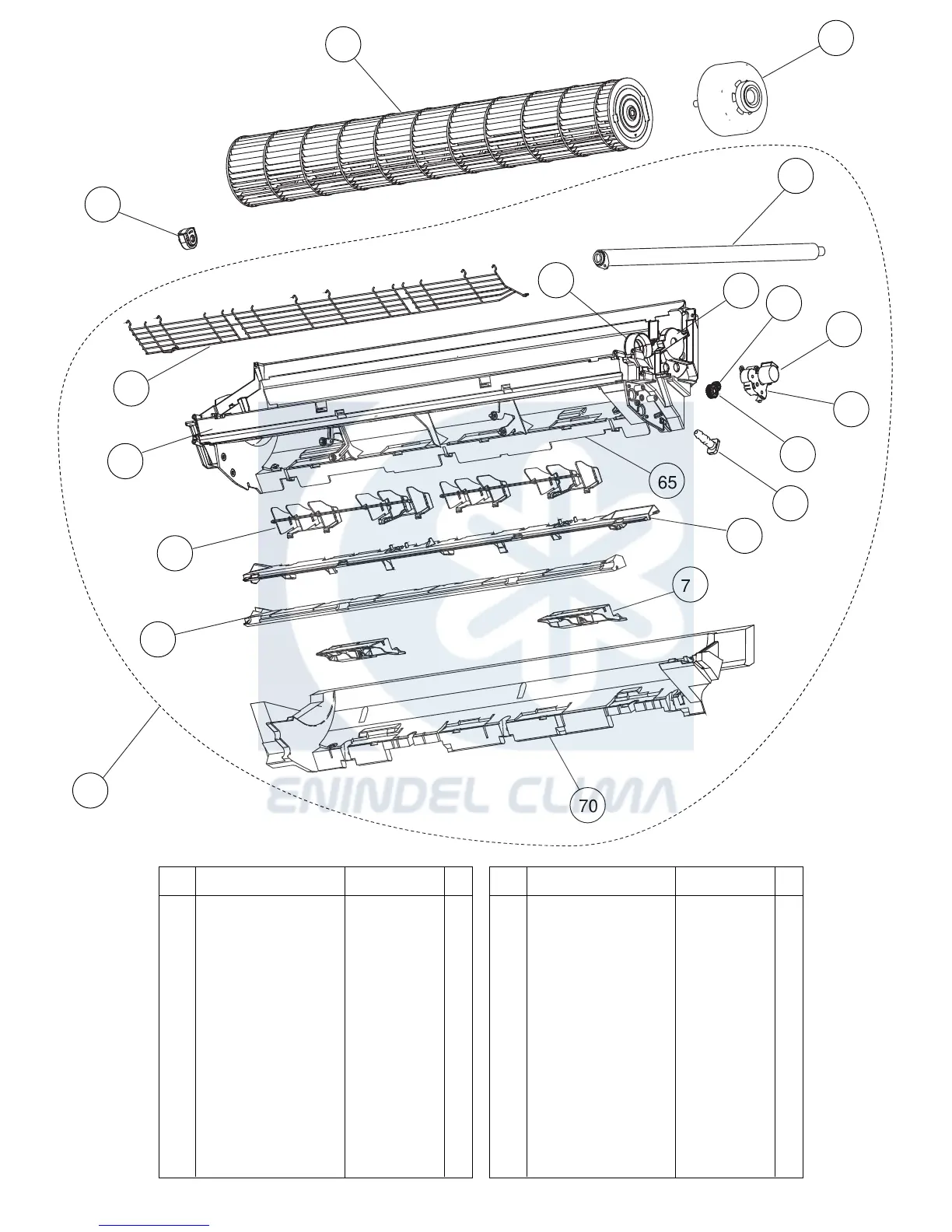

INDOOR UNIT
COMPACT WALL MOUNTED
ASHG07LUCA
ASHG09LUCA
ASHG12LUCA
ASHG14LUCA
Casing assy
