General ASHG14LUCA

5V
5V
5V
+
I C201
GP1UM261
R202
47
<1/4W>
C202
47/
10V
C203
0.1
<F>
SW201
KSHC611BT
CN201
7 - JB / PL I
L=230 #26 / 1061
A
A
A
A
1
2
3
4
5
6
7
2
1
3
VCC
OUT
GND
D201 SLR-343MC GREEN
D203 SLR-343MC GREEN
D202 SLR-343DC ORANGE

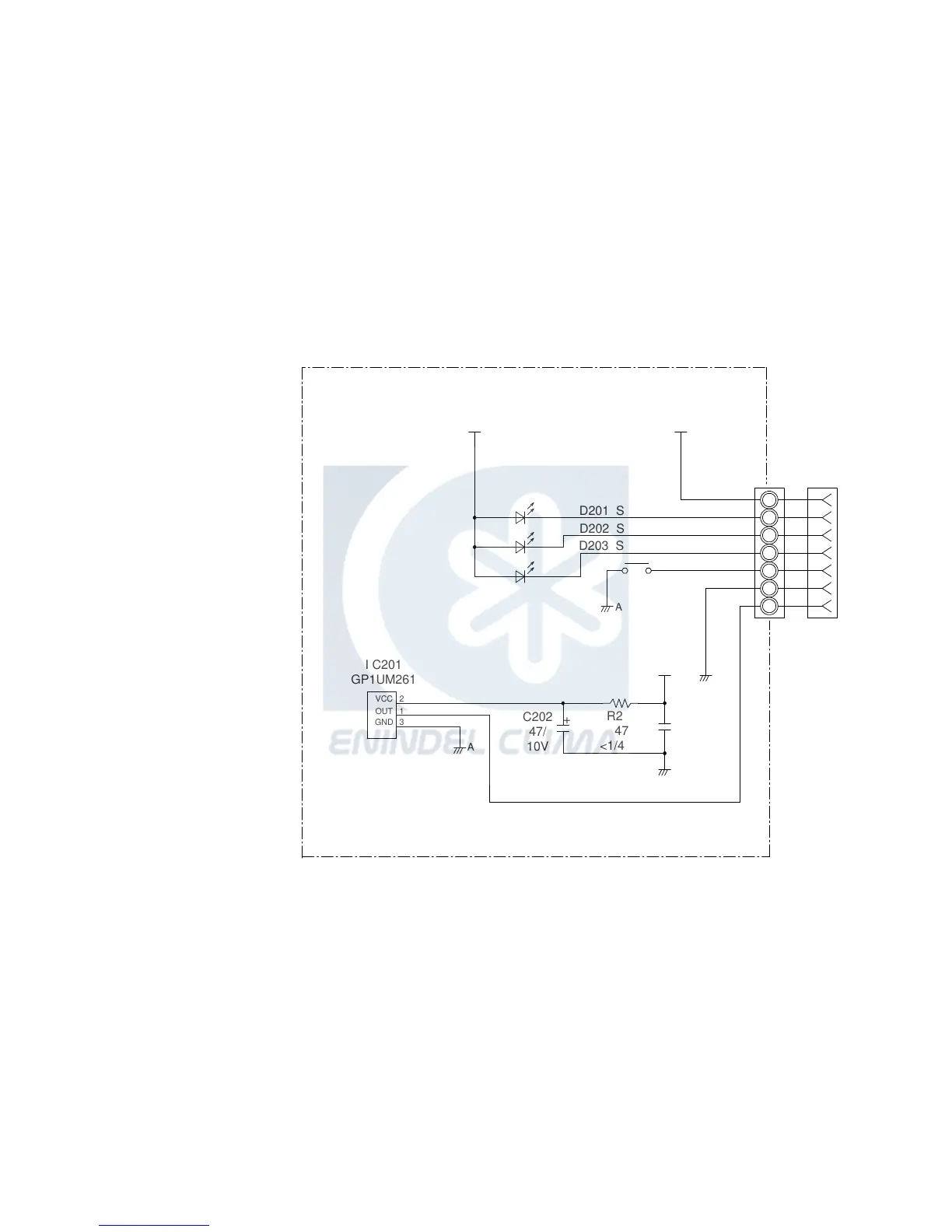

INDICATOR PCB
K07BJ-0900HSD-D0
INDOOR UNIT
COMPACT WALL MOUNTED
ASHG07LJCA
ASHG09LJCA
ASHG12LJCA
