PRODUCT OVERVIEW

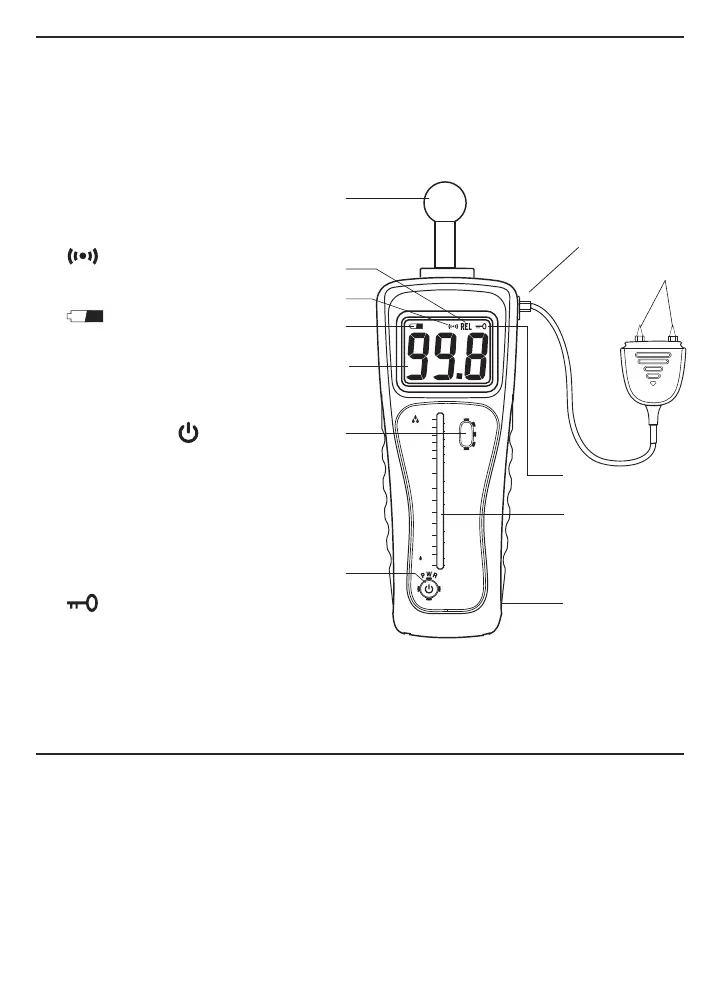

The figure shows all of the controls, indicators and physical features on the
front, bottom, top, back and right side of the MMD950. Familiarize yourself with
their positions and functions before moving on to the Setup Instructions.
A. Spherical sensor
B. Measurement mode indicator
(REL shown)
C. Indicates beeper is
enabled
D. Indicates battery is
weak
E. Jumbo LCD display
F. Five-function Mode button
G. Four-function button
H. Battery/spare pins
compartment cover (on back
of meter)
I. Tri-color 40-LED analog bar
graph
J. Indicates display is locked
(frozen)
K. Jack for remote probe
L. Remote probe with 10mm test pins (shown with protective cap off)
SETUP INSTRUCTIONS
INSTALL BATTERY
To open the battery compartment, turn the meter over and lift the tab on the
bottom of the battery compartment cover.
5
% WME
30
40
55
6
8
10
12
14
16
18
20
30
40
50
60
70
90
0
3
6
9
15
18
21
0
65
75
85
REL
P in Sense
S
E
T
C
A
L
C AL
%WME
R EL
B .L .
S ET
H
O
D
L
.
I
G
H
L
F
E
C
D
J
B
A
K
