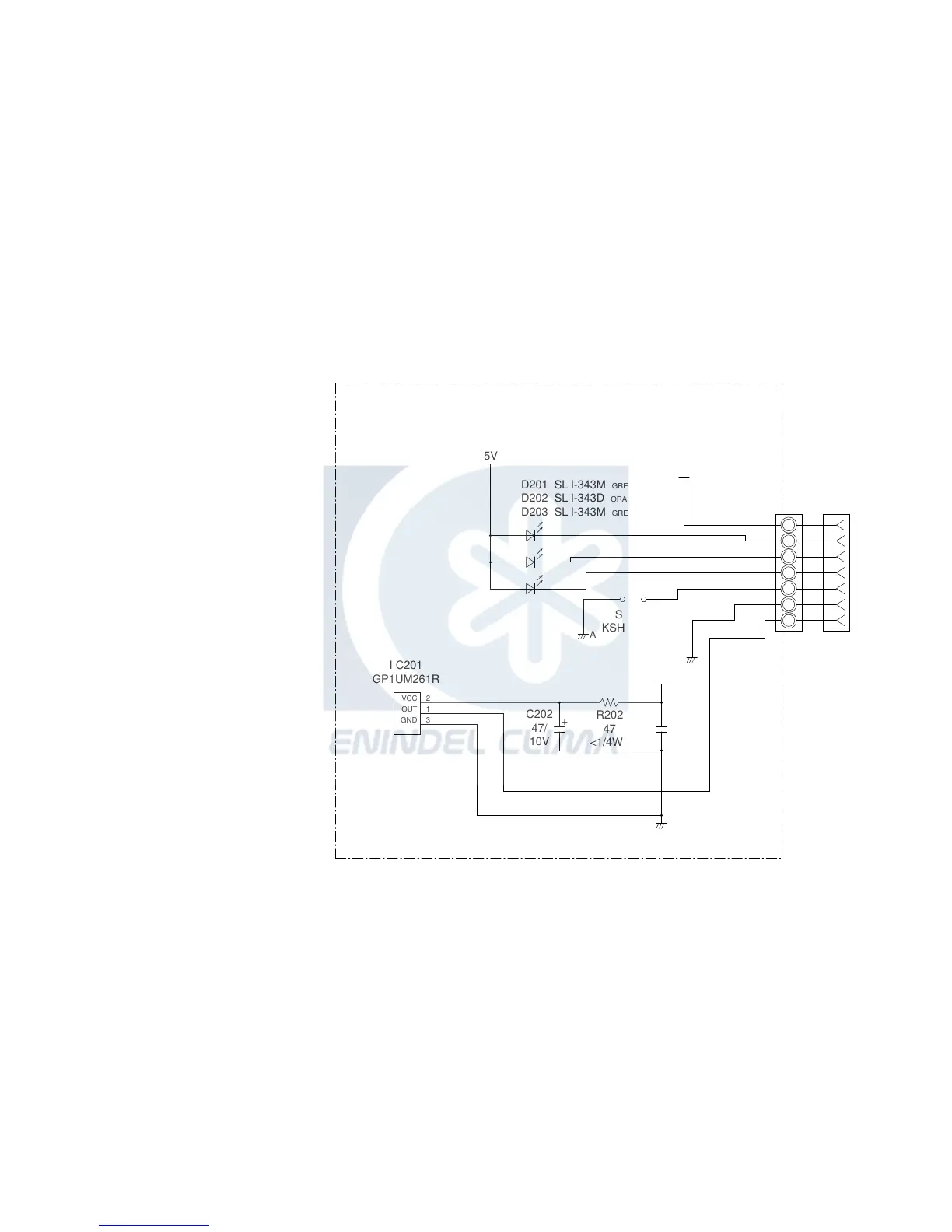

General UTG-UFGD-W

5V
5V
5V
A
A
A
1
2
3
4
5
6
7
SW201
KSHC611BT
I C201
GP1UM261R
+
R202
47
<1/4W>
C203
0.1
<B>
C202
47/
10V
D201 SL I-343M GREEN
D202 SL I-343D ORANGE
D203 SL I-343M GREEN
2
1
3
VCC
OUT
GND
CN201
S7B-PH-K-S
INDOOR UNIT
COMPACT WALL MOUNTED
ASHG07LMCA
ASHG09LMCA
ASHG12LMCA
ASHG14LMCA
INDICATO
R PCB
K12JZ-1200HSE-D0
