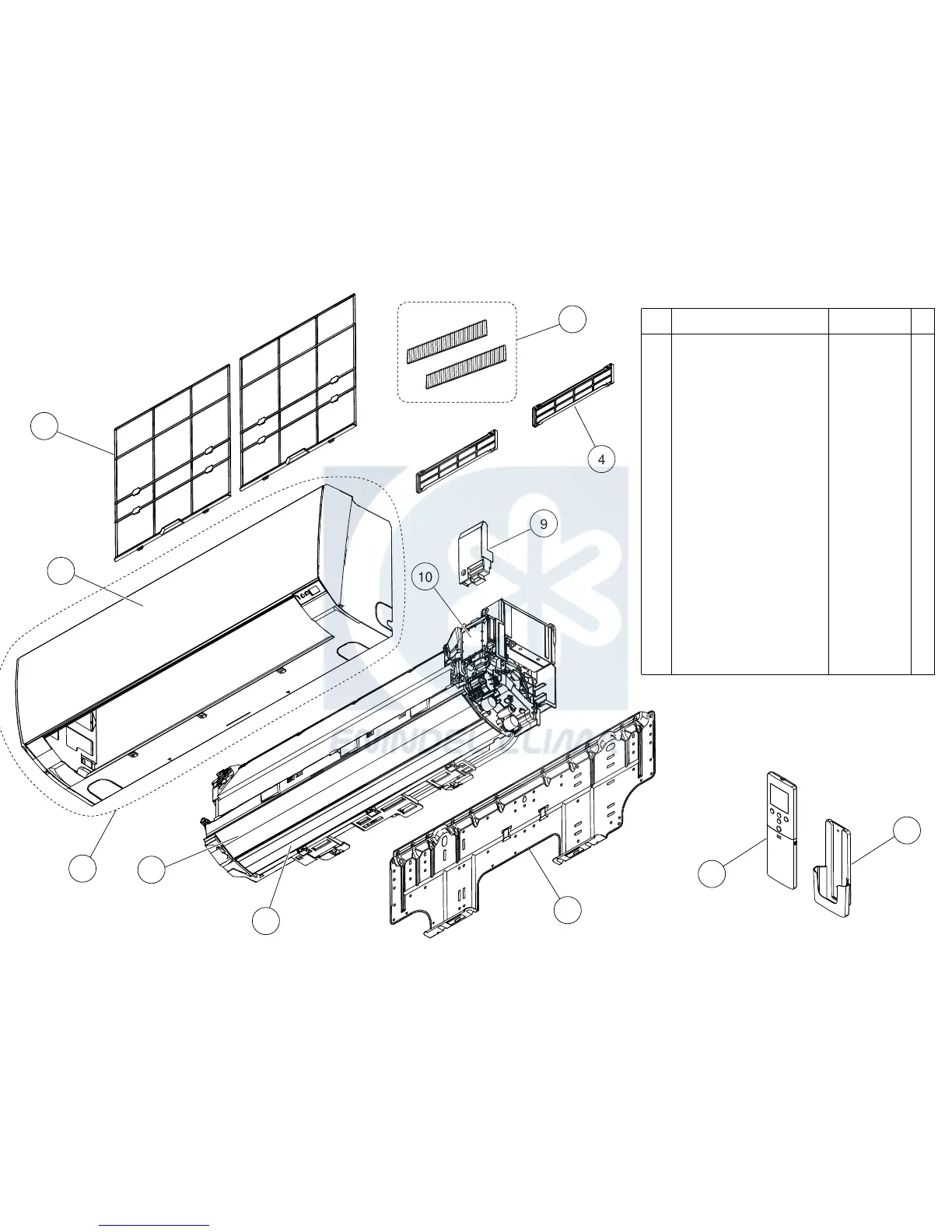

INDOOR UNIT
COMPACT WALL MOUNTED
ASHG07LMCA
ASHG09LMCA
ASHG12LMCA
ASHG14LMCA
2013.06.20 53
6
9
11
8
10
Intake Grille (
GENERAL
) 9333052014
7
Front Panel Sub Assy (GENERAL)
9332994018
3 Bracket Panel 9332882018
4
Wire Cover 9332894004
Wire Shield 9332906004
Electric Filter Holder 9332911008
5 Air Clean Filter Assy 9317250009
1 Remote Control 9319208008
2 Remote Control Holder 9318912005
Ref. Description Part number
Air Filter 9332875010
Louver 9332900002
12 Diffuser Assy 9332998009
