If the jumper is set and the adapter boots, CS141 will run this version as a rescue system based on the last firmware version:
Inside the About menu, the firmware version will add the word RESCUE to show its current operational mode.
Appendix – useful information and diagrams
Hardware layout und and connectors of the CS141

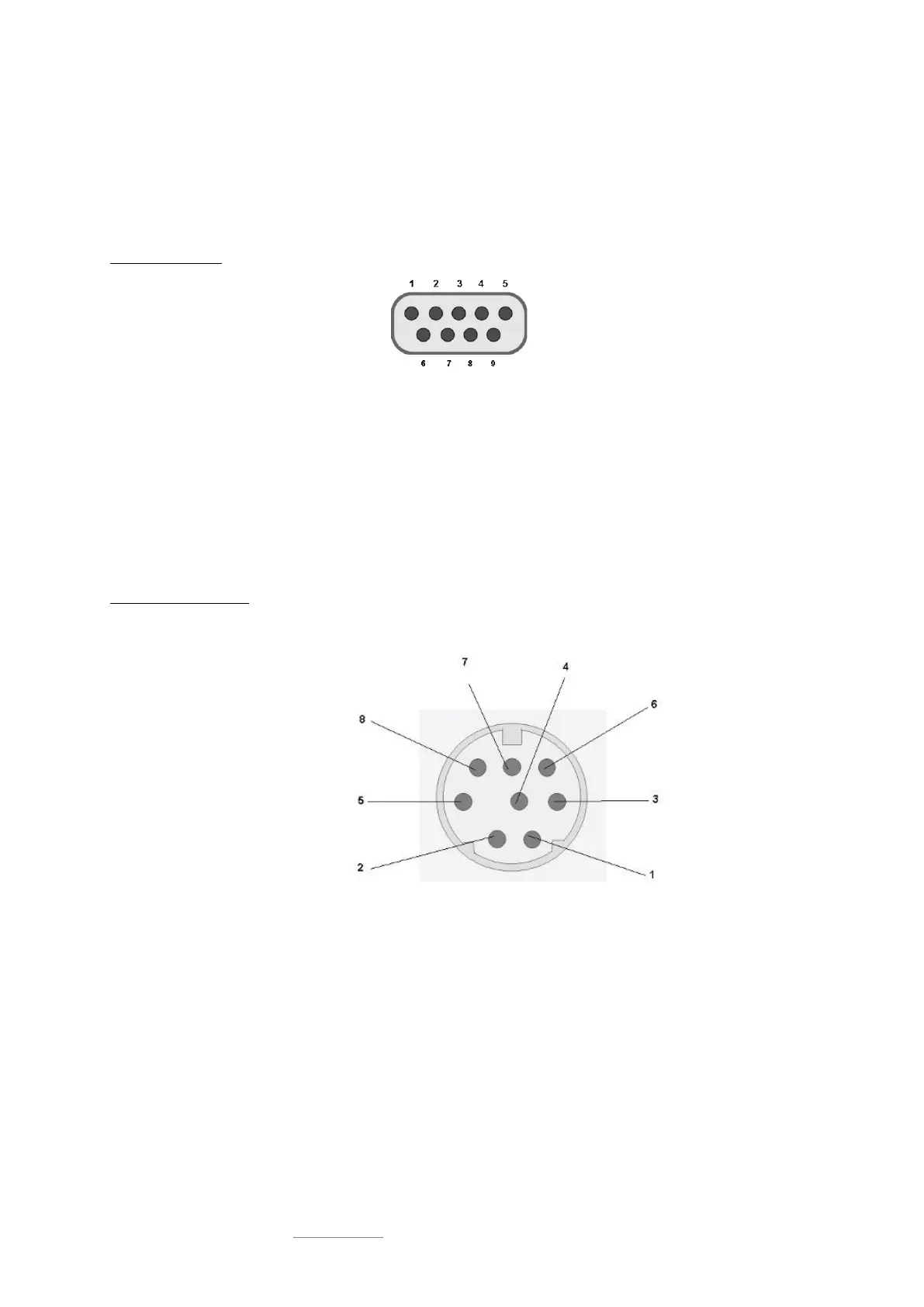

Interface description
External D-SUB 9-polig male
Pin1:
DCD
Pin6:
DSR
Pin2:
RxD
Pin7:
RTS
Pin3
TxD
Pin8:
CTS
Pin4
DTR
Pin9:
RI
Pin5
GND
Pin COM2 Mini-DIN 8 pol
Mini DIN 8 socket RS-232:
Pin1: -> DCD
Pin2: -> RxD
Pin3: -> TxD
Pin4: -> DTR
Pin5: -> DSR
Pin6: -> RTS
Pin7: -> CTS
Pin8: -> RI
Schirm -> GND
RS-485 (optional):
Pin1 → GND
Pin2: -> RS485/A
Pin3: -> RS485/B(-)

Generex CS141 Series Specifications

General

Brand	Generex
Model	CS141 Series
Category	Controller
Language	English
