- 6 -

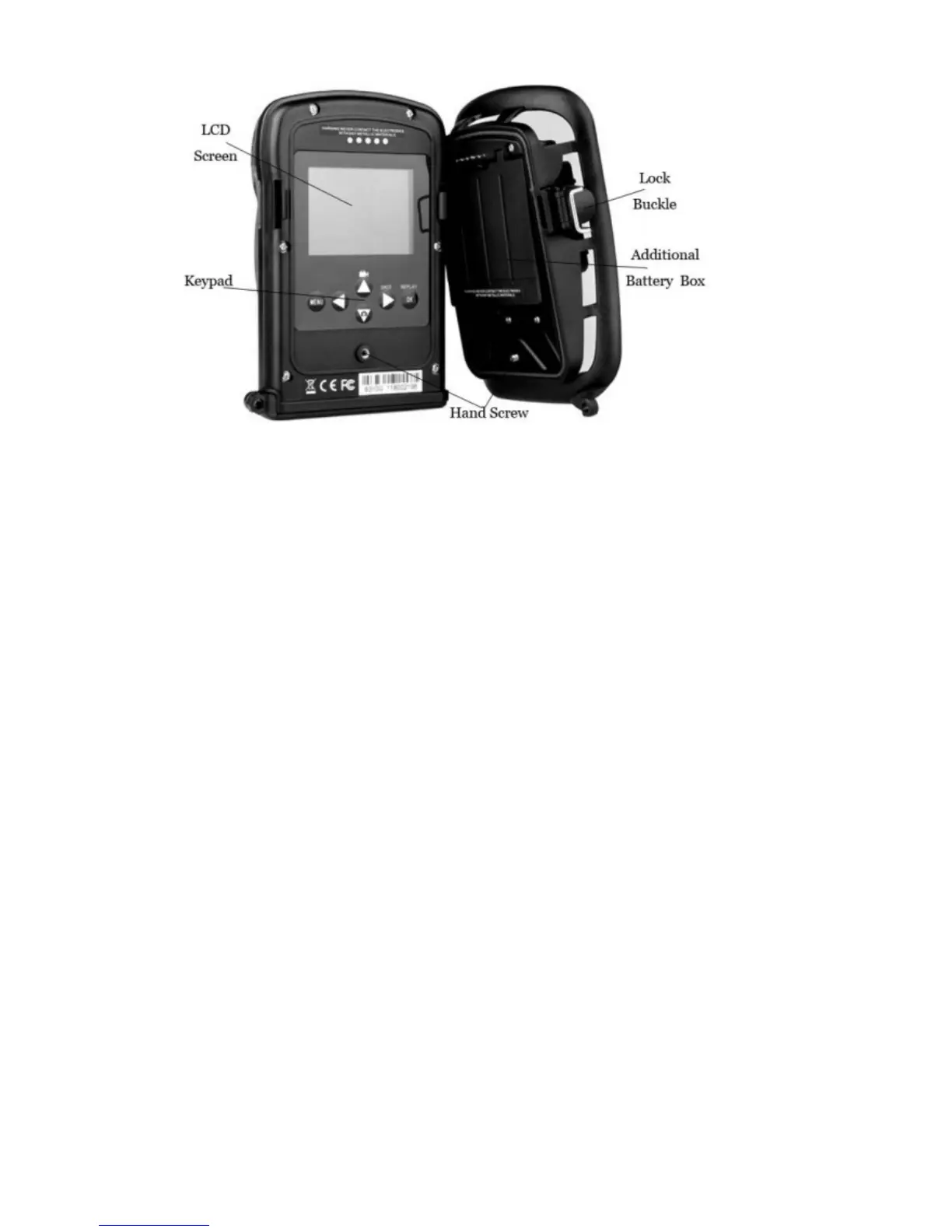

Figure 1.3: Back View

QUICK

QUICK START

START

2.1

2.1 Load

Load

Load Batteries

Batteries

Let us begin with loading the batteries. Please follow the

instructions below.

• Open the bottom cover by pulling down the lock hole.

• Push the cover of the battery compartment and release.

It will pop out.

• Install 4 AA batteries. Make sure the polarity matches

the sign on the cover.

• Replace the cover.

Alternatively the camera can run on an external 6V DC power

source (optional, user provided). When both external power and
