Instructions for gobo replacement
Please choose the suitable gobo dimensions of this fixture. (Appendix A)
3.Push GOBO & the spring ring out with the
fingers carefully. (*Caution: Avoid falling
the spring ring into the fixture.)
Rotating GOBO wheel
4.Insert the new GOBO and the spring ring (*Press the spring ring
tight with the appropriate tools in order to keep GOBO compact),
screw up the top cover.
DANGER!
Install the gobos with the device switched
off only. Unplug from mains before!
!
8

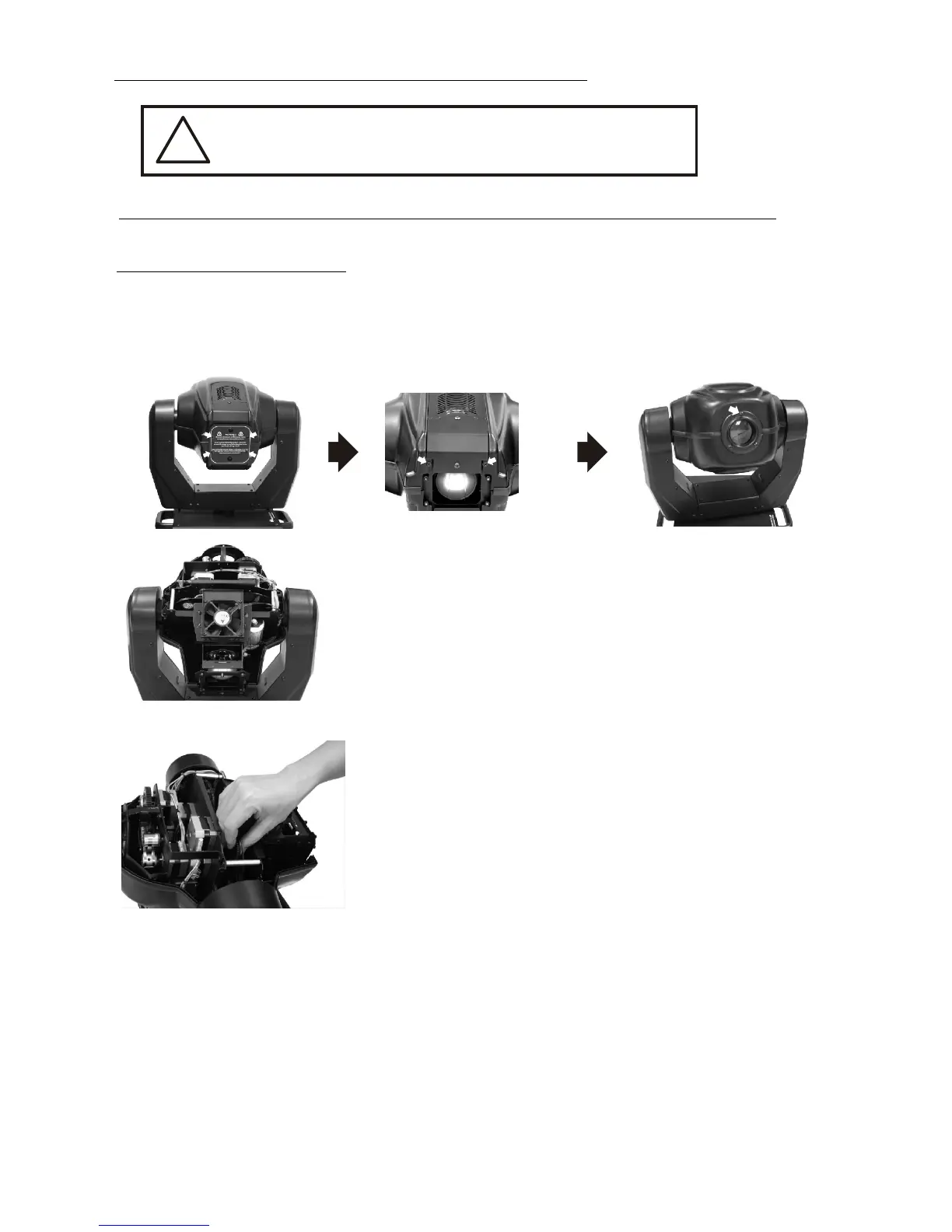

1.Loosen the arrow-indicated screws in order with appropriate tools.
2.Open the top cover.
