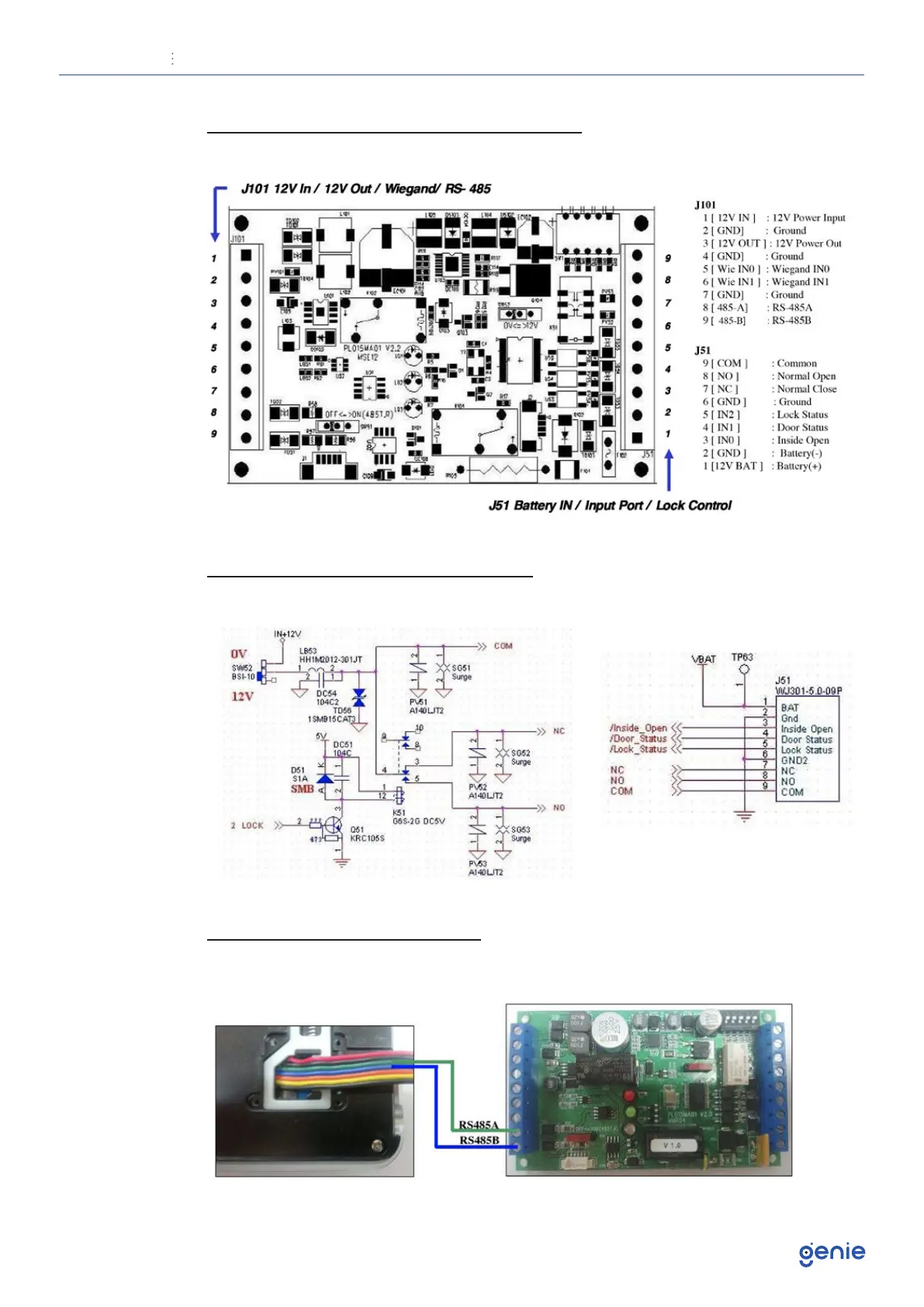

Genie BLC-015 - Board Features and Connector Details; J101 Connector Pinout; J51 Connector Pinout; Door Lock Interface Schematic

Genie BLC-015
7 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
User Manual Secure Relay Controller for Virdi Terminals
3
Board Feature & Connector Description
Schematic for Door Lock Interface
Connecting RS-485 Interface
RS-485 Interface
