Genius BRAIN 16 User Manual

732789_Quick_Rev.A 4 Brain 16
ENGLISH
4. OPERATING LOGICS
Description of the E logic: With the automated system stationary - An OPEN pulse opens the
gate and the following one will close it.
With the automated system moving - An OPEN pulse while opening
locks and reopens during closing.
Photocell engagement - During motion, the photocells reverse
Description of the EP logic: With the automated system stationary - An OPEN pulse opens the
gate and the following one will close it.
With the automated system moving - An OPEN pulse during motion
locks.
Photocell engagement - During motion, the photocells reverse
Description of the B logic: With the automated system stationary - Logic with two separate
commands: OPEN-A pulse opens; OPEN-B pulse closes
With the automated system moving - An OPEN-A pulse during closing
opens..
Photocell engagement - During motion, the photocells reverse
Description of the C logic: With the automated system stationary - logic with two separate
commands: OPEN-A maintained opens; OPEN-B maintained closes
With the automated system moving - An OPEN-A command during
closing opens, an OPEN-B command during opening stop.
Photocell engagement - During motion, the photocells reverse
Description of the A logic: With the automated system stationary - an OPEN pulse opens the
gate and, when the pause time elapses, closes it automatically.
With the automated system moving - An OPEN pulse during opening
is ignored, during the pause it resets and during closing it reopens.
Photocell engagement - The closing photocells reset the pause.
During motion, the photocells reverse
Description of the AP logic:With the automated system stationary - an OPEN pulse opens the
gate and, when the pause time elapses, closes it automatically.
With the automated system moving - An OPEN pulse during the pause
locks, during opening it locks and during closing it reverses.
Photocell engagement - The closing photocells reset the pause.
During motion, the photocells reverse
BRAIN 16
CH1
LOCK
FSWOP
OP
+24V
OP-B
OP-A
LAMPCOM
OP
- M1 -
PE
ON
4
F
19
-
17 1816
TX
FSW
-
FSWCL
FSW
STOP
OP-B
OP-A
- M2 -
CL
1
COM
LN
1
12
1514
1312
CL
11109
876
CL
OP
5
43
2
BRAIN 16
ON
4
2
1142
3
1
12109876531
ON
TH1
DL5
DL4
DL2
DL8
DL6
DL3
DL1
DS1
STOP
F1
F 2
ON
4
2
11
42
3
1
12109
876
5
3
1
ON
SW1
SW2
DS2
DS2
ON
OFF

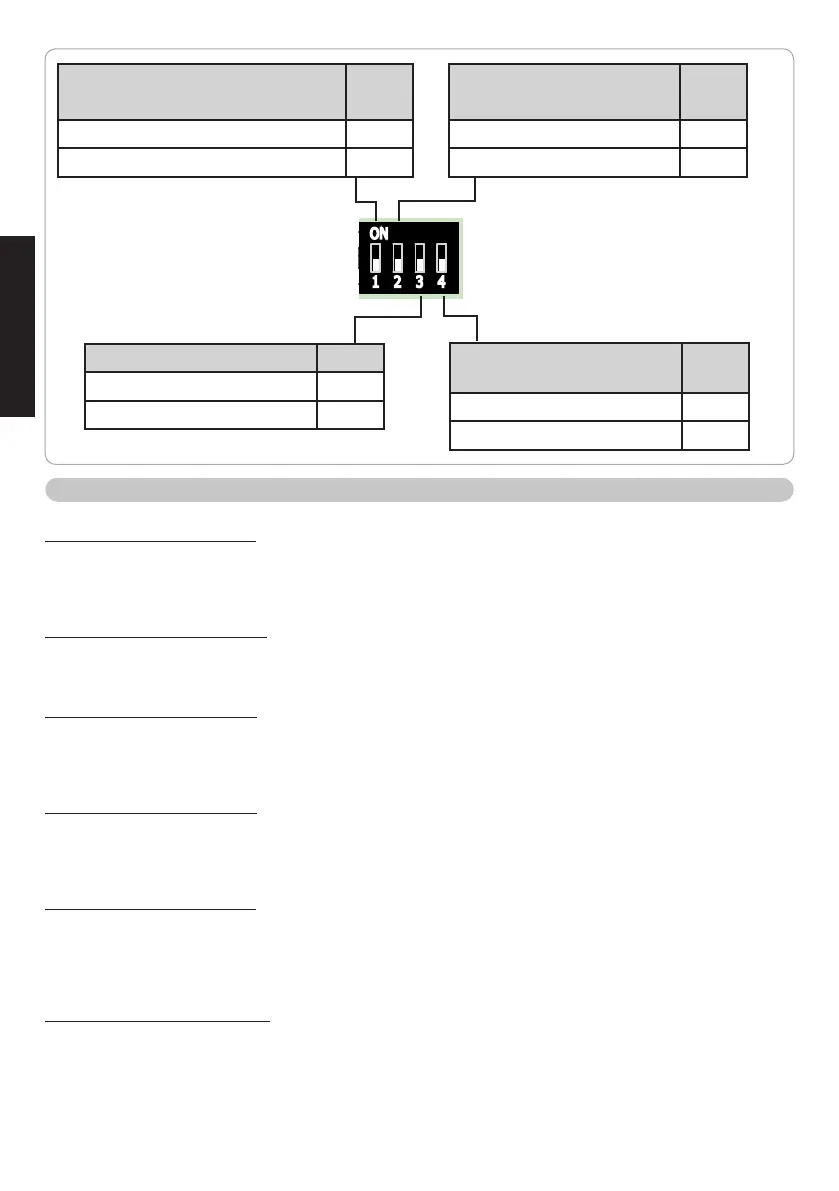

OPENING LEAF DELAY M2 WITH
RESPECT TO M1
SW1
2 seconds ON
0 OFF
CLOSING PHOTOCELLS
LOGIC
SW2
Reverses on release ON
Reverses immediately OFF
FAIL SAFE SW3
Yes ON
No OFF
REVERSE STROKE +
OVER-PUSHING STROKE
SW4
Yes ON
No OFF
