AUTOMATED SYSTEM MISTRAL
2. DESCRIPTION
The MISTRAL automated system for swing gates is an electro-mechanical non-reversing operator that transmits motion to the leaf via
a worm screw system.
The operator is available in many versions covering therefore every installation requirement. The “LS” versions are equipped with
opening and closing limit switches.
The non-reversing system ensures the leaf is mechanically locked when the motor is not operating. A convenient and safe release
system with customised key makes it possible to manually move the leaf in the event of a malfunction or of a power failure.
ATTENTION:
• The correct operation and the declared specifications only apply if GENIUS accessories and safety devices are used.
• As no mechanical clutch device is fitted, a control unit with adjustable electronic clutch is required to ensure the necessary anti-
crushing safety.
• The MISTRAL automated system was designed and built for controlling vehicle access. Avoid any other use whatever.

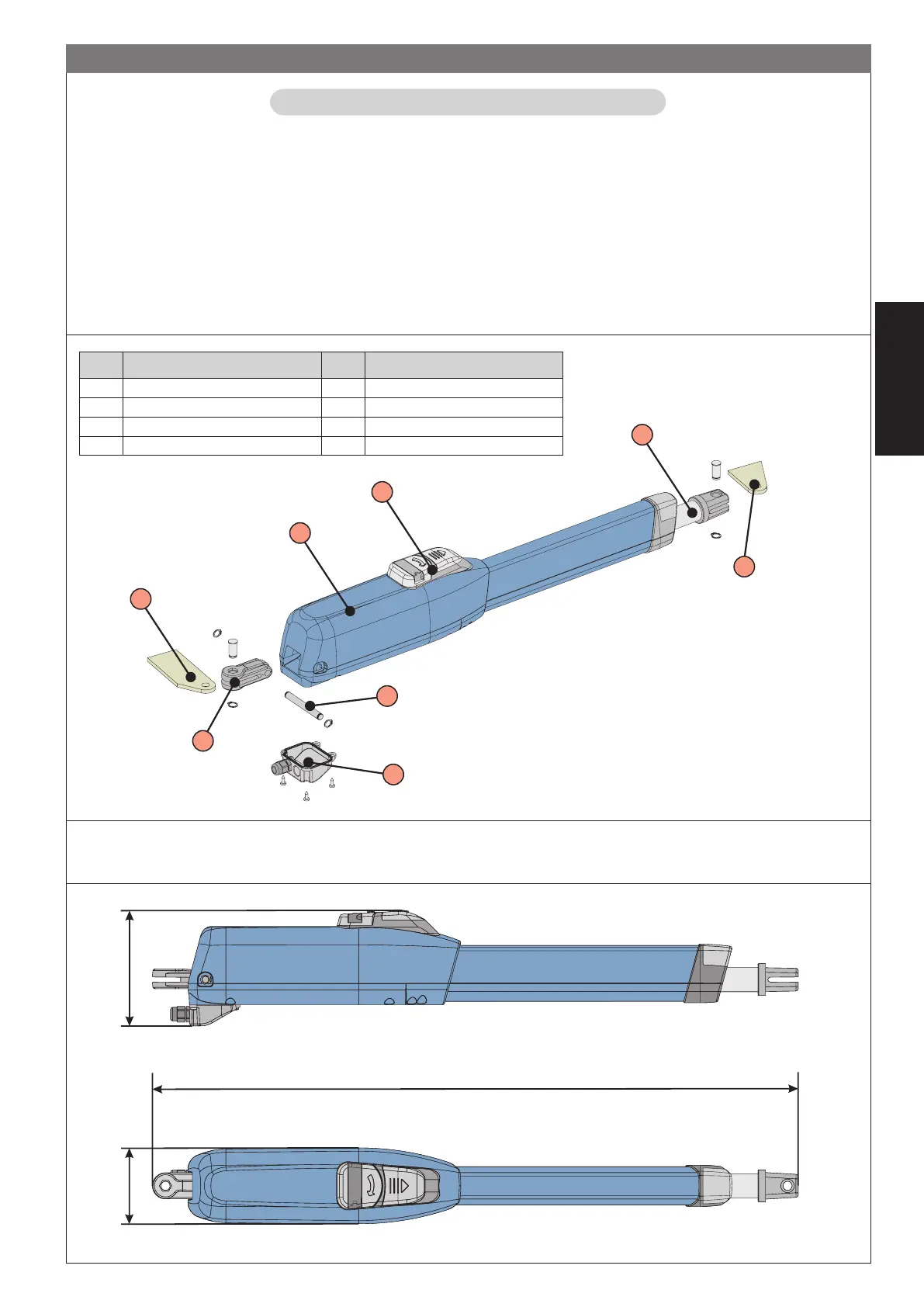

2.1. Dimensions
.soP noitpircseD .soP noitpircseD
1rotomraeG5tekcarbraeR
2ecivedesaeleR6gnittifraeR
3doR7nipgnittifraeR
4tekcarbtnorF8revocdraoblanimreT
Fig. 1
Fig. 2
