Service Guide SP-HF800A
Version : 1.0 Page 14 of 15
Chapter 6. Schematic Diagram

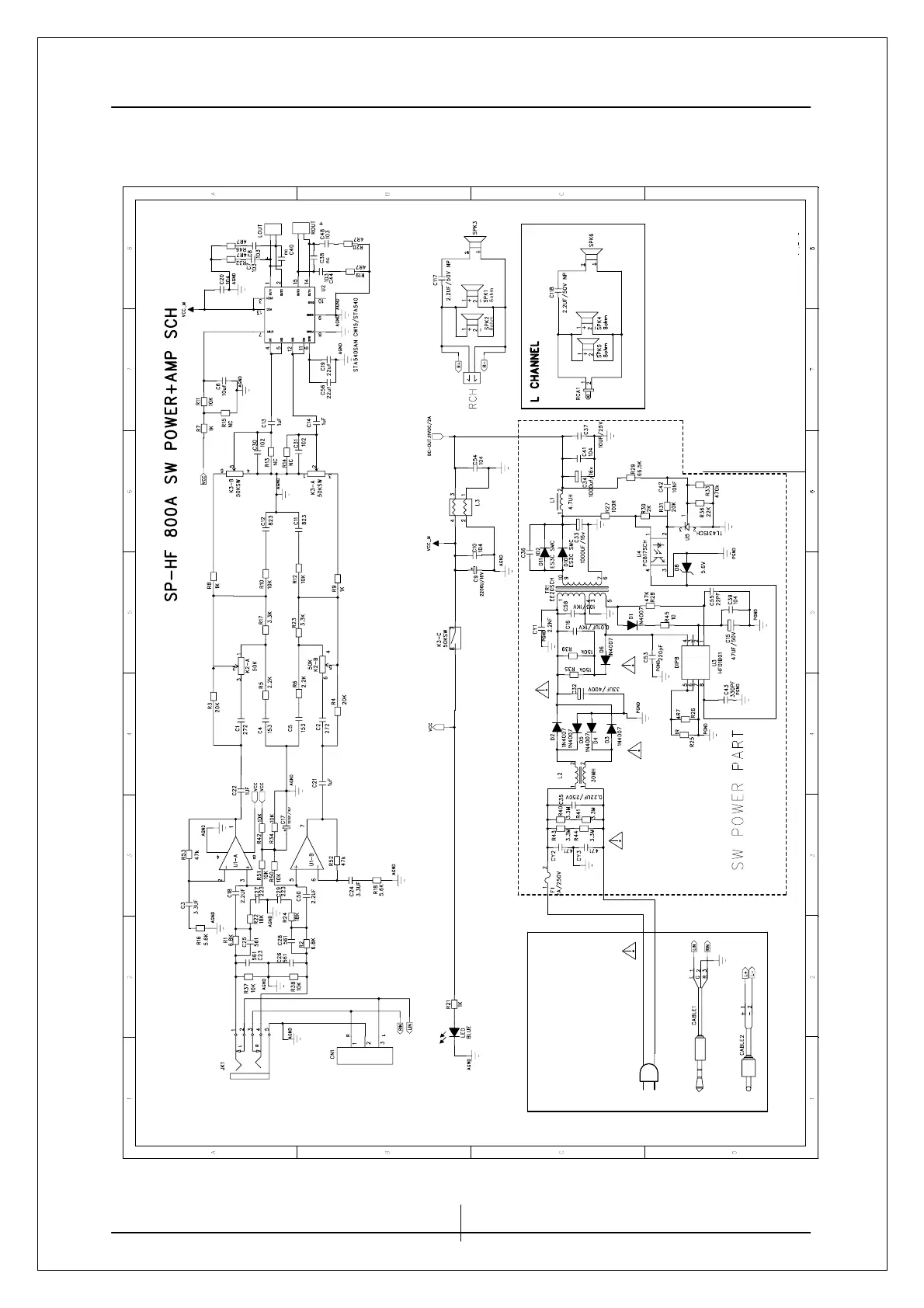

SP-HF 800A SW POWER+AMP SCH A.1 20110511.sch-1 - Thu Jun 16 11:15:10 2011
