GenMark Dx ePlex - Page 10

GNMK-IMC-6072-A

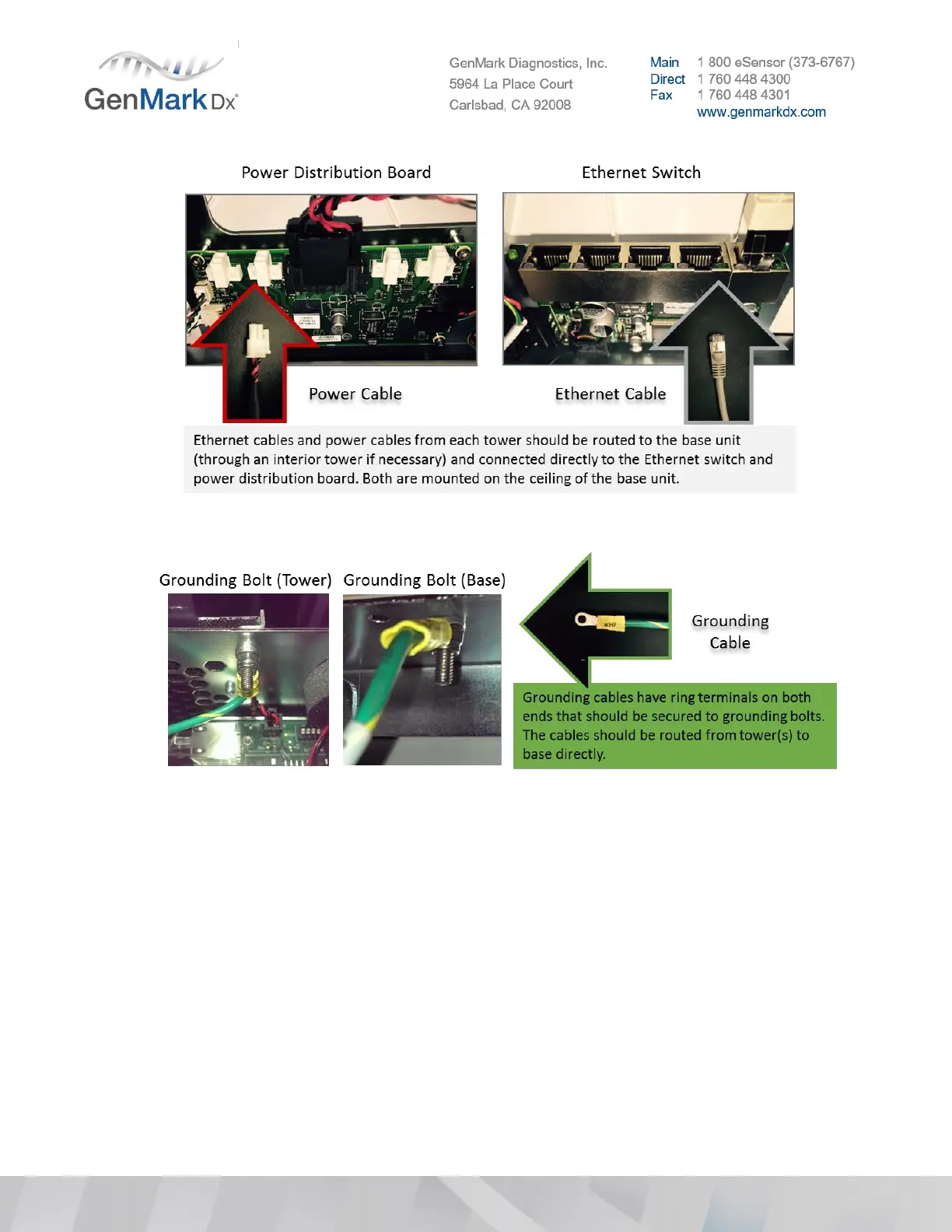

Figure 10 Power and Ethernet Cable
Figure 11 Connecting Base and Towers
Note: There are two grounding bolts mounted horizontally to the roof of the Base, one on each side. Each
Tower has one grounding bolt mounted on its rear side. Grounding cables should be routed directly from
each Tower to the Base.
