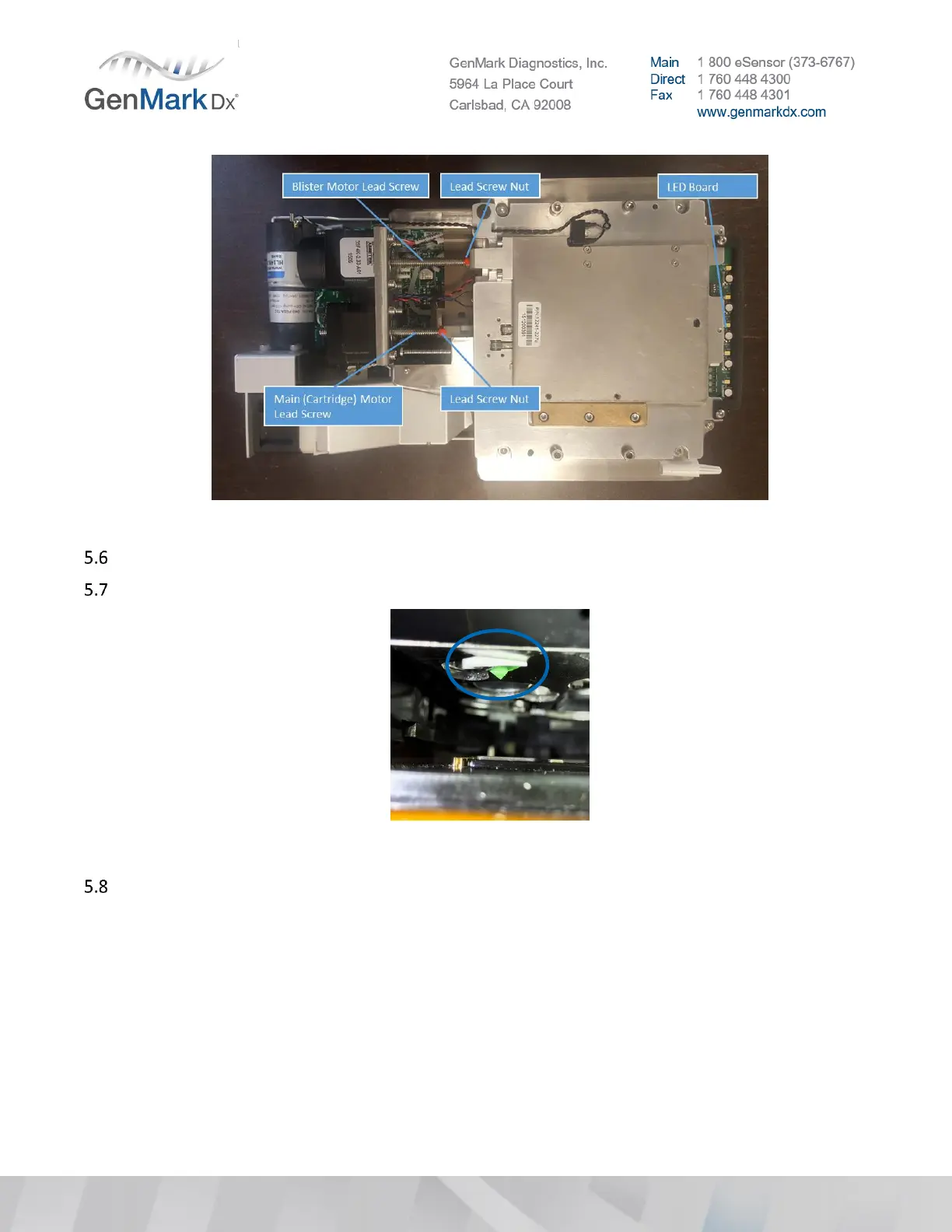

Figure 17 Bay Lead Screw Nuts
Clean the inside of each bay using compressed air.
Check all bays for debris and ‘chads’ inside the bay. Remove if found.
Figure 18 Label ‘chad’ stuck on top of bay
Check the high-density (HD) connector on each Bay to ensure they are seated properly. Press down
on both sides to tighten if necessary. Ensure HD connectors are fully pressed into place with no gold
showing. Note: It may be necessary to work the HD connector by pressing down with even pressure
in the back, followed by even pressure in the front, repetitive times, or until the gold contacts are no
longer visible. See Figure 19 and 21 below.
