CONTROL FUNCTIONS
① 120-Volt, 20-Amp Duplex Outlet (NEMA 5-20R):
The outlet is capable of carrying a maximum of 20
amps.
② USB Duplex: 5V DC that come in 1 amps and2.1
amps.
③ Reset: If the inverter is overloaded, the reset
breaker will trip. The engine will continue to run, but
there will be no output from the inverter. Unplug the
devices and reduce the load. Push in the reset
breaker to reset it.
④ Low Idle: When turned to the ON position, the
engine will sense the load needed and run at a slower
RPM to save fuel.
⑤ Ground Terminal: The ground terminal is used to
externally ground the inverter.
⑥ CO Alarm: Flashing red light: dangerous levels of
carbon monoxide gas have built up leave immediately
until area has aired out. Move generator to well-
ventilated area before operation. Flashing yellow light:
carbon monoxide sensor malfunction. Sensor needs
service.
⑦ AC Breaker: If the inverter is overloaded, the reset
breaker will trip to block current.

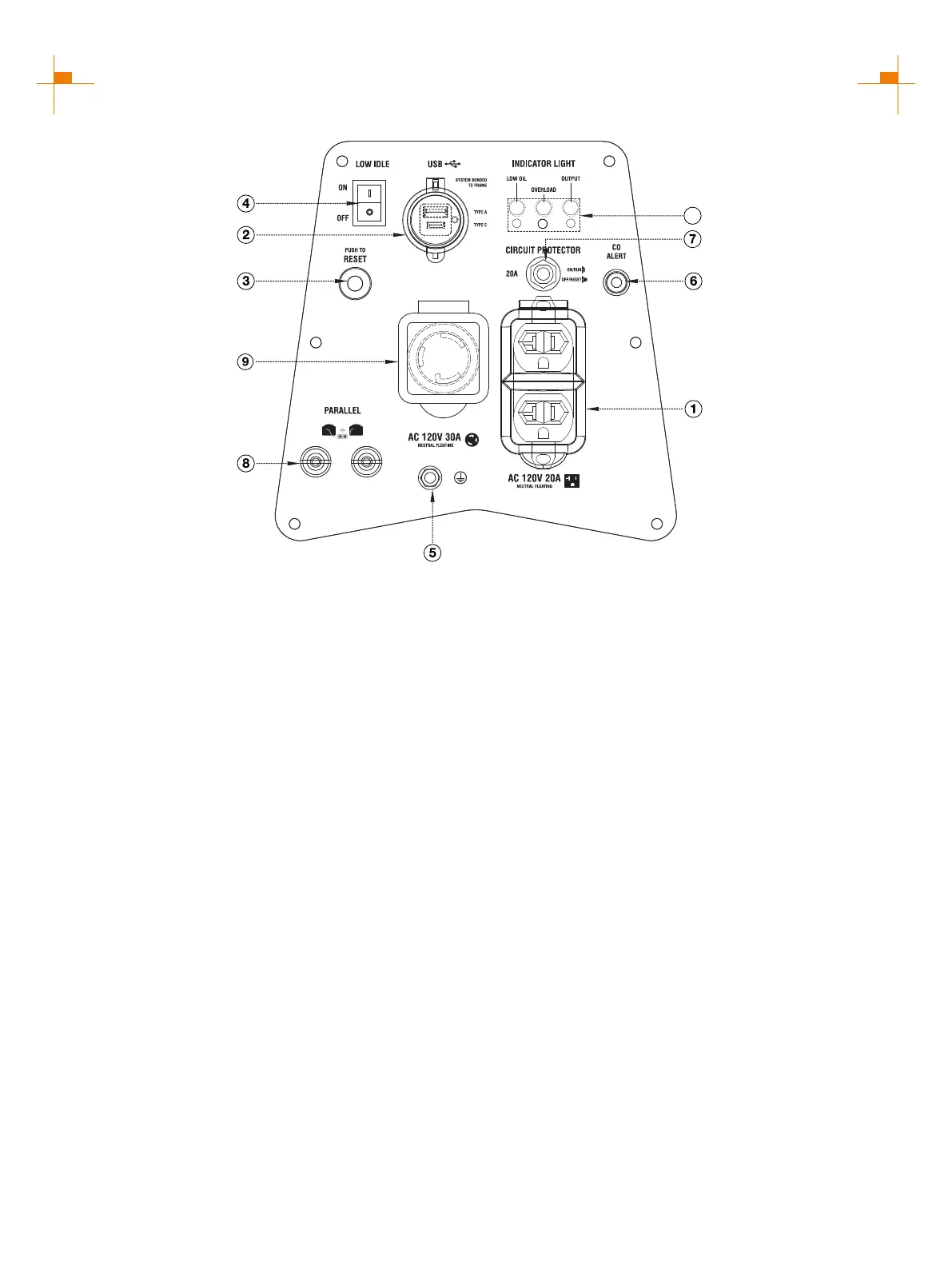

CONTROL PANEL FEATURES GM2800iA/GM3500iA
⑧ Parallel Connectors: To increase AC power output,
the connector sockets are used to connect the two same
type generator with special paralleling cords. The
connector sockets is only used to the communication
between the inverters, they can not used for AC power
output. The special paralleling cords shall be purchase
separately, and they shall be approved by certification
body.
⑨ 120-Volt, 30-Amp Outlet (L5-30): The outlet is
capable of carrying a maximum of 30 amps.
⑩ Indicator Light: Red light (LOW OIL) means that the
amount of oil is too low, red light (OVERLOAD) means
that the machine overload, green light (POWER) means
normal operation. Frequency display, Load power
display.
